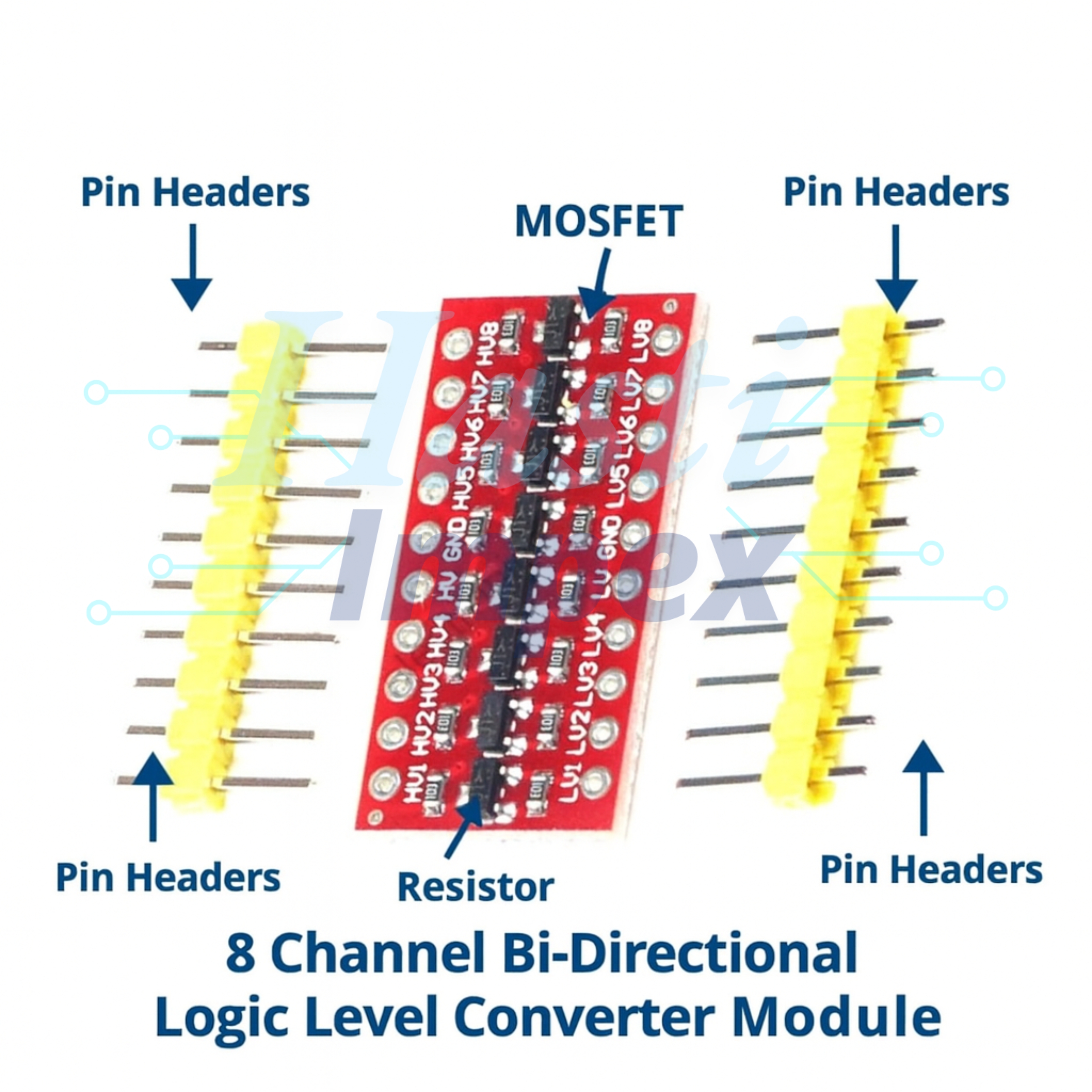

8 Channel Bi-Directional Logic Level Converter Module
Description:
8 Channel Bi-Directional Logic Level Converter Module is a versatile and essential tool used in electronic projects to interface circuits that operate at different voltage levels. This module allows bi-directional voltage translation between different logic levels, making it ideal for communication between devices that use different logic voltages, such as microcontrollers, sensors, and other peripherals. This functionality is critical in projects involving components with different voltage standards (e.g., 3.3V and 5V systems), ensuring that signals are correctly interpreted and transmitted between devices.
Features:
1. 8 Bi-Directional Channels
2. Wide Voltage Range Support
3. Supports I2C Communication
4. Uses MOSFET-Based Technology
5. Compact and Easy to Integrate
6. Automated Voltage Detection
7. No External Power Supply Required
8. Compatible with Various Communication Protocols
9. Wide Application Range
Specifications:
| Channels | 8 bi-directional channels |
| Input Voltage Range | 1.8V to 5.5V |
| Output Voltage Range | 1.8V to 5.5V |
| Support Protocols | I2C |
| Maximum Speed: | 400kHz |
| Package | SMD components |
| Power Supply | logic conversion |
