5A Constant Current / Voltage LED Drives Lithium Battery Charging Module
Description:
The 5A Constant Current/Voltage LED Driver Lithium Battery Charging Module is a versatile tool primarily used for charging lithium batteries and powering LED lights. Here's a typical usage description:
-
Power Source: Connect the charging module to a suitable power source. This could be a DC power supply, a solar panel setup, or any other power source capable of providing the required voltage and current.
-

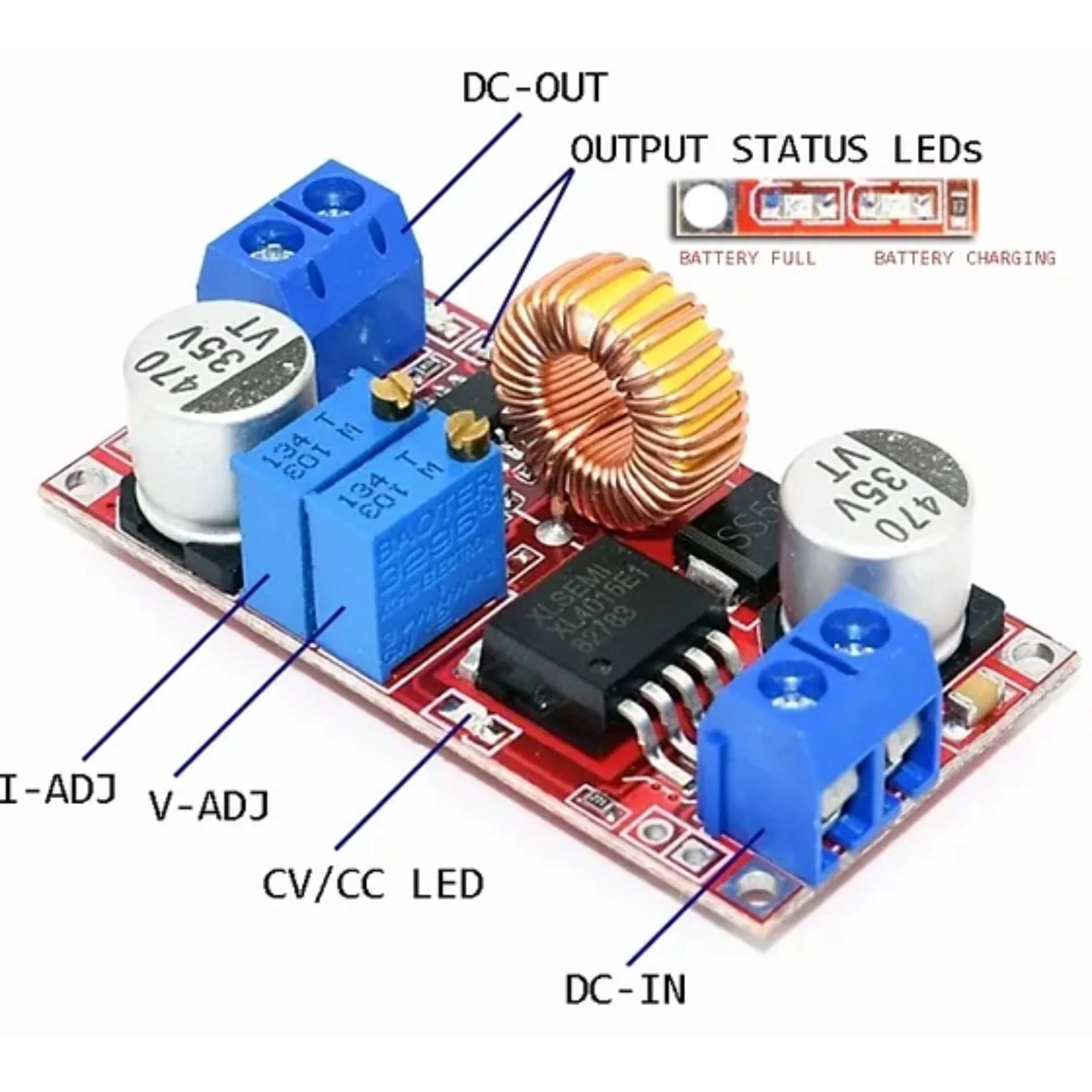

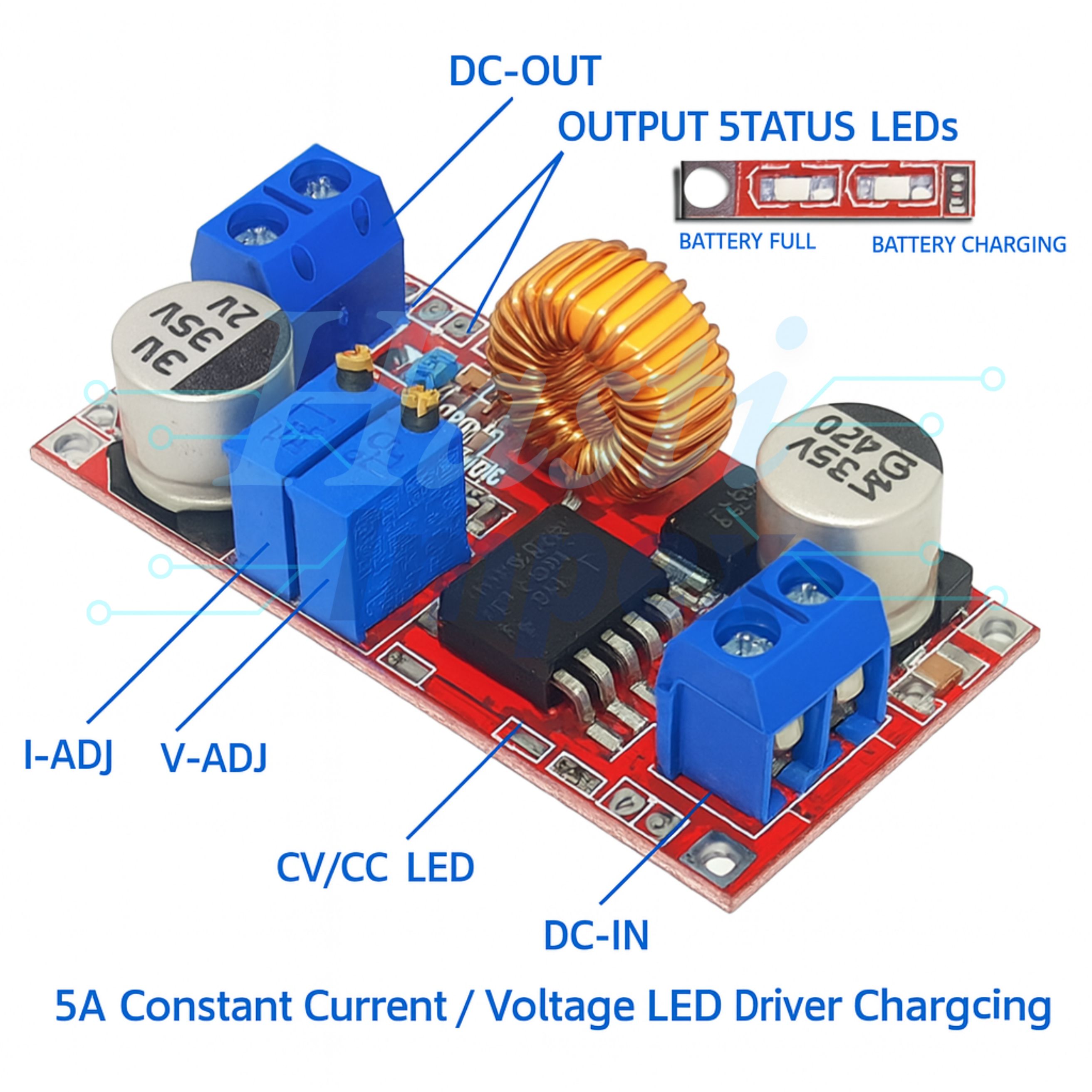

Input/Output Connections: The module typically features input and output terminals. Connect the positive and negative terminals of your power source to the corresponding input terminals on the module. Similarly, connect the positive and negative terminals of your lithium battery or LED load to the corresponding output terminals.
-
Constant Current/Voltage Mode Selection: The module usually offers the flexibility to operate in constant current (CC) or constant voltage (CV) mode. You can typically select the desired mode using a switch or jumper on the module.
-
Charging Lithium Batteries: If you're using the module to charge a lithium battery, ensure that the module is set to the appropriate charging voltage and current levels. Lithium batteries require specific charging parameters to ensure safe and efficient charging. Refer to the specifications of your battery to determine the correct settings.
-
LED Lighting: If you're using the module to power LED lights, ensure that the output voltage and current are compatible with the requirements of your LED load. LED lights typically operate at specific voltage and current levels, and exceeding these values can damage the LEDs.
-
Monitoring: Some modules may feature LED indicators or display screens to provide information about the charging status or output voltage/current levels. Monitor these indicators to ensure that the module is operating as expected.
-
Safety Precautions: Handle the module and connected components with care, and follow safety guidelines to prevent electric shock or damage to the equipment. Ensure that the module is installed in a well-ventilated area and is not exposed to moisture or extreme temperatures.
-
Overcurrent/Overvoltage Protection: Some modules may include built-in protection features to safeguard against overcurrent or overvoltage conditions. These protections help prevent damage to the module and connected devices in case of unexpected fluctuations in voltage or current.
By following these steps and guidelines, you can effectively use the 5A Constant Current/Voltage LED Driver Lithium Battery Charging Module to charge lithium batteries or power LED lights with efficiency and safety. Always refer to the module's user manual and specifications for detailed instructions specific to your model.
