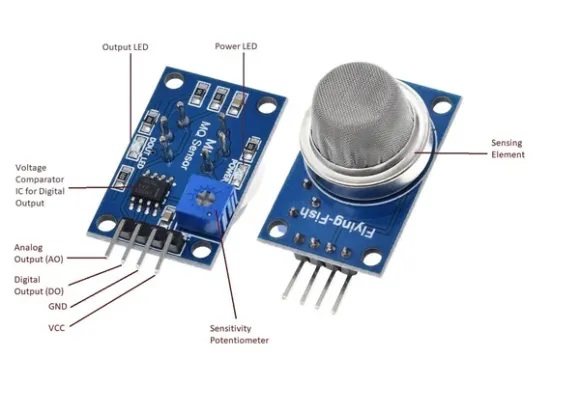

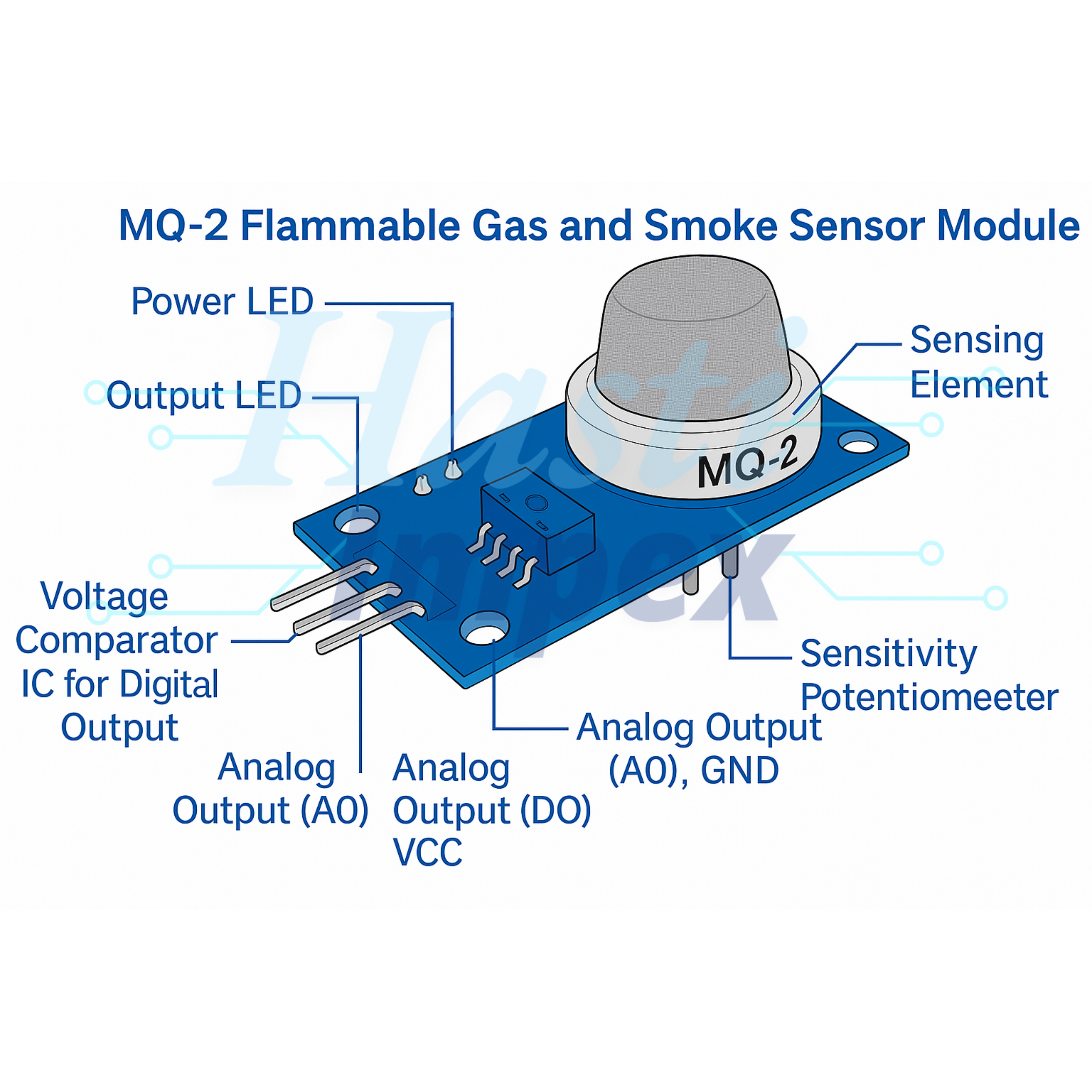

MQ2 Flammable Gas and Smoke Sensor Module
Description:
The MQ2 Flammable Gas and Smoke Sensor Module is a gas sensor module commonly used to detect flammable gases and smoke in the surrounding environment. Here's how it's typically used:
-
Gas Detection: The primary function of the MQ2 sensor module is to detect the presence of various gases, including liquefied petroleum gas (LPG), butane, propane, methane, alcohol, hydrogen, and smoke.
-
Sensitivity: The module is highly sensitive to the target gases and can detect even small concentrations in the air. When the concentration of the target gas exceeds a certain threshold, the sensor triggers an output signal indicating the presence of gas.
-
Analog Output: The MQ2 sensor module provides an analog output voltage that varies with the concentration of the detected gas. This analog signal can be read by a microcontroller or an analog-to-digital converter (ADC) for further processing and analysis.
-
Digital Output: Some versions of the MQ2 sensor module also provide a digital output signal, which indicates the presence or absence of gas based on a predefined threshold level. This digital signal simplifies interfacing with microcontrollers and other digital systems.
-
Calibration: The module may require calibration to ensure accurate detection of target gases. Calibration involves exposing the sensor to known concentrations of gases and adjusting its sensitivity accordingly.
-
Integration: The MQ2 sensor module can be easily integrated into various electronic projects and systems. It typically operates on low voltage and can be powered by a simple DC power supply or a battery.
-
Applications: The MQ2 sensor module finds applications in gas leakage detection systems, fire detection systems, safety alarms, air quality monitoring devices, and industrial gas detection equipment.
-
Precautions: It's important to note that while the MQ2 sensor module is capable of detecting various gases, it may not provide specific identification of the detected gases. Additionally, environmental factors such as humidity and temperature can affect sensor performance and should be considered during use.
Overall, the MQ2 Flammable Gas and Smoke Sensor Module is a versatile and cost-effective solution for detecting flammable gases and smoke, making it valuable for enhancing safety and security in various applications.
