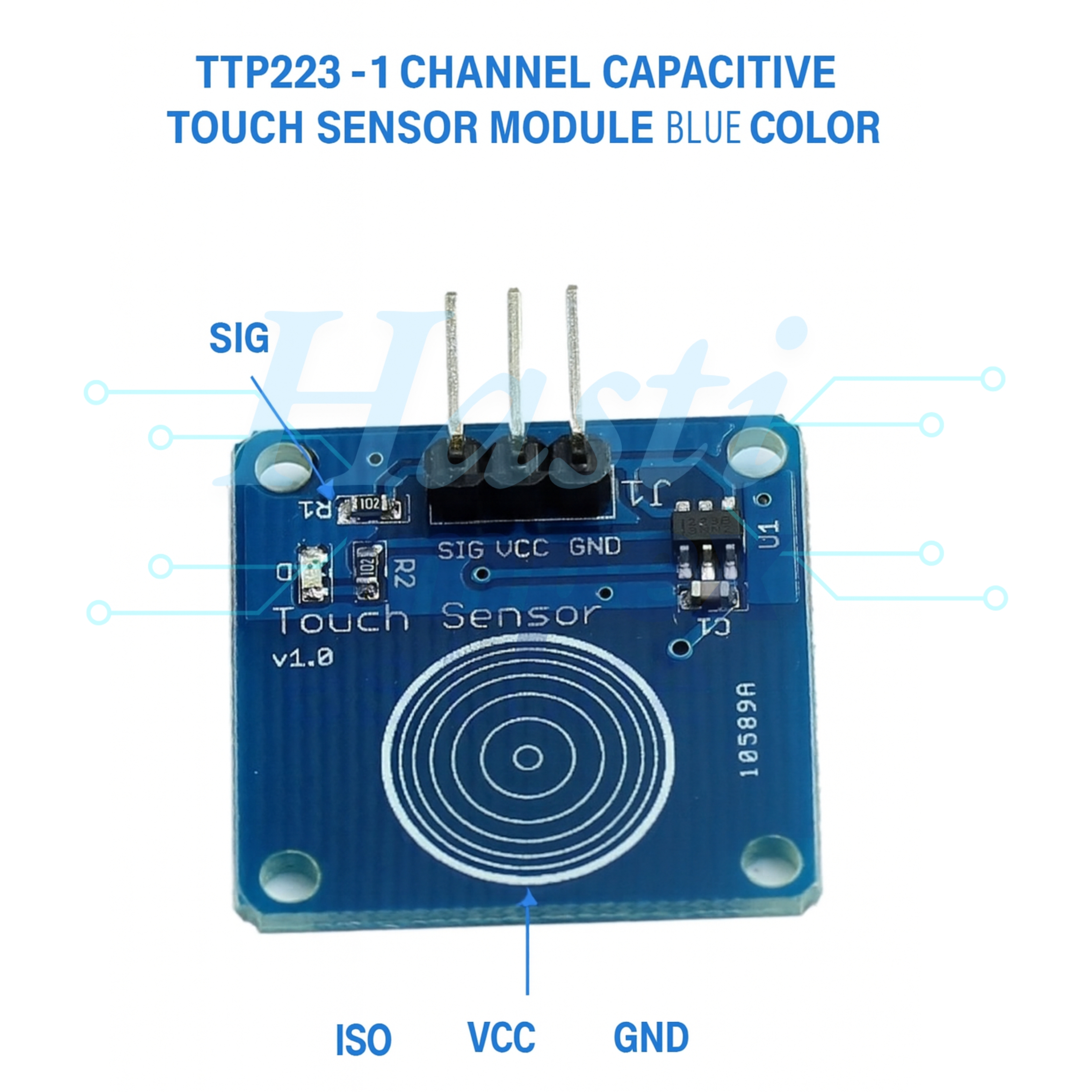

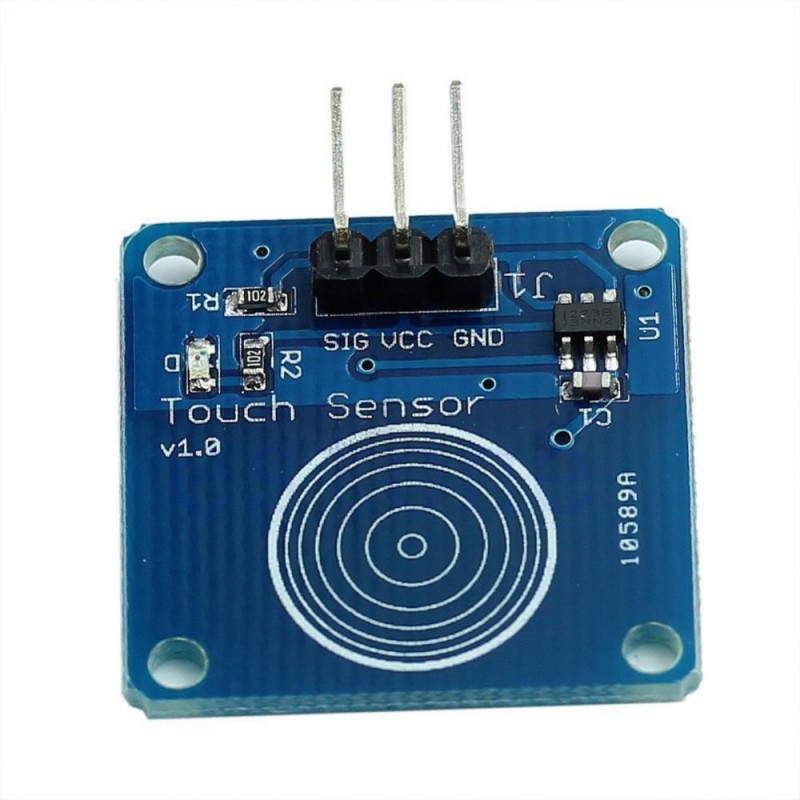

TTP223 - 1 Channel Capacitive Touch Sensor Module Blue Color
Description:
The TTP223 is a popular 1-channel capacitive touch sensor module, often utilized in various electronic projects for touch-sensitive applications. Here's a brief description of its usage:
-

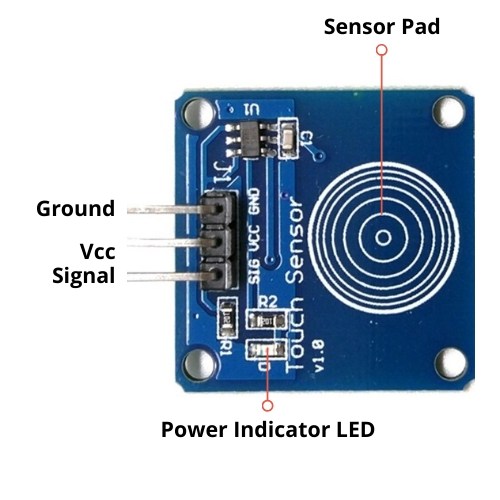

Touch Sensing: The TTP223 module detects touch through a capacitive sensing method. When a conductive object, such as a finger, comes into contact with the sensing pad on the module, it triggers a change in the sensor's output state.
-
Single Channel: This module typically provides a single touch-sensitive channel, meaning it can detect touch or proximity in one area only.
-
Blue Color: The color of the module, in this case, is blue. While the color doesn't affect its functionality, it might help in identifying or organizing different components in your project.
-
Easy Integration: The TTP223 module is easy to integrate into your circuit. It usually operates on low voltage and can be powered by a wide range of DC power sources.
-
Output: Upon touch detection, the module typically provides a digital output signal, indicating the touch event. This output can be connected to microcontrollers, LEDs, relays, or other components to trigger specific actions or events in your project.
-
Versatile Applications: Capacitive touch sensors like the TTP223 find applications in various fields, including consumer electronics, industrial controls, robotics, interactive installations, and more. Common applications include touch-controlled lamps, interactive displays, security systems, and user interfaces.
Remember to consult the datasheet or manufacturer's documentation for detailed specifications and wiring instructions specific to your module variant. Additionally, proper grounding and noise reduction techniques may be necessary for optimal performance in your project.
