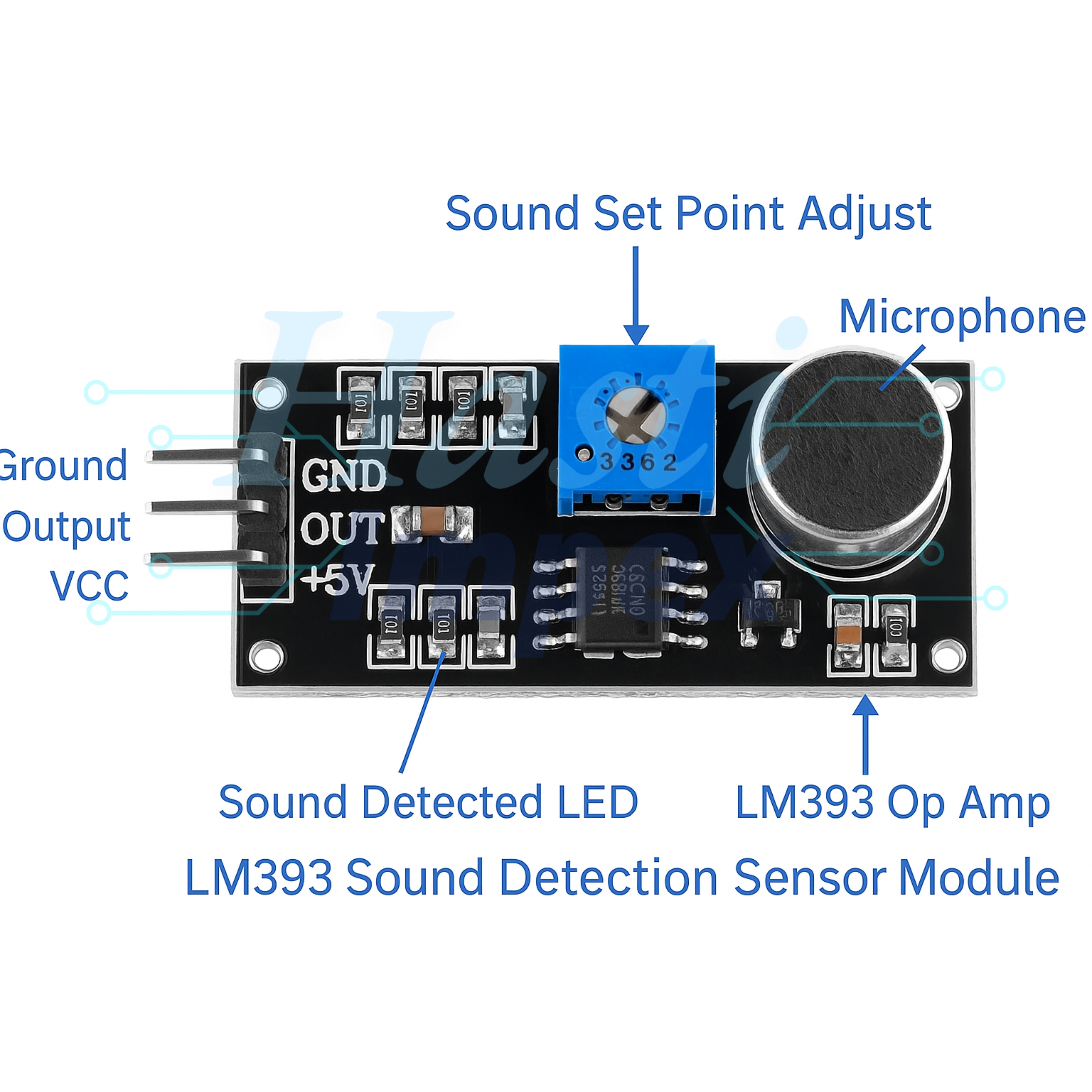

LM393 Sound Detection Sensor Module – Black
Description:
The Sound Detection Sensor Module is a simple electronic component that detects sound levels in its environment. Here's how you can use it effectively:
-

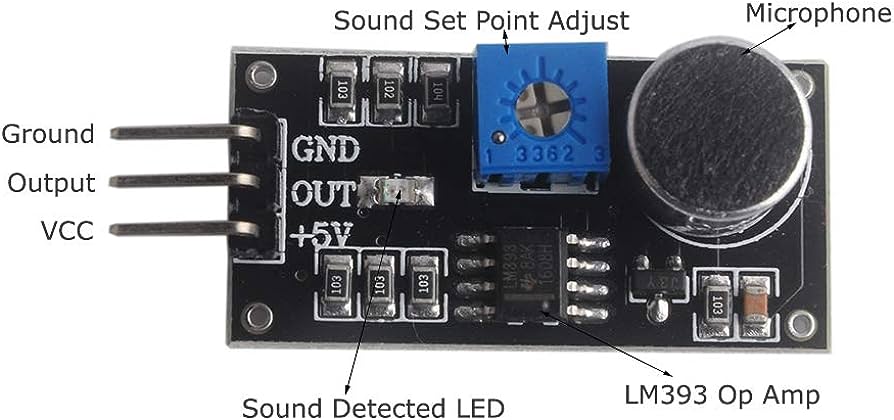

Understanding the Module: Get familiar with the sound detection sensor module and its components. It typically includes a microphone, an amplifier circuit, and an output signal.
-
Connections: Connect the module to your microcontroller or development board. It usually requires power (VCC) and ground (GND) connections. Additionally, it provides an analog or digital output that can be connected to a GPIO pin on your microcontroller.
-
Power Supply: Supply the module with the required voltage (usually 5V) and ensure proper current capacity.
-
Analog vs. Digital Output: Determine whether your module provides analog or digital output. Analog output provides a continuous voltage level proportional to the sound intensity, while digital output typically gives a high or low signal based on a set threshold.
-
Analog Output (if applicable): If your module provides analog output, read the voltage level using an analog-to-digital converter (ADC) on your microcontroller. Convert this voltage to sound intensity values using calibration if necessary.
-
Digital Output (if applicable): If your module provides digital output, read the signal using a digital input pin on your microcontroller. Adjust the threshold value if needed to trigger the detection based on the desired sound intensity level.
-
Calibration: Calibrate the sensor if necessary to ensure accurate detection of sound levels. This might involve adjusting sensitivity settings or threshold levels based on the characteristics of your application environment.
-
Data Processing: Process the sensor data to extract meaningful information, such as detecting sound events, measuring sound intensity levels, or triggering actions based on sound events.
-
Integration: Integrate the sound detection sensor module into your project setup, ensuring proper mounting and electrical connections. Test the sensor under different sound conditions to verify its performance.
-
Application: Utilize the sensor module in various applications such as sound-activated switches, noise monitoring systems, or interactive sound installations.
By following these steps, you can effectively use the Sound Detection Sensor Module to detect sound levels and integrate it into your projects for various applications.
