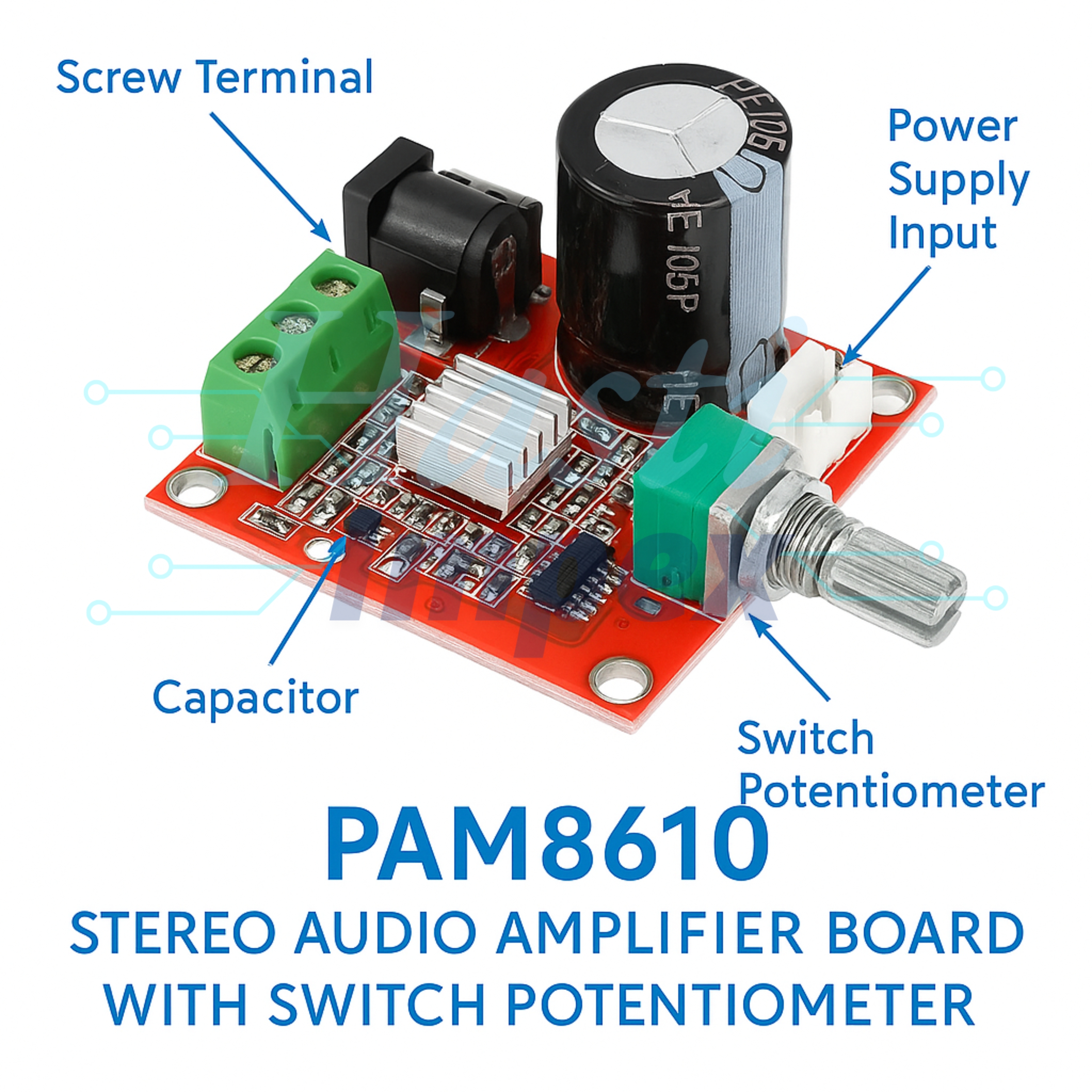

PAM8610 Stereo Audio Amplifier Board with Switch Potentiometer
Description:
PAM8610 Stereo Audio Amplifier Board with Switch Potentiometer is a compact, high-efficiency, low-power audio amplification solution designed for stereo speaker applications. Based on the PAM8610 chip, this board is perfect for DIY audio enthusiasts, hobbyists, and engineers looking to create high-quality audio systems in a small, energy-efficient package. The PAM8610 uses Class-D amplification, which means it can deliver powerful and clear audio while consuming less power and producing less heat than traditional amplifier designs.
Features:
1. Class-D Stereo Amplification
2. Adjustable Volume Control (Switch Potentiometer
3. Low Power Consumption
4. Clear Audio Output
5. Wide Voltage Range
6. Compact and Efficient Design
7. Stereo Output for Two Speakers
8. Overcurrent and Thermal Protection
9. Versatile Applications

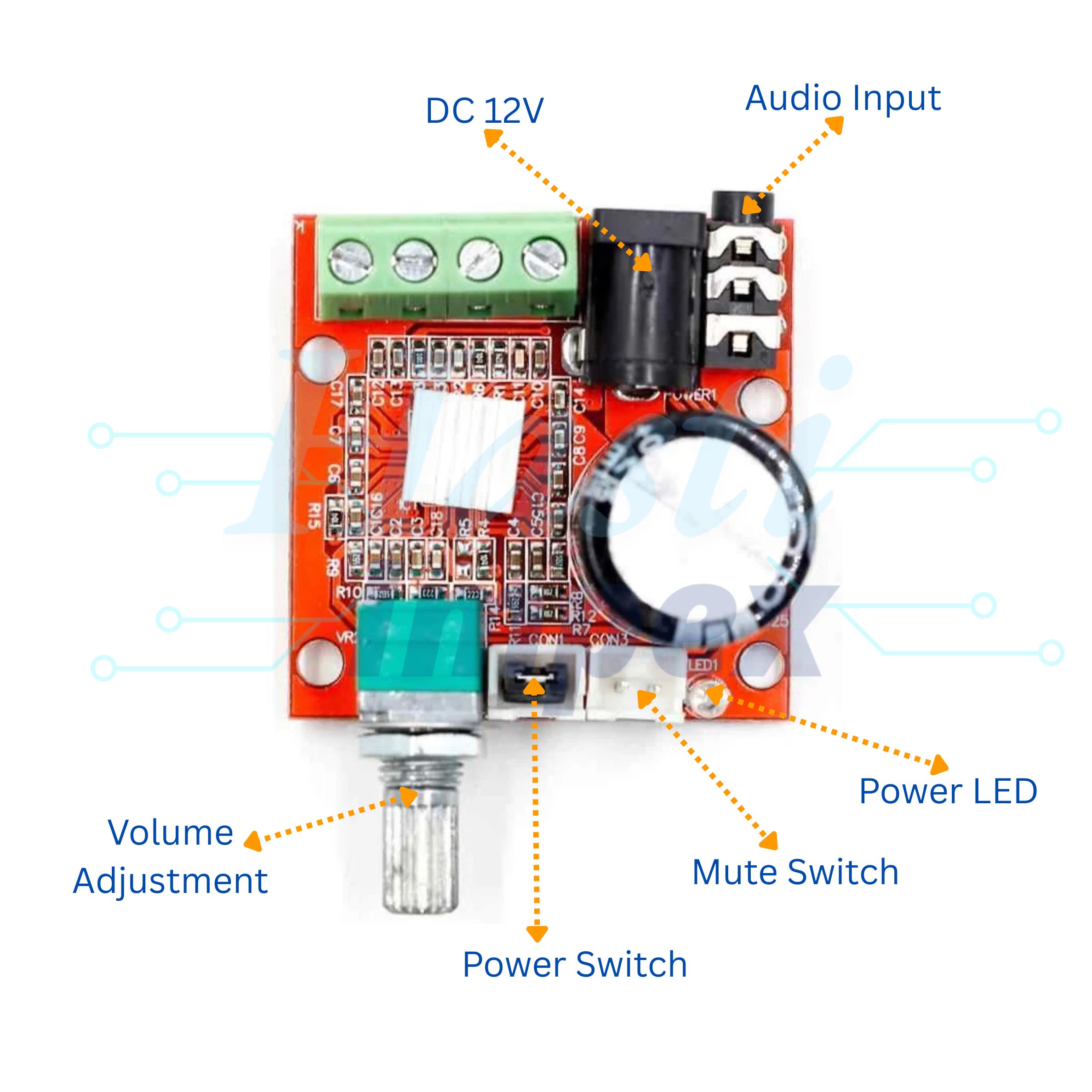

Diagram:
Specifications:
| Product Name | PAM8610 |
| Amplifier Type | Class-D |
| Chipset | PAM8610 |
| Audio Channels | 2 channels |
| Input Voltage | 5V to 15V DC |
| Input Signal | 3.5mm |
| Output Power | 12V, |
| Speaker Impedance | 4Ω to 8Ω |
| Efficiency | Class-D |
| Power Consumption | 2W to 3W |
| Dimensions | 60mm x 45mm |
| Weight | 20g to 30g |
| Operating Temperature | -40°C to 85°C |
