MCP2515 CAN Bus Module with TJA1050 Transreceiver
Description:
MCP2515 CAN Bus Module with TJA1050 Transceiver is a versatile and reliable interface module used for communication in Controller Area Network (CAN) systems. CAN is a robust, high-speed serial communication protocol commonly used in automotive, industrial automation, and embedded systems applications. This module allows microcontrollers and microprocessors to communicate with other devices over the CAN bus network.
Features:
1. MCP2515 CAN Controller (Microchip)
2. TJA1050 CAN Transceiver (NXP)
3. Power Supply and Voltage
4. Communication Interface
5. Message Buffers
6. Error Detection and Handling
7. Interrupt Capability
8. Low-Voltage Operation
9. Physical Layer Interface
10. Fail-Safe Features
11. Compact Form Factor
12. Bus Termination
13. Wide Range of Applications

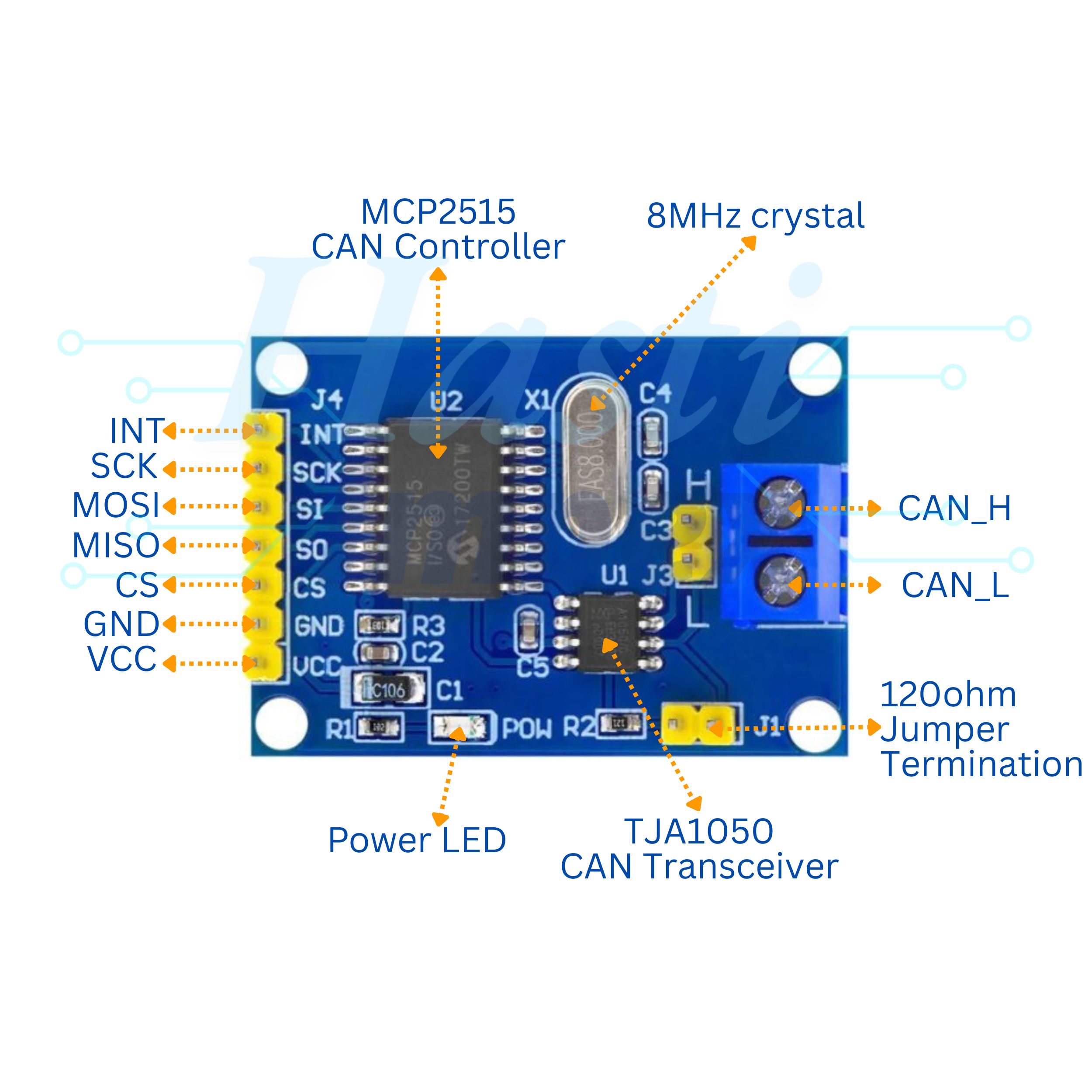

Diagram:
Specifications:
| Model | MCP2515 Can Bus Module Board |
| Transceiver Used | High Speed CAN TJA1050 |
| Oscillator Used | 8MHZ crystal oscillator |
| Resistance | 120Ω terminal resistance |
| Data Field Type | 0 to 8 bytes long data field |
| Dimensions | 4 x 3 x 1 cms |
| Weight | 0.5 grams |
