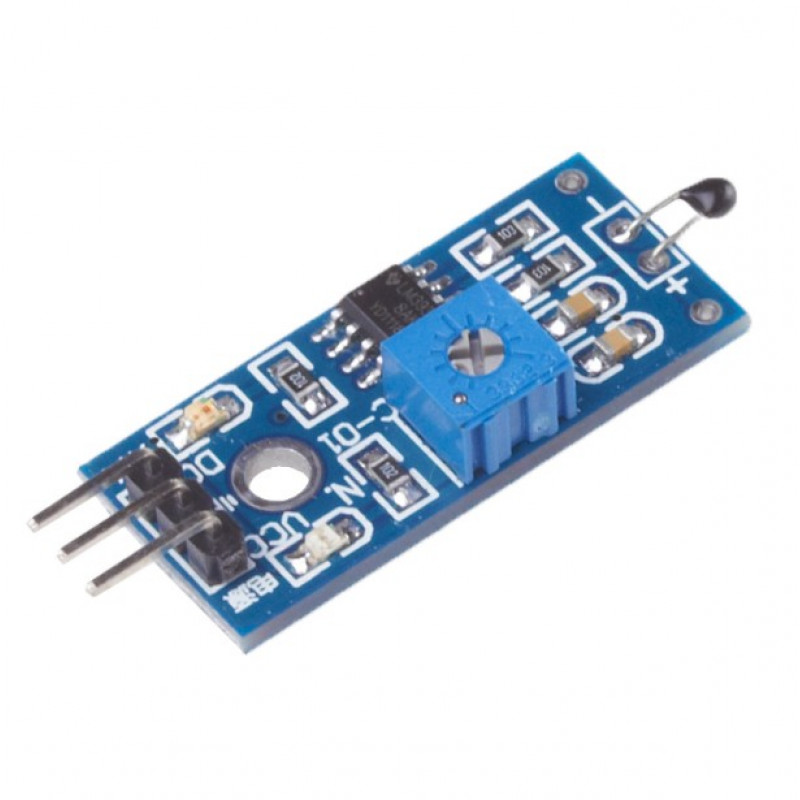

NTC Thermistor Temperature Sensor Module

Description:

An NTC (Negative Temperature Coefficient) thermistor temperature sensor module is a device used to measure temperature by utilizing the properties of an NTC thermistor. Here's a brief overview of its use and description:

  1. Functionality: The NTC thermistor is a type of resistor whose resistance decreases with an increase in temperature. This property allows it to be used as a temperature sensor.

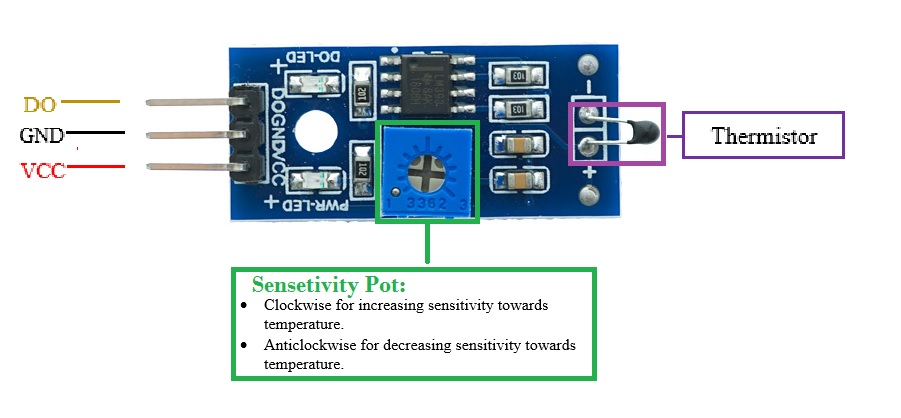

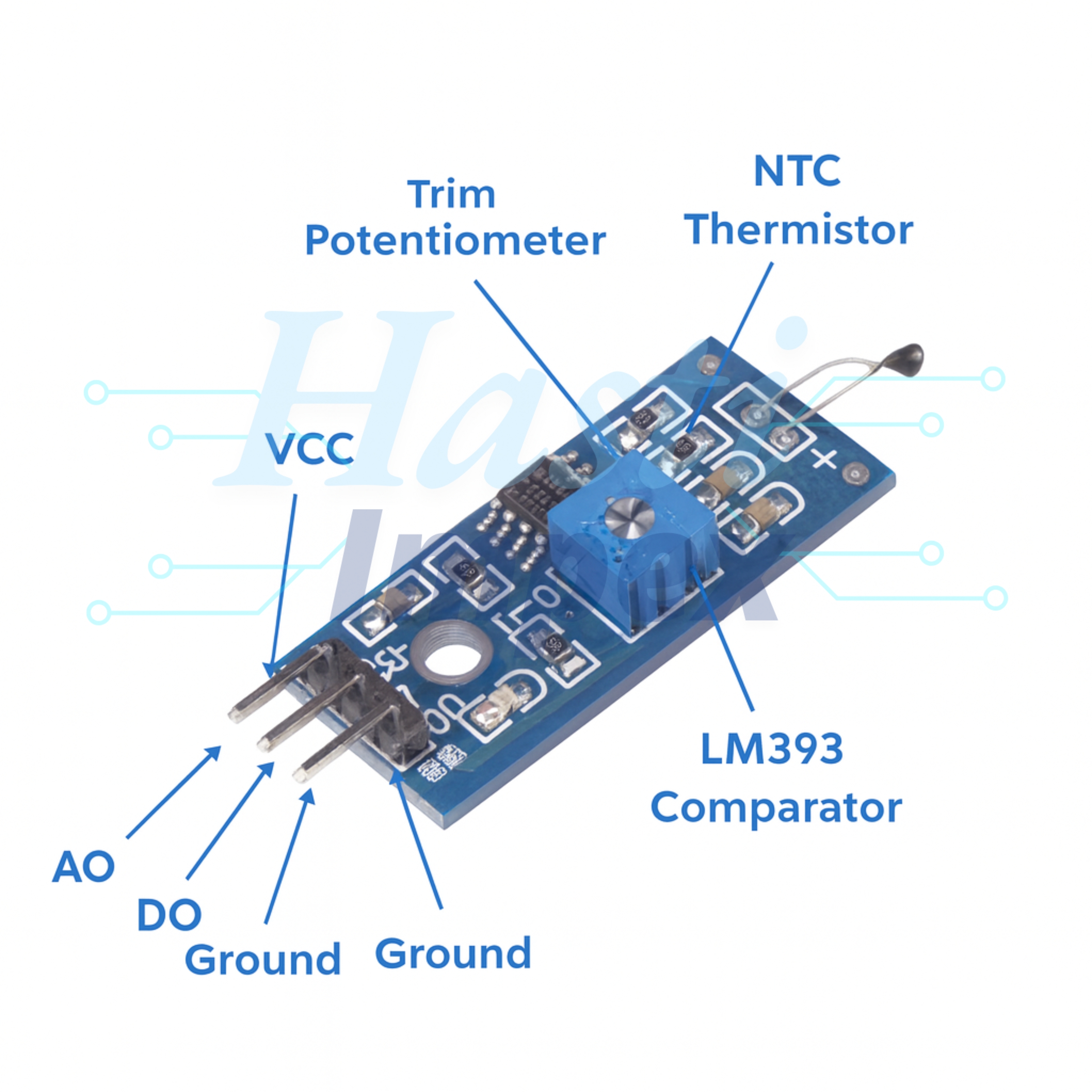

  2. Module Components: The module typically consists of an NTC thermistor, signal conditioning circuitry, and output interfaces. Some modules might also include additional features such as calibration options or temperature compensation.

  3. Usage: The module is usually connected to a microcontroller or other electronic circuitry to measure temperature. It converts the resistance changes of the NTC thermistor into a voltage or digital signal that can be processed by the connected device.

  4. Calibration: Depending on the module, calibration might be required to ensure accurate temperature measurements. This could involve adjusting parameters in the signal conditioning circuitry or compensating for non-linearities in the thermistor's response.

  5. Applications: NTC thermistor temperature sensor modules are commonly used in various applications such as environmental monitoring, temperature control systems, industrial process monitoring, and consumer electronics.

  6. Accuracy and Range: The accuracy and temperature range of the module depend on factors such as the quality of the thermistor, the design of the signal conditioning circuitry, and any calibration performed. Some modules might have a wider temperature range and higher accuracy compared to others.

  7. Installation: The module is typically installed in the location where temperature needs to be measured. Proper installation and thermal contact with the environment are essential for accurate measurements.

  8. Output: The module usually provides temperature readings in either analog (voltage) or digital format, depending on its design. Analog outputs might require additional analog-to-digital conversion if interfacing with a digital system.

  9. Protection: Depending on the application, it might be necessary to provide protection against environmental factors such as moisture, dust, or extreme temperatures to ensure the longevity and accuracy of the module.

  10. Integration: Integration of the module into a larger system often involves interfacing with other components, such as microcontrollers, data loggers, or display units, to utilize the temperature data for monitoring or control purposes.

Overall, an NTC thermistor temperature sensor module provides a convenient and reliable way to measure temperature in various applications, offering flexibility, accuracy, and ease of integration.
