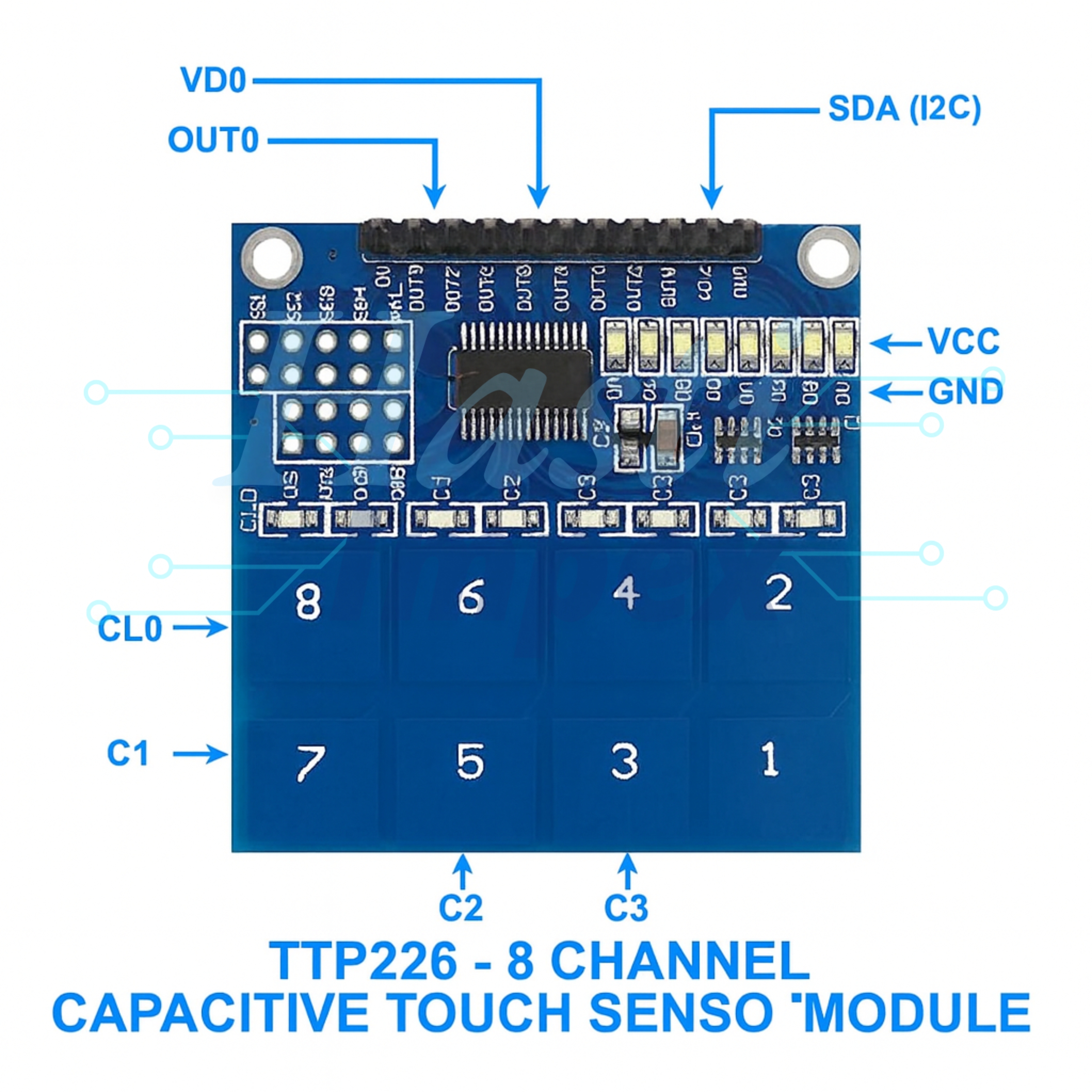

TTP226 - 8 Channel Capacitive Touch Sensor Module
Description:
The TTP226 is an 8-channel capacitive touch sensor module. It's commonly used in projects where touch-sensitive interfaces are required, such as control panels, interactive displays, or user interfaces for electronic devices. Here are some key features and functionalities of the TTP226 module:
-
Capacitive Touch Sensing: The TTP226 module uses capacitive sensing technology to detect touch inputs. This allows for non-contact detection of touch, making it suitable for a variety of applications.
-
Multiple Channels: The module has 8 touch-sensitive channels, allowing you to implement multi-touch interfaces or control multiple functions with a single module.
-
Easy Integration: It typically communicates with a microcontroller or other digital device via simple digital input/output pins. Each channel can be individually configured for sensitivity and other parameters.
-
Low Power Consumption: The TTP226 module is designed to operate with low power consumption, making it suitable for battery-powered applications.
-
Configurable Sensitivity: Users can adjust the sensitivity of each touch channel according to their specific requirements. This allows for customization based on factors such as environmental conditions or user preferences.
-
Built-in Debouncing: The module often includes built-in debouncing circuitry to filter out noise and ensure reliable touch detection, reducing false positives.
-
Compact Size: The module is compact and easy to integrate into various electronic devices and prototypes.
To use the TTP226 module, you typically connect it to a microcontroller or digital device, configure the sensitivity and other parameters as needed, and then monitor the digital output to detect touch events on the different channels. Libraries and example code are often available for popular microcontroller platforms to simplify the integration process.
