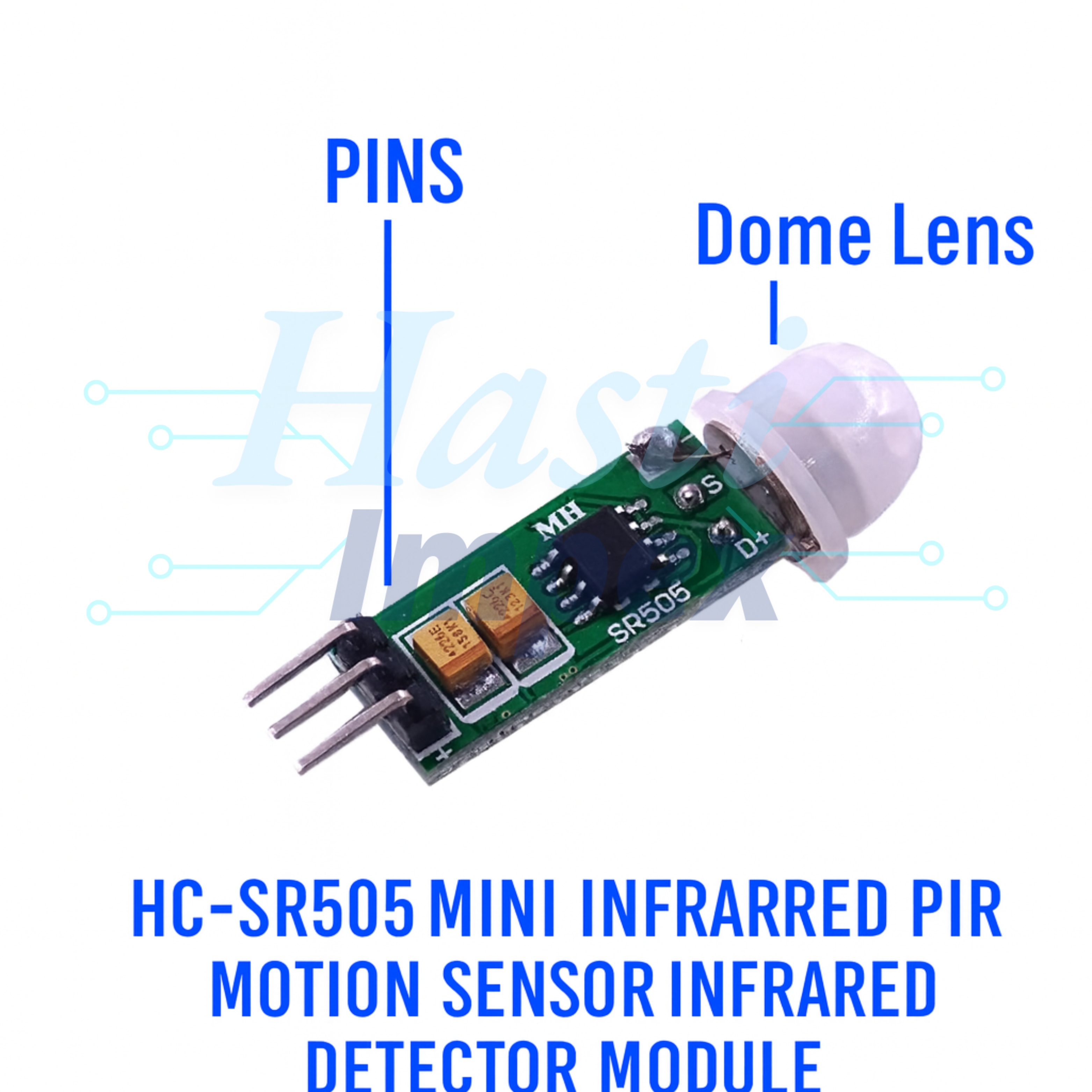

HC-SR505 Mini Infrared PIR Motion Sensor Infrared Detector Module
Description:
ChatGPT
The HC-SR505 Mini Infrared PIR Motion Sensor is a small, low-power sensor module that detects motion using passive infrared (PIR) technology. It is commonly used in security systems, automatic lighting, and other applications requiring motion detection. Here’s a detailed look at its use and description:
Description
-
Module Overview:
- Sensor Type: Passive Infrared (PIR)
- Model: HC-SR505
- Dimensions: Compact size, making it easy to integrate into various projects.
- Operating Voltage: Typically 4.5V to 20V DC.
- Output Signal: Digital high (3.3V) when motion is detected, otherwise low (0V).
- Detection Distance: Typically around 3 meters.
- Detection Angle: Approximately 100 degrees.
- Quiescent Current: Low power consumption, typically less than 60µA.
- Trigger Mode: Single trigger by default, meaning it only outputs a high signal once per motion event.
-
Components:
- PIR Sensor: Detects infrared radiation changes from moving objects.
- Processing Circuit: Amplifies and processes the signal from the PIR sensor to determine if motion has occurred.
- Output Pin: Provides a digital signal indicating motion detection.
Use
-
Powering the Module:
- Connect the VCC pin to a power supply (4.5V to 20V DC).
- Connect the GND pin to the ground of the power supply.
-
Connecting the Output:
- The OUT pin provides a digital signal.
- When motion is detected, the OUT pin goes high (3.3V).
- When no motion is detected, the OUT pin stays low (0V).
-
Integrating with a Microcontroller:
- Connect the OUT pin to a digital input pin on a microcontroller (e.g., Arduino, Raspberry Pi).
- Write a program to monitor the digital input pin for changes.
- When the input pin reads high, perform the desired action (e.g., turn on an LED, send a notification, etc.).
-

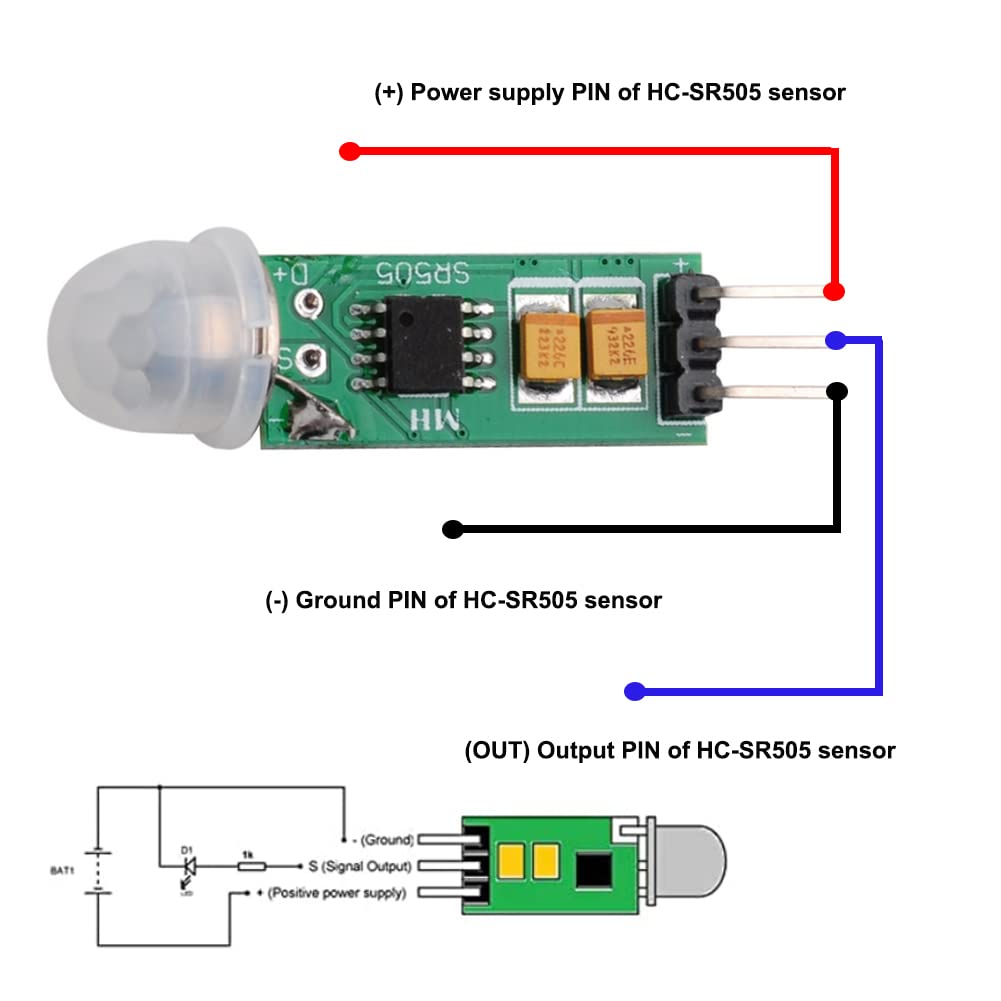

Example Circuit:
- VCC to 5V on the microcontroller.
- GND to GND on the microcontroller.
- OUT to a digital input pin on the microcontroller (e.g., D2 on Arduino).
-
Applications
- Security Systems: Used in burglar alarms to detect unauthorized entry.
- Automatic Lighting: Turns lights on when motion is detected and off after a set period.
- Energy Conservation: Helps in reducing power consumption by activating devices only when needed.
- Interactive Projects: Used in DIY electronics projects where motion detection is required.
-
The HC-SR505 Mini Infrared PIR Motion Sensor is a versatile and easy-to-use component suitable for various applications where motion detection is needed. Its compact size and low power consumption make it ideal for battery-powered and space-constrained projects.
