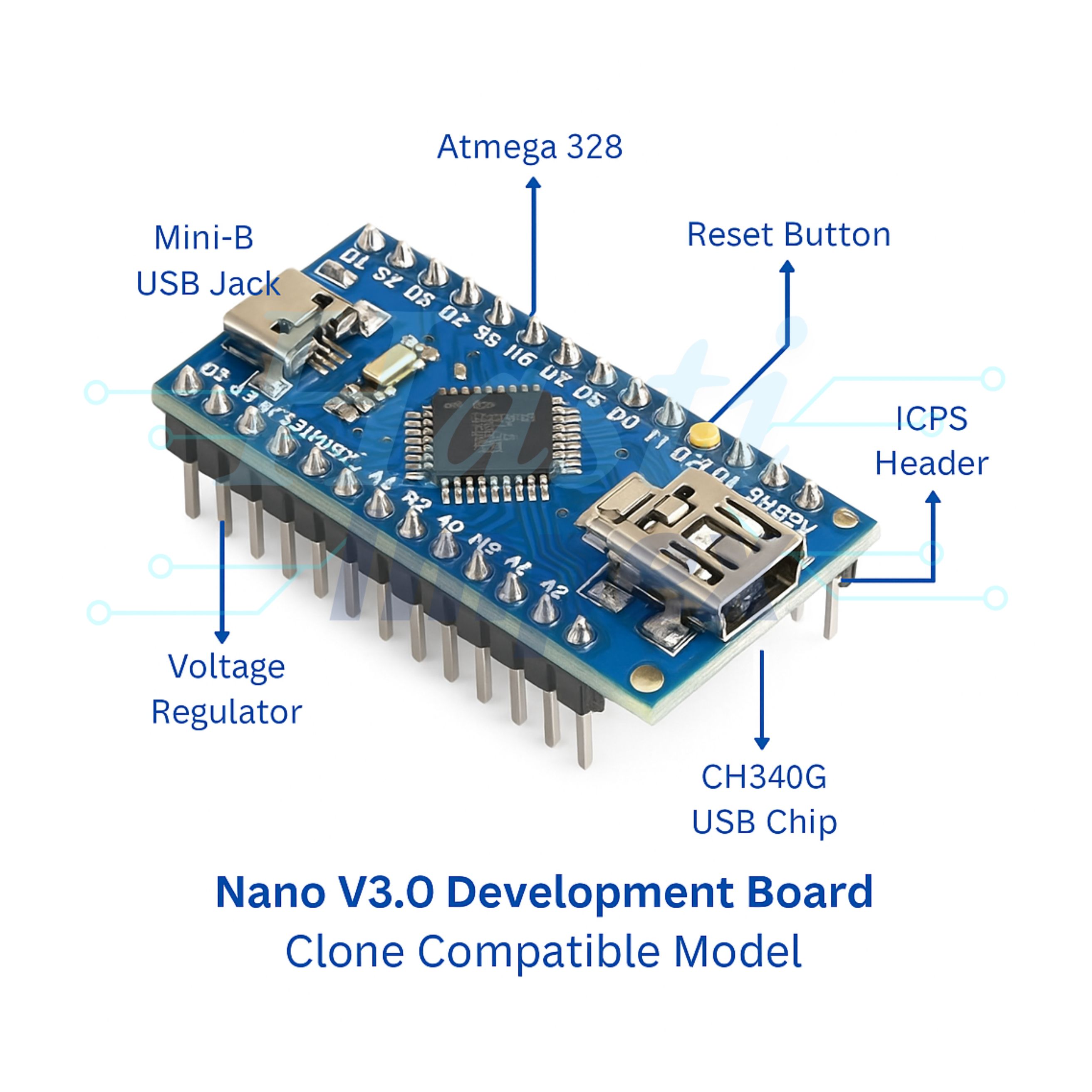

NANO V3.0 Development Board - Clone Compatible Model
Description:
NANO V3.0 Development Board (Clone Compatible Model) is a compact, versatile microcontroller board designed for embedded system development and prototyping. It is based on the ATmega328P microcontroller, similar to the Arduino Nano, and is widely used for projects requiring small form factors, low power consumption, and a broad range of I/O pins. This development board is ideal for hobbyists, engineers, and makers who require an affordable, reliable, and feature-packed platform for various electronics projects, including robotics, automation, sensor interfacing, and IoT applications.
NANO V3.0 Development Board is an ideal choice for small to medium-sized projects, as it provides all the features of a full-fledged Arduino board but in a much smaller form factor. It is a clone-compatible version of the Arduino Nano, meaning it has the same design and functionality, but it is typically more affordable.
The core of the NANO V3.0 is the ATmega328P microcontroller, which runs at 16 MHz and features 32 KB of flash memory for program storage, 2 KB of SRAM for runtime data, and 1 KB of EEPROM for non-volatile data storage. It also comes with 14 digital I/O pins, of which 6 are PWM outputs, and 8 analog inputs, making it suitable for a wide range of input/output tasks.
The NANO V3.0 is equipped with a USB-to-Serial interface (usually the CH340 or FTDI chip), allowing for easy connection to a computer for programming and debugging. This board can be powered via USB or an external DC power supply, making it flexible for different project requirements.
The clone-compatible version of the NANO V3.0 retains all the key features and functionality of the original Arduino Nano but at a much lower price, making it accessible for students, hobbyists, and professionals working on prototyping and small-scale production projects.
The Arduino Nano V3.0 Clone is programmed and developed using the Arduino IDE, which is open-source and provides a simple environment for writing, uploading, and debugging code. The large online community also offers various libraries, example sketches, and tutorials, making it easier for beginners to get started and more experienced developers to work efficiently.
Features:
1. Microcontroller
2. Digital I/O Pins
3. Operating Voltage
4. Input Voltage (recommended)
5. Analog Input Pins
6. PWM (Pulse Width Modulation) Pins
7. Flash Memory
8. SRAM
9. EEPROM
10. Clock Speed
11. USB-to-Serial Interface
12. Onboard Voltage Regulator
13. Small Form Factor
14. Compatibility with Arduino IDE
15. Pins for Breadboard Use
16. Reset Button
17. Power Output Pins
18. Typical Uses

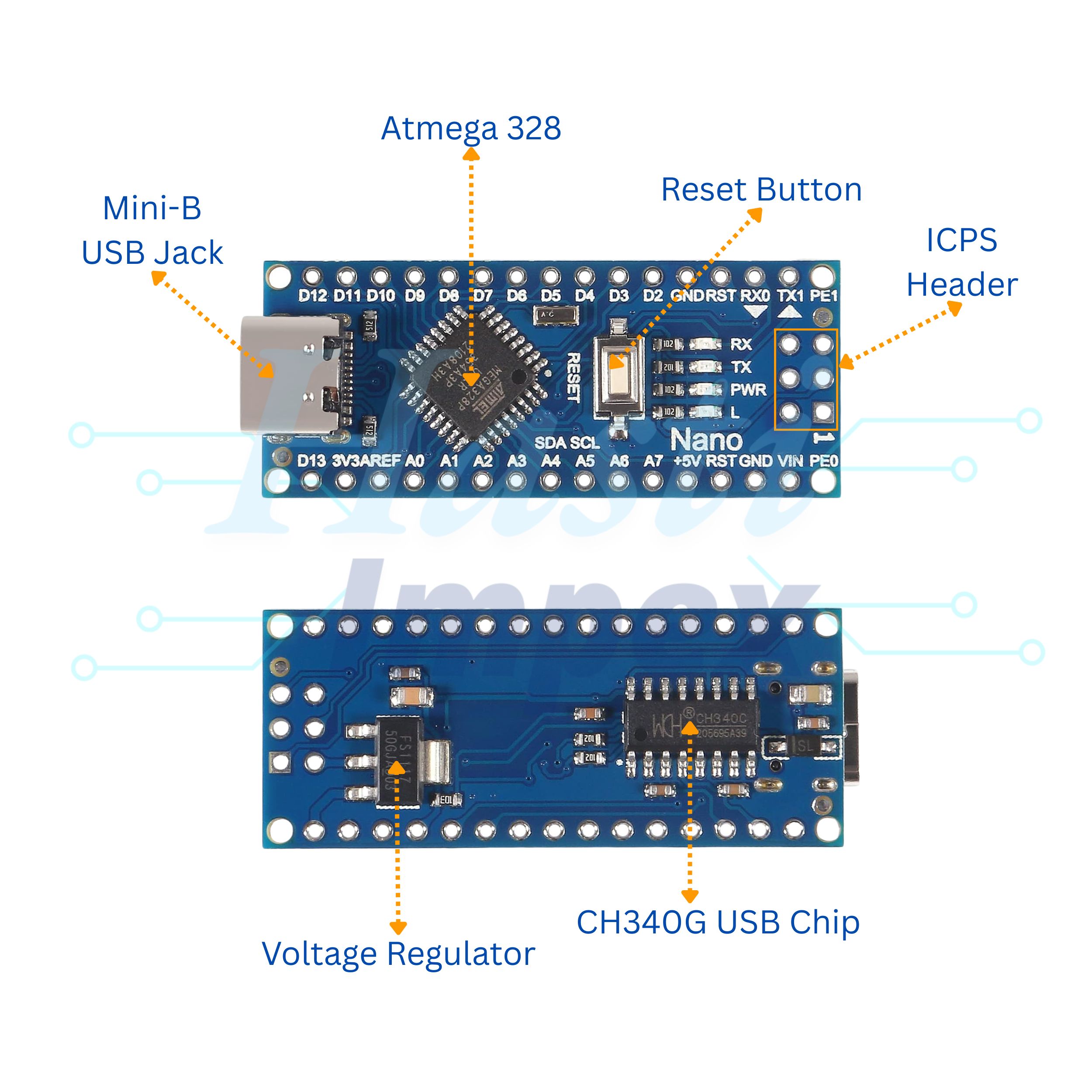

Diagram:
Specifications:
| Analog I/O Pins | 8 |
| Architecture | AVR |
| Clock Speed | 16 MHz |
| Colour | Blue |
| DC Current per I/O Pin | 40 mA |
| Digital I/O Pins | 22 |
| EEPROM | 1KB |
| Flash Memory | 32 KB of which 2 KB used by the bootloader |
| Input Voltage(Recommended) | 7-12 V |
| Microcontroller | ATmega328 |
| Operating Voltage | 5 |
| Power Consumption | 19 mA |
| PWM Output Pins | 6 |
| SRAM | 2KB |
| Weight (gm) | 8g |
