XH-M131 DC 24V Light Control Switch Photoresistor Relay Module
Description
The XH-M131 DC 5V Light Control Switch Photoresistor Relay Module is a device used to control electrical circuits based on the intensity of light. Here's an overview of its features and functionality:
Features:
-

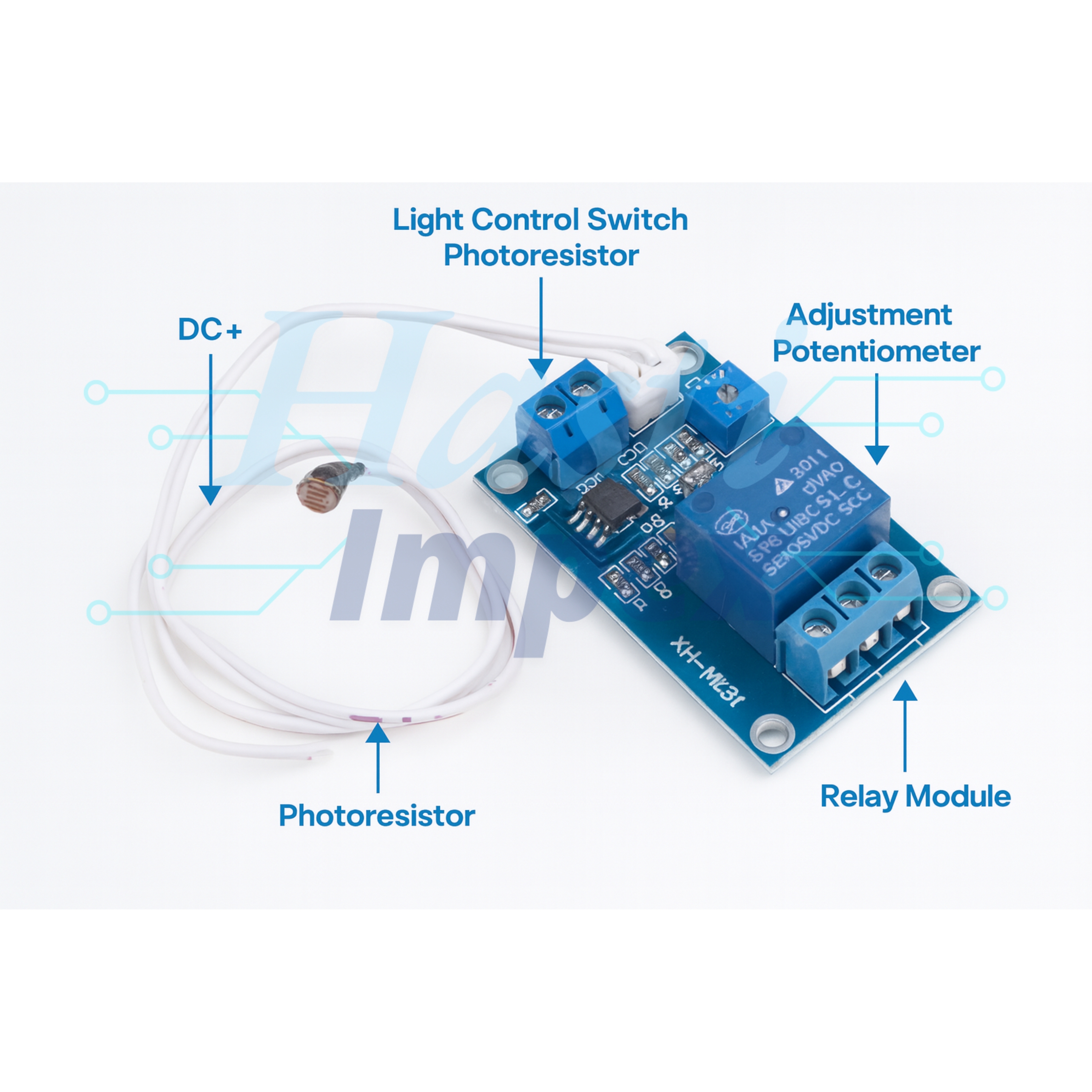

Light Control: The module utilizes a photoresistor (also known as a light-dependent resistor or LDR) to detect changes in ambient light levels.
-
Relay: It includes a relay that can be switched on or off based on the light intensity detected by the photoresistor.
-
Input Voltage: The module operates on a DC voltage of 5 volts, which is commonly provided by microcontrollers, Arduino boards, or other similar devices.
-
Relay Output: The relay provides a switching capability for controlling external circuits or devices based on the light levels detected by the photoresistor.
-
Adjustable Sensitivity: Some modules may feature a potentiometer or trimmer resistor that allows you to adjust the sensitivity of the photoresistor, enabling customization of the light detection threshold.
-
LED Indicator: It might include an LED indicator to signify when the relay is activated based on the light conditions.
-
Easy Integration: The module is designed for easy integration into various projects and applications requiring light-controlled switching.
Functionality:
-
Light Sensing: The photoresistor detects changes in ambient light levels. When the light intensity crosses a certain threshold determined by the sensitivity adjustment, the resistance of the photoresistor changes accordingly.
-
Relay Control: Based on the resistance of the photoresistor, the module activates or deactivates the relay. For example, when the light level falls below the threshold, the relay may be switched on to control a connected load (e.g., turning on lights, activating a motor, etc.). Conversely, when the light level rises above the threshold, the relay may be switched off.
-
Application: The module can be used in various applications such as automatic lighting systems, streetlights, garden lights, and security systems where light-dependent control is required.
Usage:
-

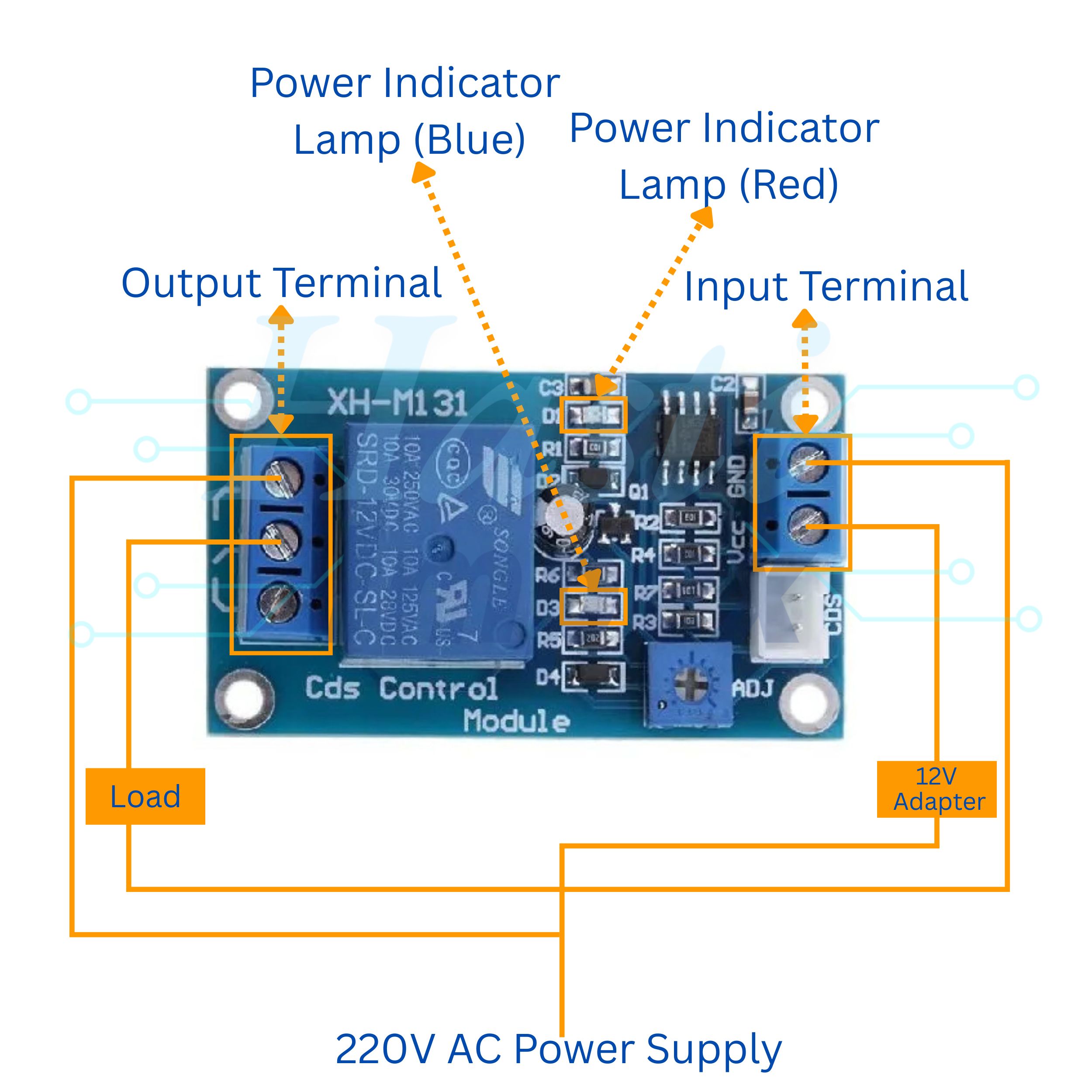

Connection: Connect the module to a power source (5V DC) and ground. Wire the relay output to the circuit or device you want to control based on light levels.
-
Adjust Sensitivity: If your module features a sensitivity adjustment, calibrate it according to your requirements by turning the potentiometer or trimmer resistor.
-
Testing: Test the module by exposing the photoresistor to different light levels and observing the relay's behavior. Ensure it switches on or off as expected based on the changes in light intensity.
-
Integration: Integrate the module into your project or application where light-controlled switching is needed.
Safety Precautions:
- Ensure proper insulation and protection of electrical connections to prevent short circuits or electrical hazards.
- Handle the module and its components with care to avoid damage.
- Adhere to safety guidelines and regulations when integrating the module into applications involving electrical circuits.
By using the XH-M131 DC 5V Light Control Switch Photoresistor Relay Module effectively, you can implement light-dependent switching in your projects or applications with ease.
