Description:
ChatGPT

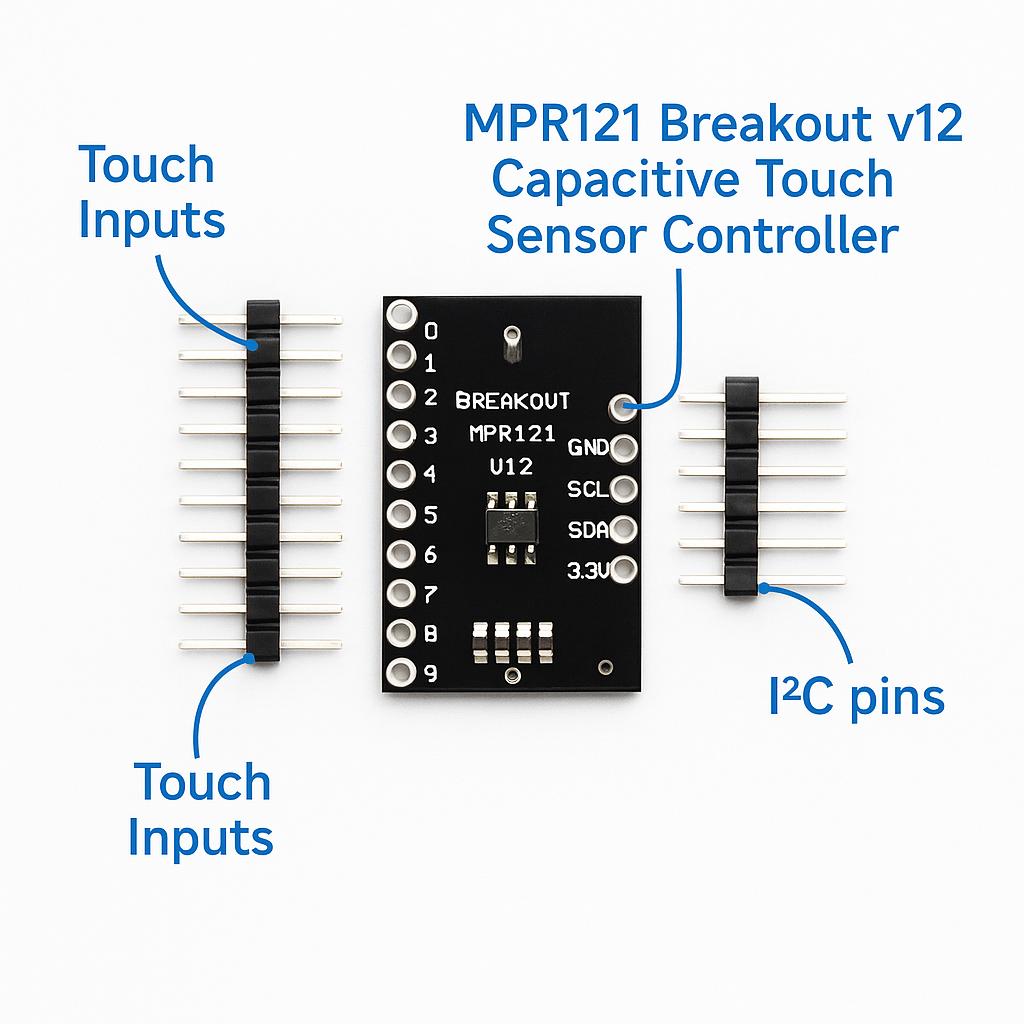

The MPR121 Breakout V12 Capacitive Touch Sensor Controller Module is a versatile component commonly used for adding capacitive touch sensing capabilities to various electronic projects. Here's a description of its components and functionality, especially when configured as an I2C keyboard:
-
Capacitive Touch Sensing: The MPR121 module utilizes capacitive sensing technology to detect touch or proximity to electrodes connected to its inputs. It can detect changes in capacitance caused by a user's touch or presence without requiring physical contact with the electrodes.
-

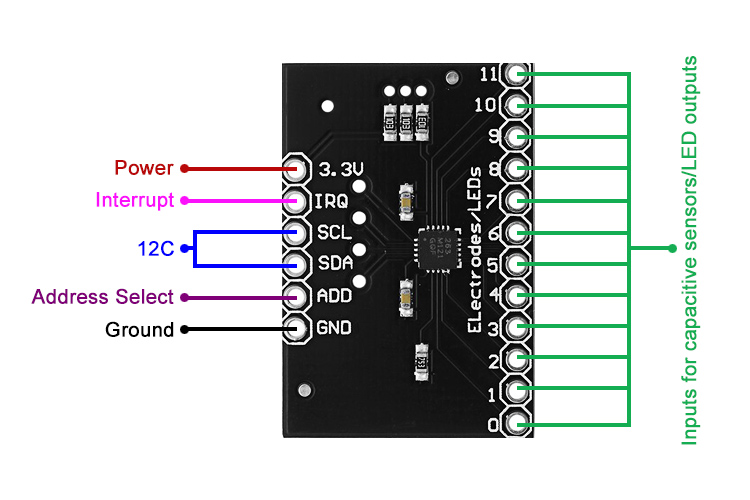

Electrodes: The module typically features multiple touch-sensitive electrodes that can be connected to conductive materials or surfaces. These electrodes serve as touch-sensitive input points, allowing users to interact with the module by touching or hovering their fingers near them.
-
MPR121 Controller Chip: The heart of the module is the MPR121 capacitive touch sensor controller chip, which manages the touch sensing functionality and communicates with the microcontroller or host device. The MPR121 chip supports various sensing configurations and filtering options to optimize performance.
-
I2C Interface: The module communicates with the microcontroller using the Inter-Integrated Circuit (I2C) protocol, which allows for easy integration into projects with minimal wiring. The I2C interface simplifies communication between the module and the microcontroller, requiring only two wires (SDA and SCL).
-
Keyboard Configuration: When configured as a keyboard, the MPR121 module maps touch inputs to specific keyboard keys or key combinations. Each touch-sensitive electrode can be assigned to a unique key, allowing users to trigger keyboard events by touching or hovering near the electrodes.
-
Key Mapping: The module typically provides options for customizing the key mapping and assigning specific keys or functions to each touch electrode. This flexibility allows users to create custom keyboard layouts tailored to their project requirements.
-
Library Support: Libraries and code examples are available for various microcontroller platforms (Arduino, Raspberry Pi, etc.) to interface with the MPR121 module and implement touch sensing and keyboard functionality in your projects. These libraries simplify the programming process by providing functions for configuring the module, reading touch inputs, and emulating keyboard events.
-
Applications: The MPR121 module with I2C keyboard configuration can be used in a wide range of applications, including interactive displays, touch-sensitive interfaces, virtual keyboards, musical instruments, and gaming controllers. Its capacitive touch sensing capabilities and flexible key mapping make it suitable for various user interface and input control applications.
In summary, the MPR121 Breakout V12 Capacitive Touch Sensor Controller Module configured as an I2C keyboard offers a convenient and versatile solution for adding capacitive touch sensing and keyboard input capabilities to your electronic projects. Its compact size, ease of use, and customizable features make it a popular choice for interactive and user-friendly interfaces.
