Digital Voltmeter (0-100V) and Ammeter (10 A) Dual Led Voltage Current Measurement Module
Description:
Digital Voltmeter (0-100V) and Ammeter (10A) Dual LED Voltage Current Measurement Module is a versatile and useful tool for monitoring both the voltage and current in electrical circuits. This module combines two essential measuring instruments—voltmeter and ammeter—in one compact unit, making it ideal for applications in power supplies, battery charging systems, automotive diagnostics, or various electronics and DIY projects. It features LED displays for both voltage and current, making it easy to read measurements in real-time.
Features:
1. Dual Measurement Capabilities (Voltage and Current)
2. Wide Voltage Measurement Range
3. Current Measurement (10A)
4. LED Display for Clear and Instant Readout
5. Accuracy and Precision
6. Low Power Consumption
7. Overload Protection
8. Easy to Integrate
9. Wide Applications
10. Simple Calibration

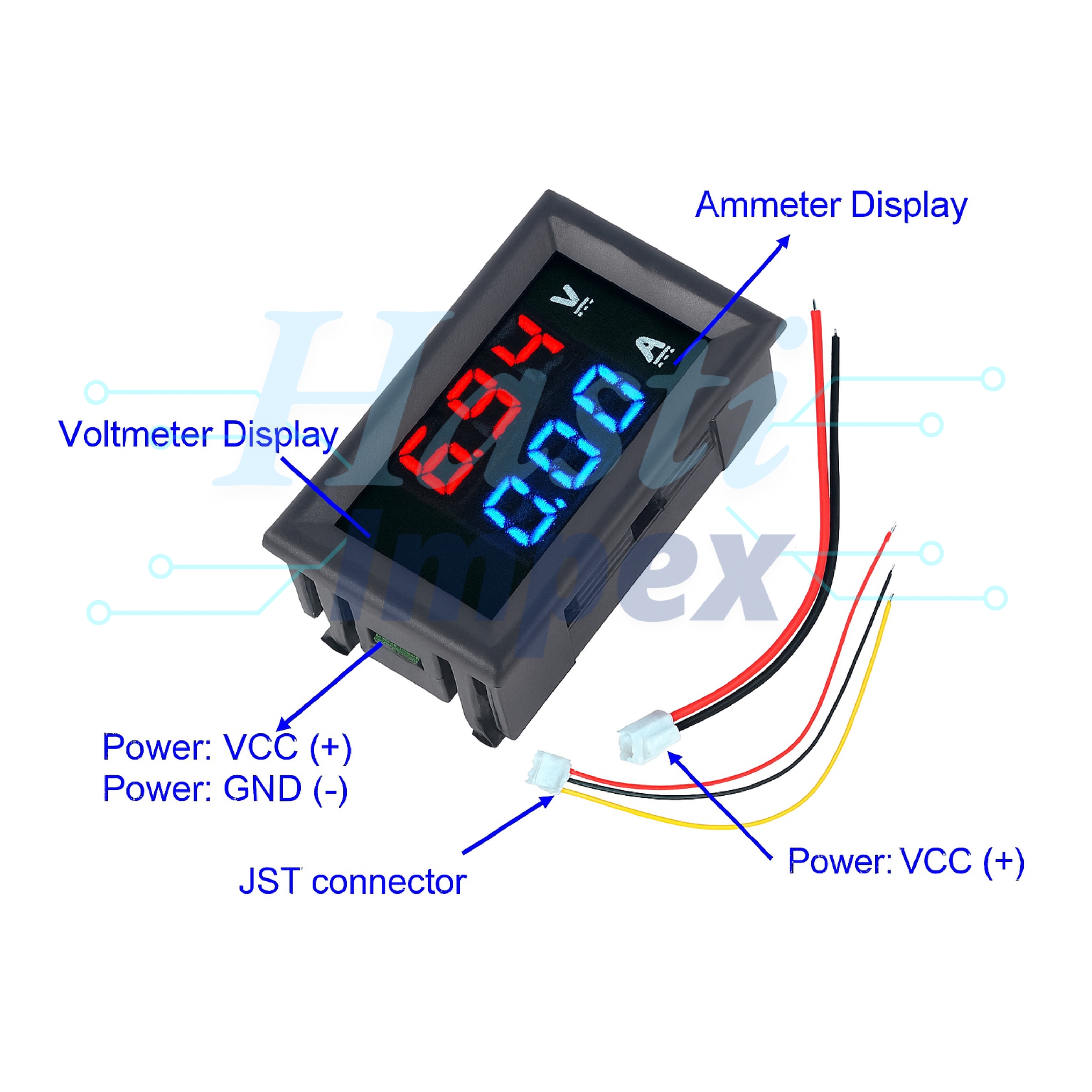

Diagram:
Specifications:
| Range | 0-100V DC |
| Accuracy | ±1% |
| Resolution | 0.01V |
| Display | Two-digit 7-segment LED display |
| Current Measurement Range | 0-10A DC |
| Input Voltage | DC 5V or 12V |
| Power Consumption | <20mA |
| Dimensions | 50mm x 40mm |
