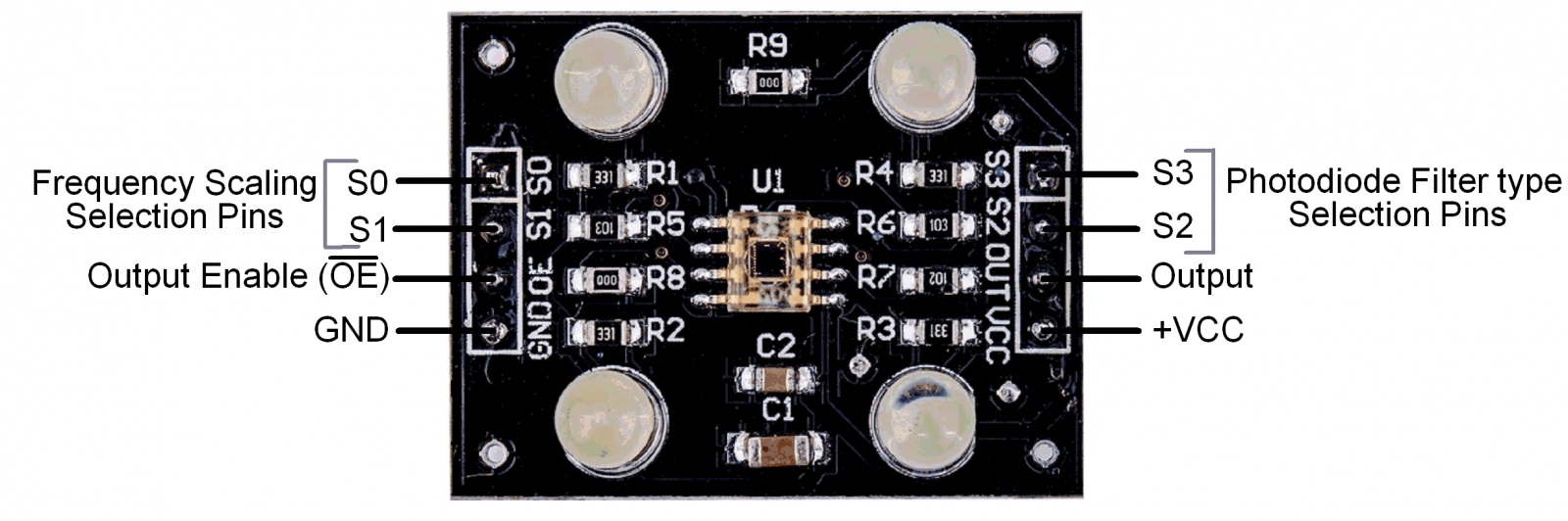

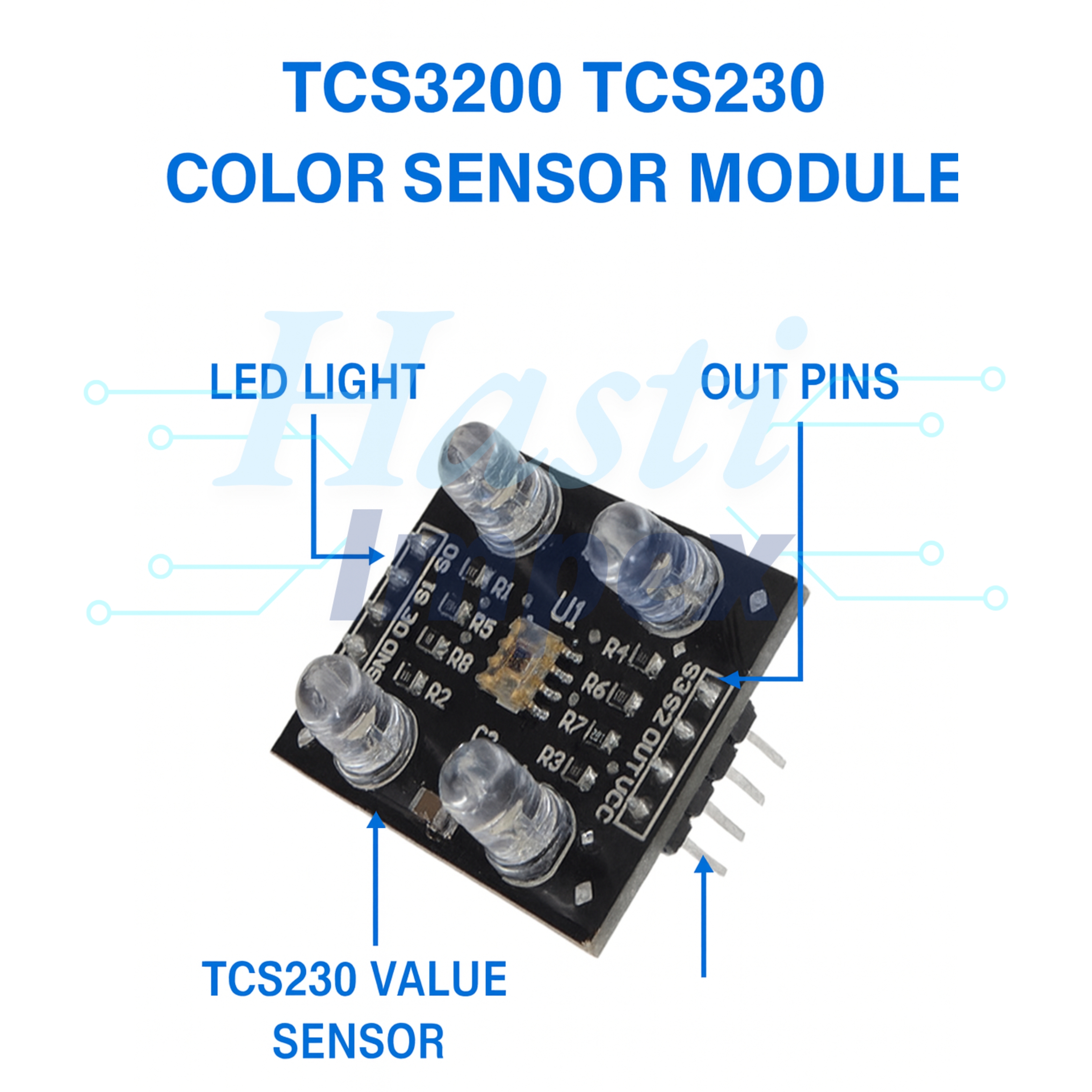

TCS3200 TCS230 Color Sensor Module
Description:
The TCS3200 and TCS230 are color sensor modules commonly used in electronics projects. They both work on similar principles, but the TCS3200 is a more advanced version with some additional features.
Here's a brief overview of each:
-
TCS230 Color Sensor Module: This module consists of an array of photodiodes. It can detect the intensity of light at different wavelengths, allowing it to discern colors. The sensor has four photodiodes: red, green, blue, and clear. By measuring the intensity of light at these different wavelengths, it can determine the color of the surface it's pointed at.
-
TCS3200 Color Sensor Module: This is an upgraded version of the TCS230. It has the same basic functionality but with additional features like a programmable gain amplifier, which allows for more precise color detection in various lighting conditions. The TCS3200 also has a wider detection range and can operate at higher speeds compared to the TCS230.
Both modules can be interfaced with microcontrollers like Arduino and Raspberry Pi to enable color sensing capabilities in various projects. They're commonly used in applications such as color sorting machines, color detection in robotics, and color-based authentication systems.
If you're planning to use either of these modules, you'll typically connect them to your microcontroller using digital or analog pins, depending on the specific module and your project requirements. Then, you'll write code to read the sensor data and interpret the detected colors based on the readings from the photodiodes.
