NEO-M8N GPS Module with Ceramic Active Antenna
Description:
NEO-M8N GPS Module with Ceramic Active Antenna is a high-performance, compact GPS receiver designed for accurate positioning and navigation applications. This module combines the powerful u-blox NEO-M8N GPS receiver chip with a ceramic active antenna for enhanced signal reception, providing reliable and precise GPS data for a variety of applications, from drones to automotive systems and handheld devices.
Features:
1. u-blox NEO-M8N GPS Chip
2. Ceramic Active Antenna
3. Low Power Consumption
4. Compact Design
5. High Sensitivity
6. Data Output
7. Real-Time Kinematic (RTK)
8. PPS (Pulse Per Second) Output
9. Easy Integration

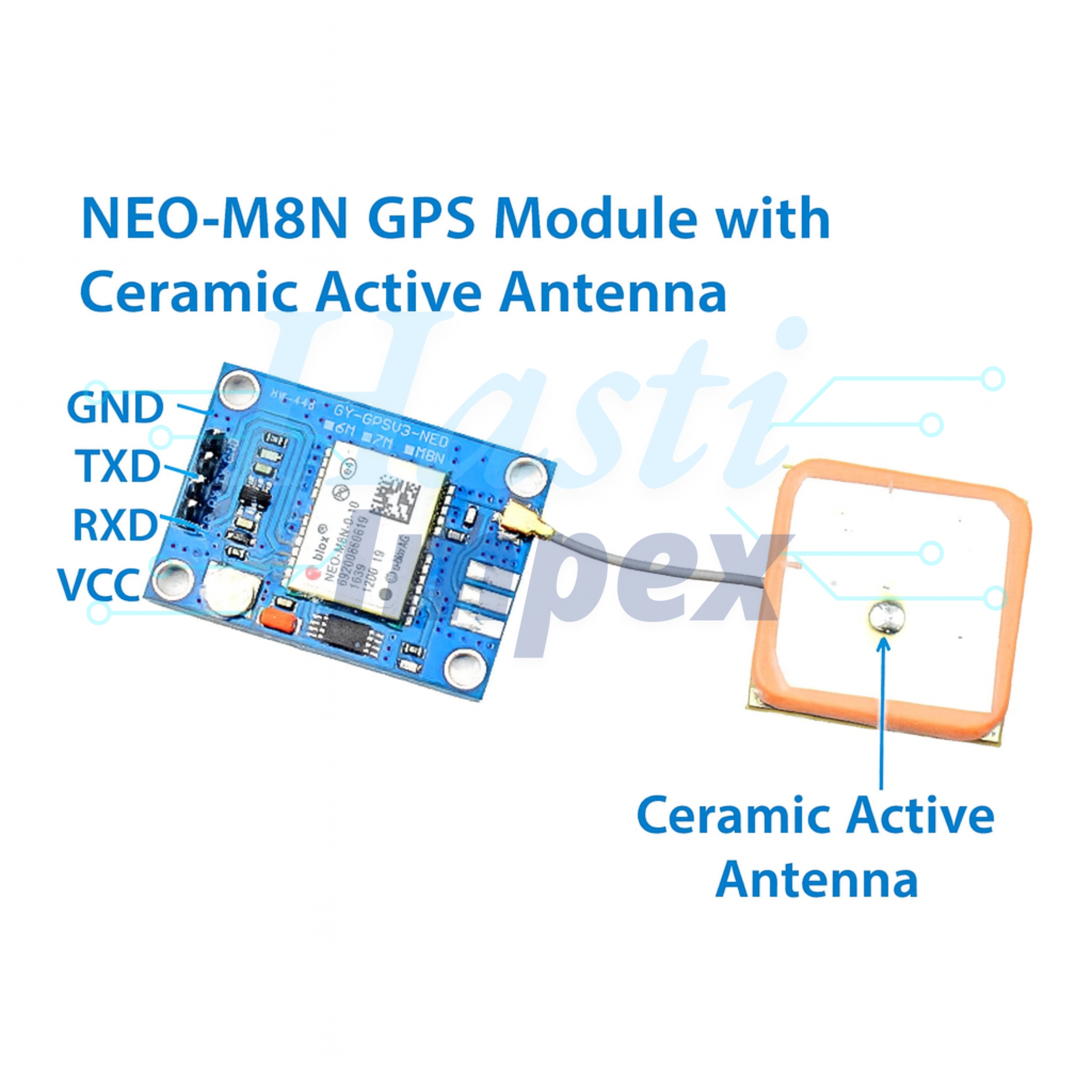

Diagram:
Specifications:
| GPS Chip | NEO-M8N |
| Positioning Systems Supported | GPS, GLONASS, Galileo, BeiDou |
| Channels | 72 channels |
| Update Rate | 1 Hz to 5 Hz |
| Antenna Type | Ceramic Active Antenna |
| Antenna Gain | 28 dB |
| Sensitivity | -165 dBm (tracking), -148 dBm (acquisition) |
| Accuracy | 2.5 meters (horizontal) |
| Power Supply | 3.0V to 5.5V DC |
| Power Consumption | 25 mA |
| Operating Temperature Range | -40°C to 85°C |
| Dimensions | 25mm x 25mm |
