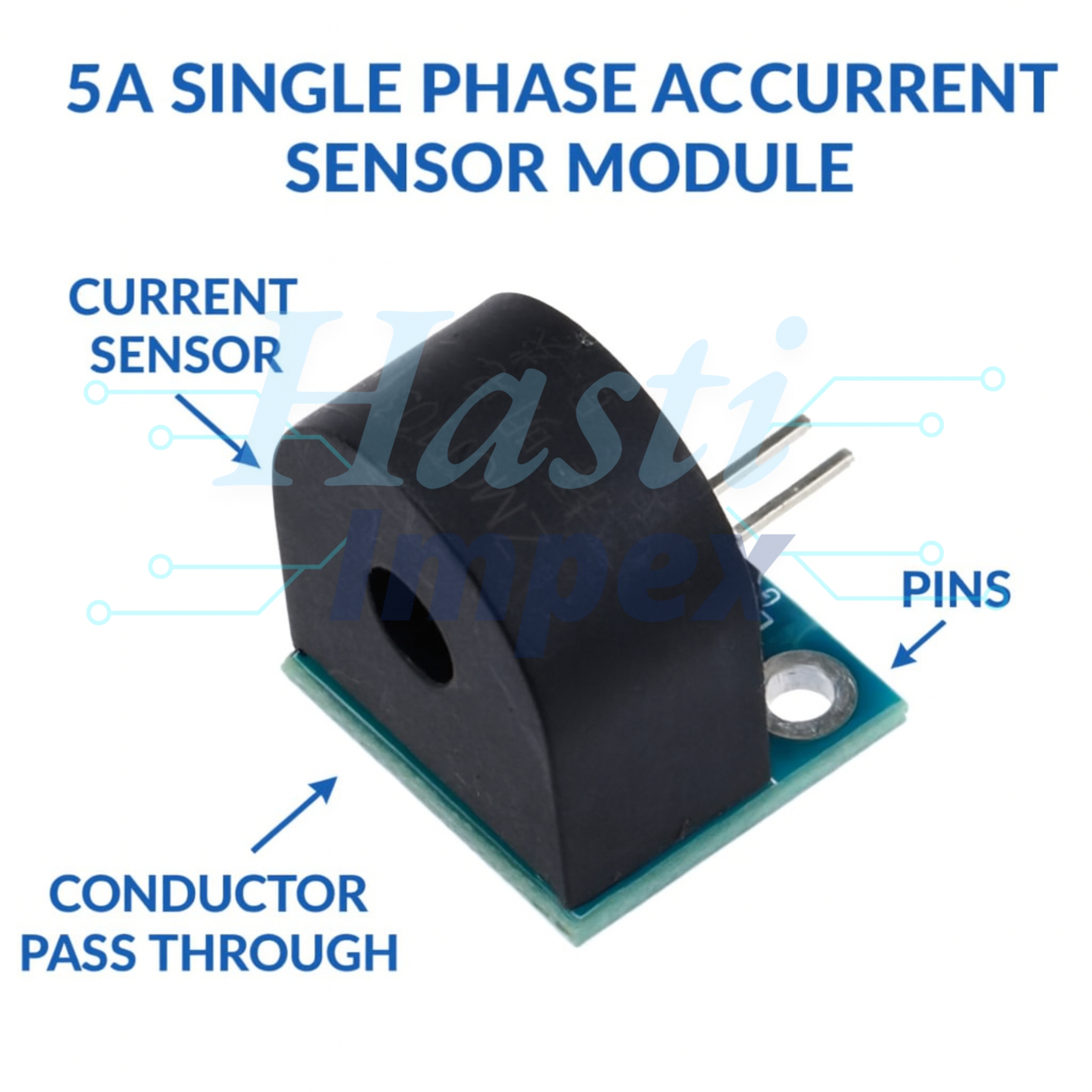

5A Single Phase AC Current Sensor Module
Description:
The 5A Single Phase AC Current Sensor Module is a device designed to measure alternating current (AC) flowing through a single-phase electrical circuit. Here's how it's typically used and its key features:
Usage:
-
Current Measurement: The primary function of the module is to measure the AC current flowing through the electrical conductor connected to it. It typically employs a hall-effect sensor or a current transformer to achieve this measurement.
-

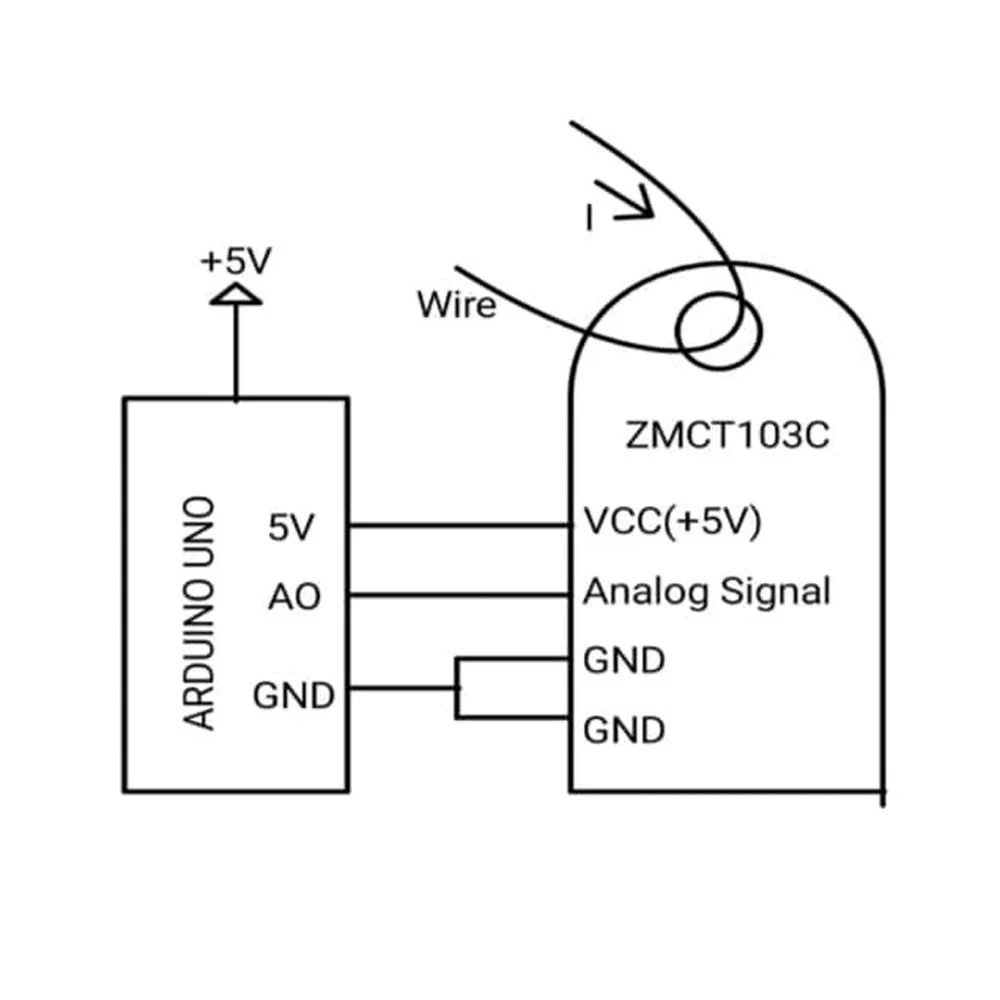

Interface Compatibility: The module usually provides an analog output signal proportional to the measured current. This signal can be interfaced with microcontrollers, analog-to-digital converters (ADCs), or other measurement devices for further processing and analysis.
-
Current Range: The module is designed to measure AC currents within a specific range, commonly up to 5 amps (hence the name "5A"). It's essential to ensure that the measured current does not exceed this range to prevent damage to the module.
-
Accuracy: The module's accuracy determines how closely the measured current corresponds to the actual current flowing through the circuit. Higher accuracy modules provide more precise measurements, which is crucial for applications requiring accurate current monitoring.
-
Isolation: Some versions of the module may feature isolation between the current-carrying conductor and the measurement circuitry for safety and noise reduction purposes. This isolation helps protect the measurement circuitry from high voltages and reduces the risk of electrical hazards.
Features:
-
Compact Size: The module typically comes in a compact form factor, making it easy to integrate into various electrical systems and installations.
-
Easy Installation: It's designed for easy installation in electrical circuits, with terminals or connectors provided for connecting the current-carrying conductor.
-
Low Power Consumption: The module usually has low power requirements, making it suitable for battery-powered or energy-efficient applications.
-
Non-Invasive Measurement: Some versions of the module utilize non-invasive current sensing techniques, such as hall-effect sensors, which do not require breaking the electrical circuit for installation. This simplifies installation and reduces downtime during installation.
-
Applications: The 5A Single Phase AC Current Sensor Module finds applications in various fields, including power monitoring, energy management systems, smart grid infrastructure, home automation, and industrial control systems, where monitoring and controlling AC currents are essential for operational efficiency and safety.
Overall, the 5A Single Phase AC Current Sensor Module provides a convenient and reliable solution for measuring AC currents in single-phase electrical circuits, offering accurate measurements, easy installation, and compatibility with a wide range of interface systems and applications.
