MQ4 - Methane Natural Gas Sensor Module
Description:
The MQ-4 methane/natural gas sensor module is commonly used to detect the presence of methane (CH4) and other combustible gases in the air. Here's how to use it:
-
Understanding the Sensor: The MQ-4 sensor operates on the principle of a chemical reaction between the gas molecules and the sensor's electrodes, leading to a change in electrical conductivity. This change is then measured and interpreted as the presence of methane or other combustible gases.
-

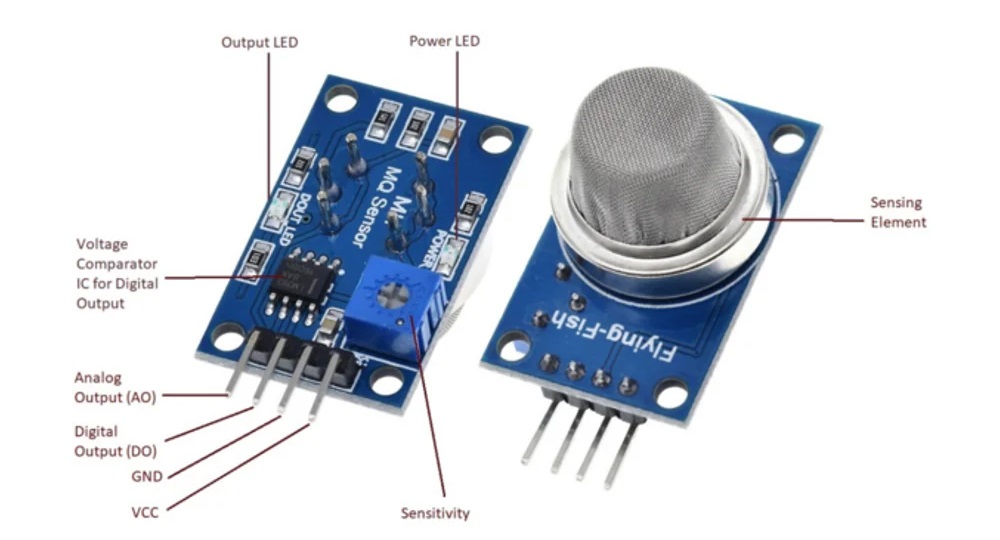

Connections: The MQ-4 sensor typically has four pins: VCC (power supply), GND (ground), AOUT (analog output), and DOUT (digital output). Connect VCC to a suitable power supply (usually 5V), GND to ground, and then either AOUT or DOUT depending on your preferred output type.
-
Calibration: Before use, the sensor often requires calibration. This involves exposing it to clean air for a certain period to establish a baseline reading. Calibration procedures may vary depending on the specific sensor and application, so refer to the manufacturer's instructions.
-
Powering Up: Once calibrated, apply power to the sensor module. It usually requires a warm-up time (usually a few minutes) for the sensor to stabilize and provide accurate readings.
-
Reading Output: If you've connected to the AOUT pin, you'll get an analog voltage output proportional to the methane concentration in the air. If you've connected to the DOUT pin, you'll get a digital signal that switches from low to high when the methane concentration exceeds a certain threshold.
-
Interpretation: Interpret the sensor output based on your project requirements. You may need to convert the analog voltage to a concentration value using a suitable calibration curve or simply monitor the digital output for threshold crossing.
-
Safety Considerations: Keep in mind that the MQ-4 sensor is sensitive to various gases, including methane and other combustible gases. Ensure proper ventilation and avoid exposure to potentially hazardous concentrations during testing.
-
Integration: Depending on your project, you may need to integrate the sensor with a microcontroller (e.g., Arduino, Raspberry Pi) for data processing, display, or further action based on the detected methane concentration.
