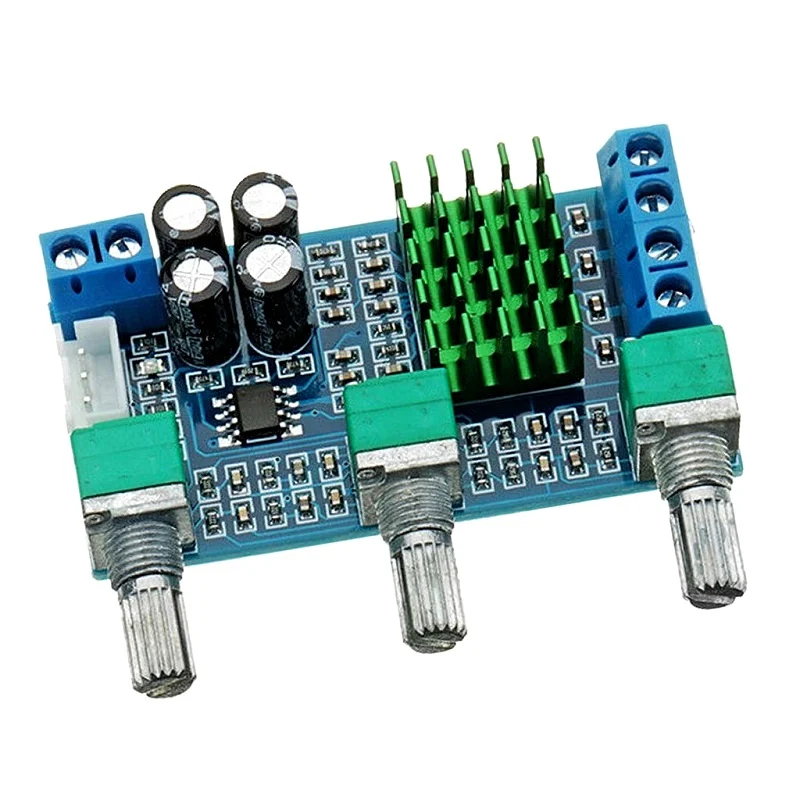

TPA3116D2 12 to 24V DC Dual Channel 2 x 80W Audio Power Amplifier
Description:
TPA3116D2 is a high-performance, Class D audio power amplifier designed for driving high-quality audio applications. This amplifier is equipped with advanced features such as low distortion, high efficiency, and superior sound quality, making it ideal for use in home audio systems, car audio, and other high-fidelity audio setups. Operating within a 12V to 24V DC power supply range, the TPA3116D2 is capable of delivering 2 x 80W of output power (with 24V DC input) to produce rich, clear sound, even at higher volumes.
Features:
1. Dual Channel Output (2 x 80W)
2. Efficient Class D Amplification
3. Wide Voltage Range
4. Low Total Harmonic Distortion (THD)
5. Thermal Protection and Overload Protection
6. Compact and Efficient Design
7. Soft Start Function
8. PCB Mountable
9. Low Noise Performance

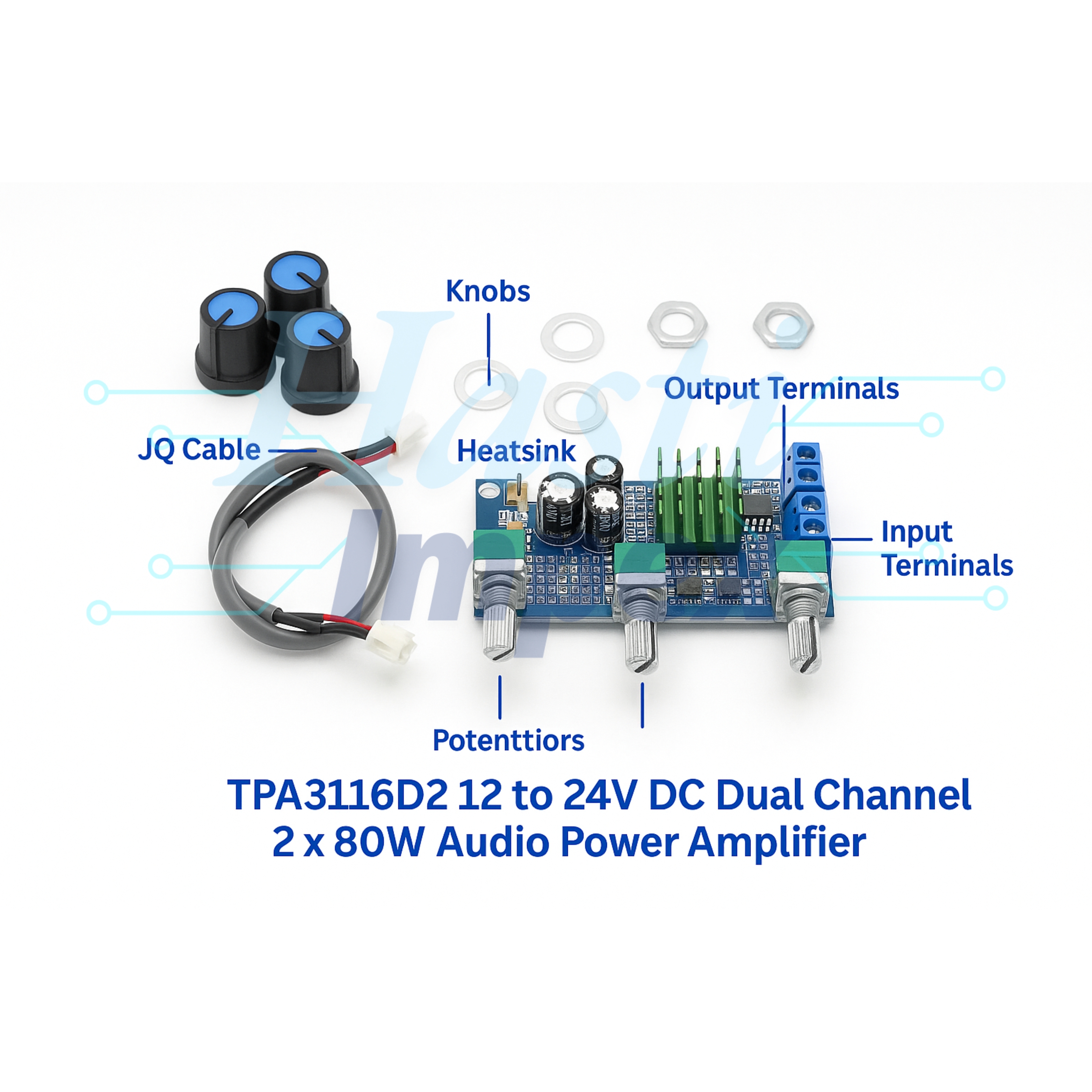

Diagram:
Specifications:
| Amplifier Type | Class D |
| Power Supply Input | 12V to 24V DC |
| Output Channels | Dual channel |
| Output Power | 24V DC |
| Class D Efficiency | >90% |
| Total Harmonic Distortion (THD) | < 0.1% at 1W (1kHz) |
| Signal-to-Noise Ratio (SNR) | > 100dB |
| Operating Temperature | -40°C to 85°C |
| Input Voltage Range | 12V to 24V DC |
| Input Impedance | 20kΩ |
| Length X Width X Height | 50 X 40 X 10mm |
| Weight | 30 to 50 grams |
