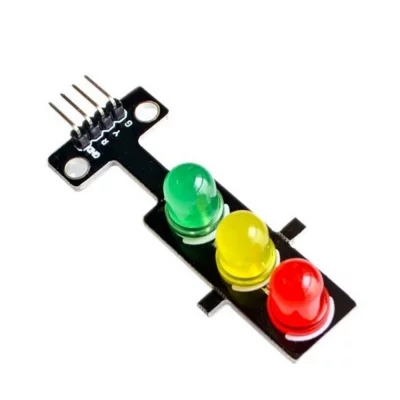

LED Traffic Lights Signal Module / Digital Signal Output Traffic Light Module
Description:
LED Traffic Lights Signal Module (also known as the Digital Signal Output Traffic Light Module) is a specialized device used to simulate or implement a traffic light system in a variety of applications, including model traffic systems, traffic signal simulation, training purposes, educational projects, and embedded systems. This module is designed with high-intensity LEDs that simulate standard traffic light signals (Red, Yellow, and Green), providing a realistic and energy-efficient solution for controlling traffic lights in projects or traffic management systems.
Features:
1. Realistic LED Traffic Light Simulation
2. Digital Signal Output
3. Versatile Application
4. Energy Efficient
5. Traffic Light Sequencing
6. Multiple Output Channels
7. Simple and Easy Integration
8. Adjustable Timing Control
9. Durability
10. Compact Design

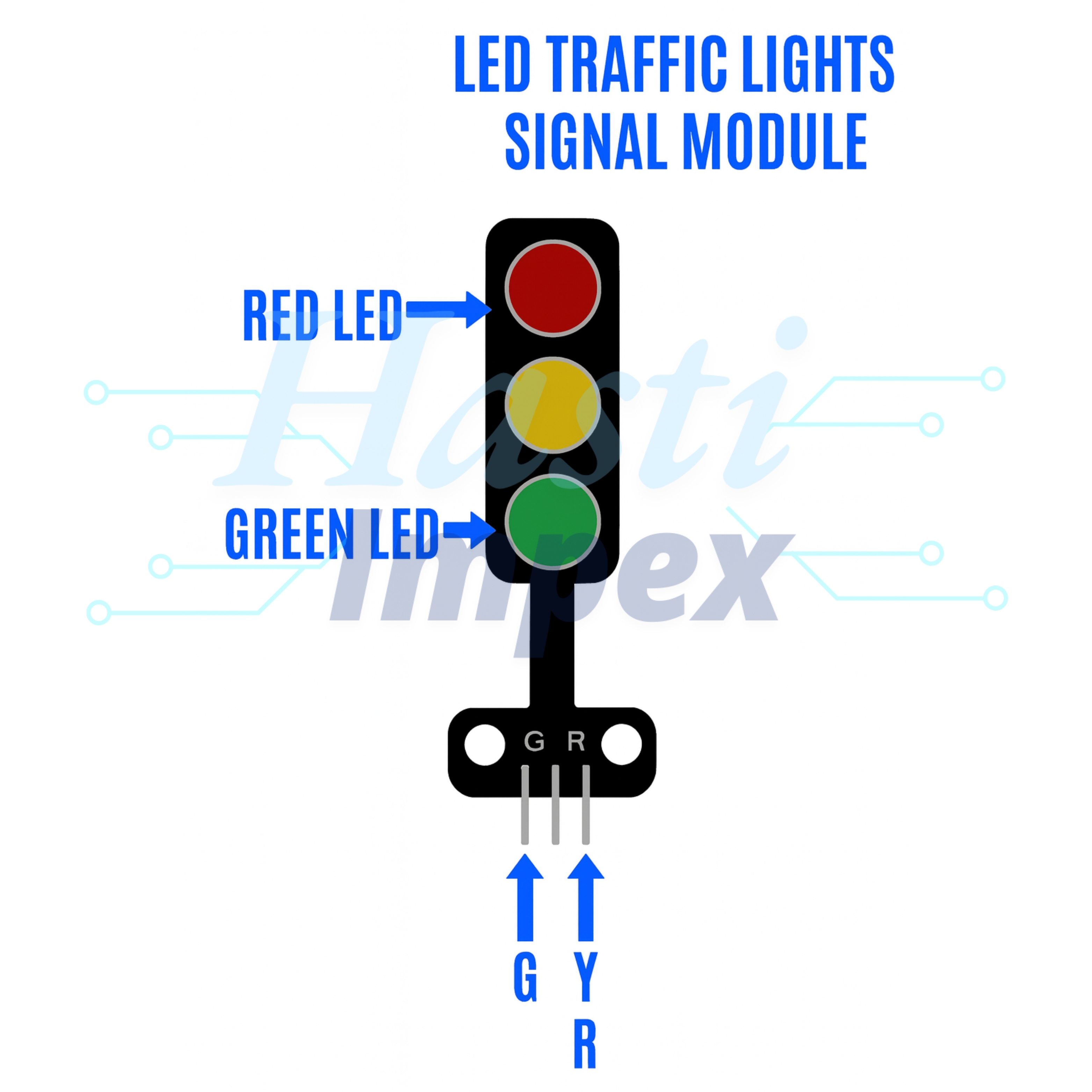

Diagram:
Specifications:
| LED Colors | Red, Yellow, and Green |
| Input Voltage | 5V DC |
| Digital Signal Output | HIGH (1) and LOW (0) |
| LED Power Consumption | 100mA |
| Size | 50mm x 40mm |
| Signal Sequencing | Red → Green → Yellow → Red |
| Long Lifespan | 50,000 hours |
| Operating temperature | -10°C to +60°C |
