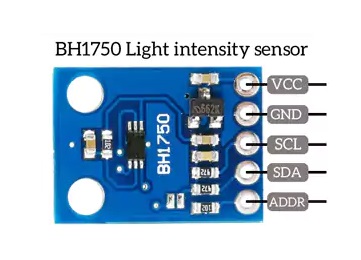

BH1750 - Light Intensity Sensor Module
Description:
The BH1750 is a digital ambient light sensor module capable of measuring the intensity of light in its environment. It's widely used in applications such as automatic brightness adjustment for displays, IoT devices, and ambient light monitoring systems. Here's how you can use it:
-

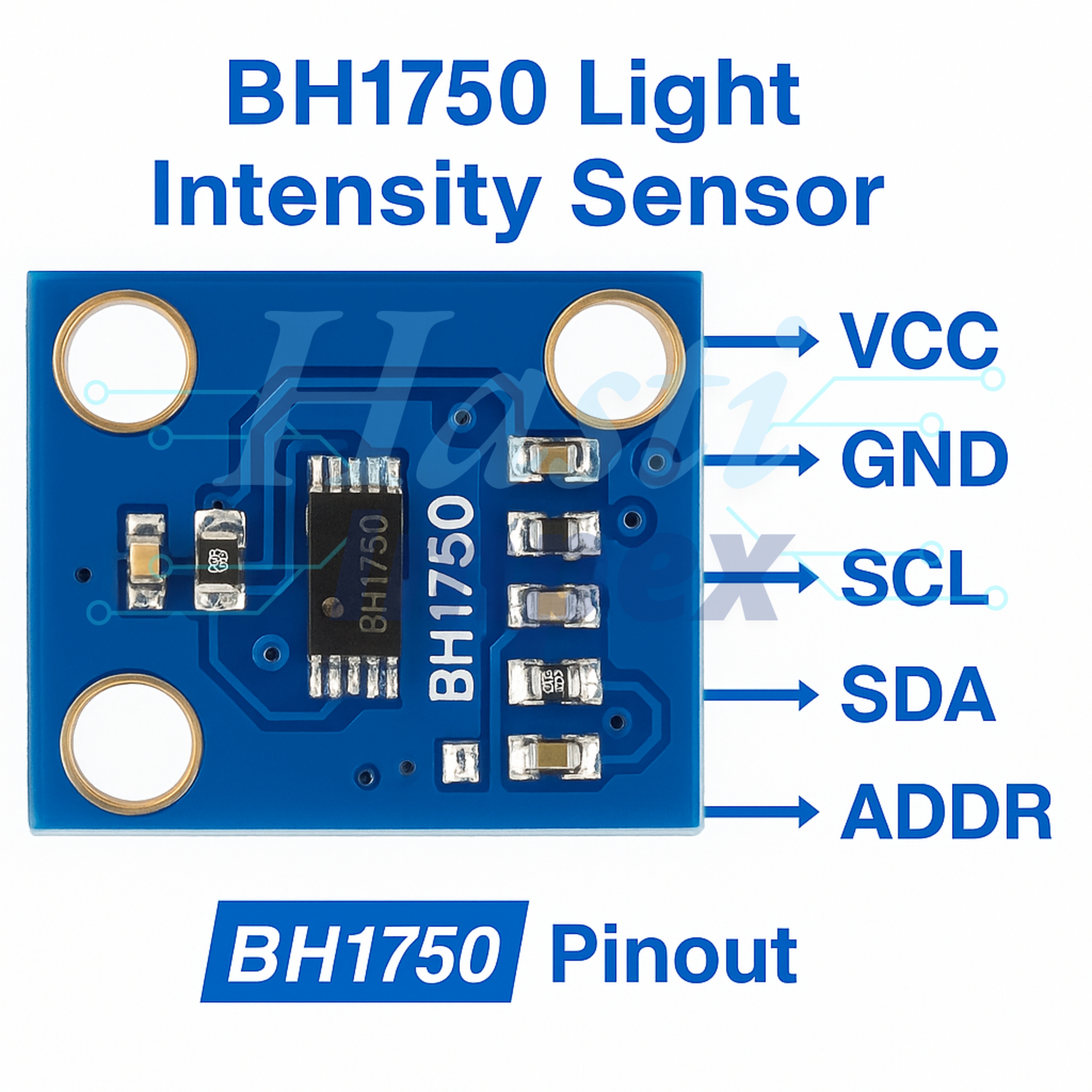

Wiring: Connect the BH1750 sensor module to your microcontroller or development board. The module typically has four pins: VCC (power supply), GND (ground), SDA (serial data), and SCL (serial clock). Connect VCC to a 3.3V or 5V power source, GND to ground, SDA to the data (SDA) pin of your microcontroller, and SCL to the clock (SCL) pin of your microcontroller. If your microcontroller operates at 5V logic levels, you may need level shifters or voltage dividers to interface with the BH1750, as it operates at 3.3V logic levels.
-
Library Installation: Before you can use the BH1750 sensor, you need to install the appropriate library for your microcontroller platform. Libraries are available for popular platforms like Arduino, Raspberry Pi, and others. You can usually install these libraries using the library manager of your integrated development environment (IDE) or by downloading them from the internet and manually installing them.
-
Initialization: In your code, initialize the BH1750 sensor by configuring its settings. This typically involves sending commands to the sensor to set the measurement mode and resolution. You can set parameters such as continuous measurement mode, resolution (e.g., high resolution or low resolution), and measurement time.
-
Reading Data: Once the sensor is initialized, you can start reading light intensity data from it. The sensor provides digital output in lux units, representing the intensity of light in its environment. Depending on the measurement mode and resolution settings you've chosen, you may need to wait for a certain amount of time before reading the data to ensure accurate measurements.
-
Interpretation: After reading the data from the sensor, you can interpret the light intensity values according to your application's requirements. You may use the data to adjust the brightness of a display, trigger certain actions based on ambient light conditions, or log the data for further analysis.
-
Integration: Integrate the BH1750 sensor into your project by incorporating the light intensity data into your code and connecting it to other components or systems as needed.
