HC-05 Bluetooth Module with TTL Output
Description:
HC-05 Bluetooth Module with TTL Output is one of the most popular and widely used Bluetooth communication modules in embedded systems, DIY electronics, and microcontroller projects. It provides an easy way to add wireless communication capabilities to a wide range of devices. The HC-05 is often used in applications that require wireless data transfer, such as remote control systems, wireless sensor networks, and IoT (Internet of Things) projects.
HC-05 Bluetooth module is a small and low-cost module that allows for wireless communication between devices via Bluetooth. It is designed to be used in projects that require a simple and reliable way to transmit data wirelessly. It is commonly used with microcontrollers like Arduino, Raspberry Pi, and other embedded systems. The HC-05 module is a Bluetooth 2.0+EDR (Enhanced Data Rate) module, which supports a range of up to 100 meters in open space (with optimal conditions) and provides reliable, low-power communication for various applications
Features:
1. Bluetooth 2.0 + EDR (Enhanced Data Rate) Support
2. TTL Serial Communication (UART Interface)
3. Master and Slave Modes
4. Easy Configuration with AT Commands
5. Range
6. Low Power Consumption
7. Integrated Bluetooth Antenna
8. LED Indicators
9. Small Form Factor:
10. Widely Compatible with Microcontrollers
11. Simple Pin Connections
12.Compatibility with Smartphone Apps
13. Universal Serial Interface (USB Support)
14. Security

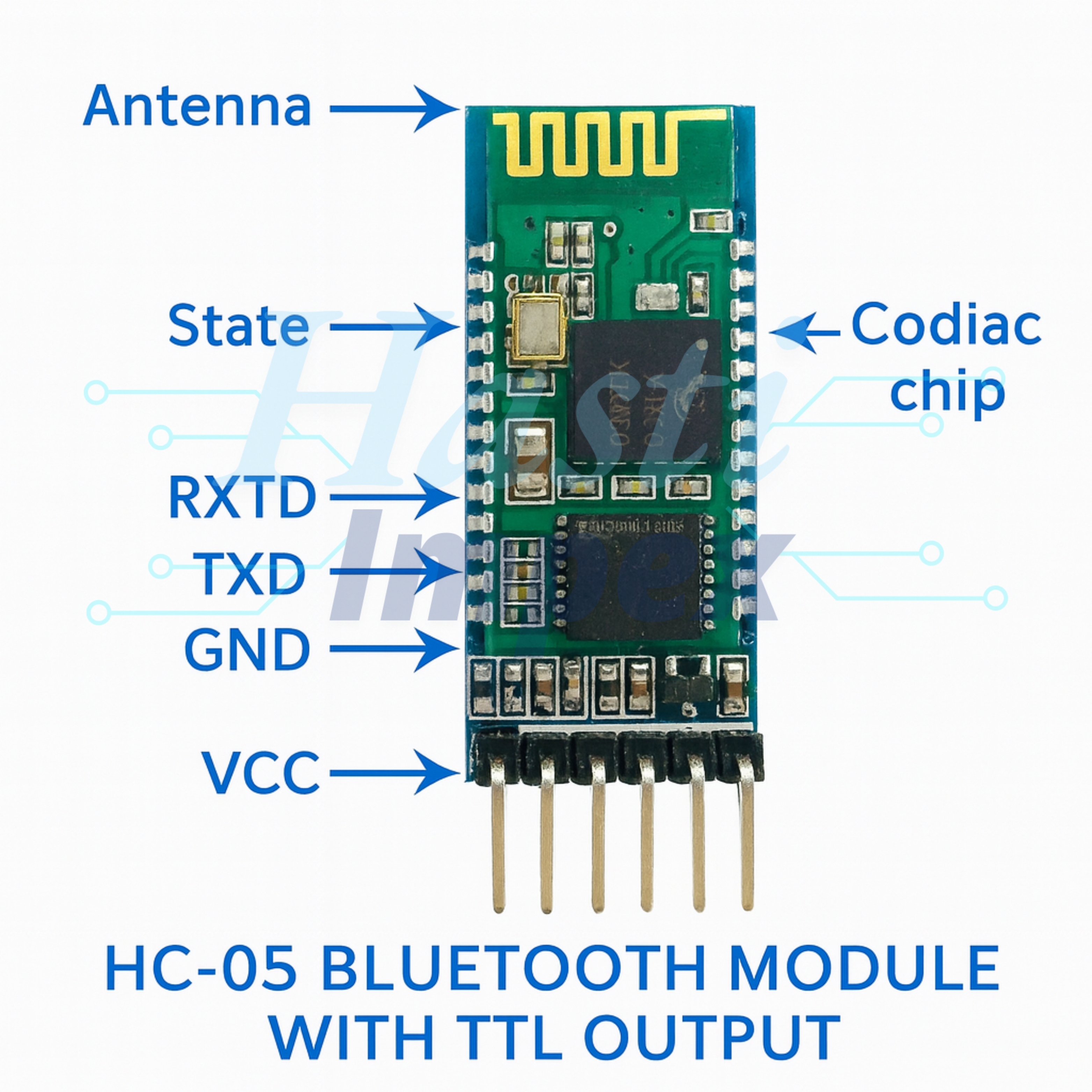

Diagram:
Specifications:
| Item Type | HC Series Module |
| Switch (Y/N) | NO |
| Frequency | 2.4GHz ISM band |
| Modulation Type | GFSK (Gaussian Frequency Shift Keying) |
| Emission power | ≤4dBm, Class 2 |
| Range of operation (m) | 8 ~ 10 |
| Length (mm) | 44 |
| Width (mm) | 16.5 |
| Height (mm) | 7 |
| Weight (g) | 5 |
