Description:

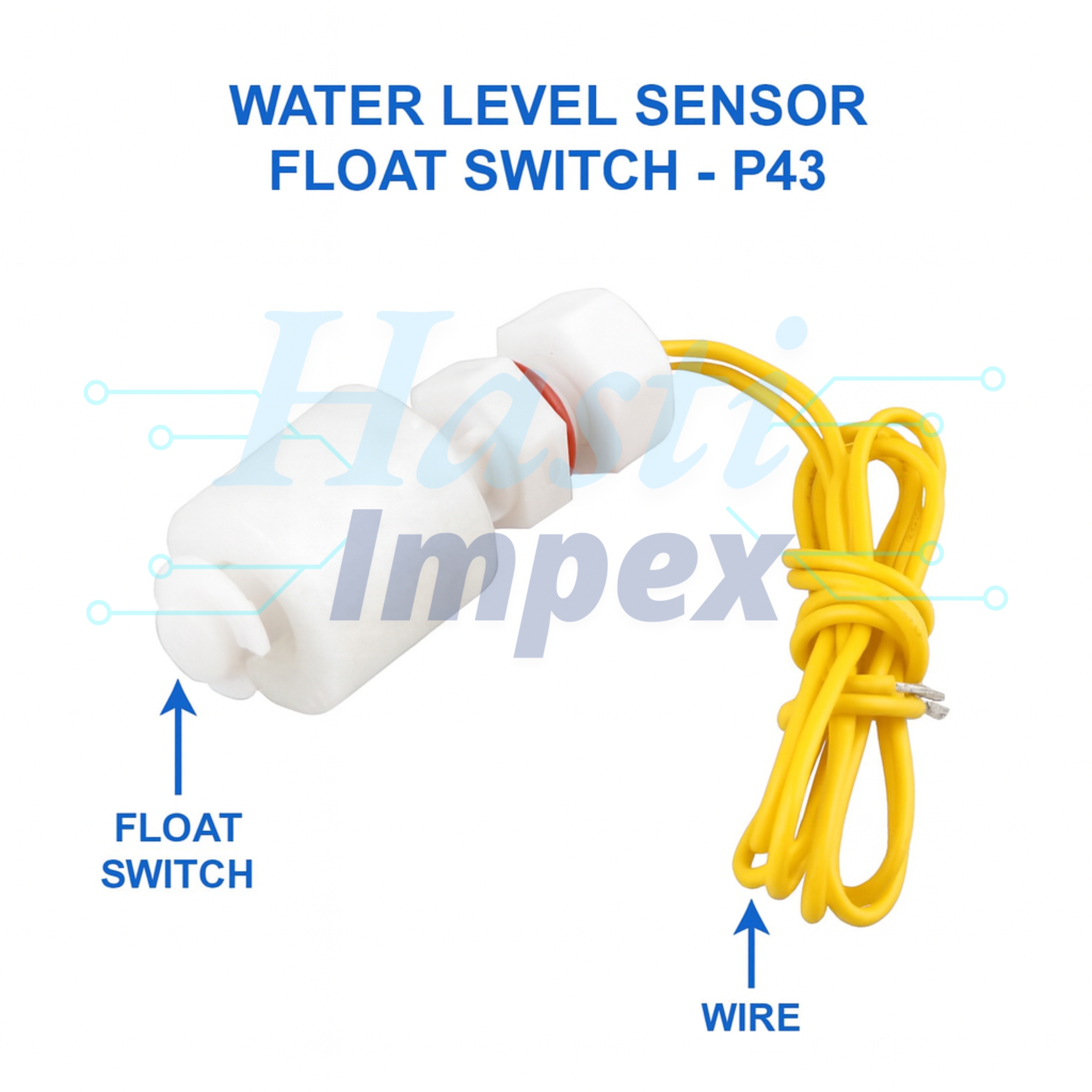

The Water Level Sensor Float Switch - P43 is a mechanical device used to detect the level of liquids in tanks, reservoirs, and other containers. It operates based on the buoyancy principle, using a float that rises and falls with the liquid level, triggering a switch when a certain level is reached. Here’s a detailed overview of its use and description:

Description

• Type: Water Level Sensor Float Switch
• Model: P43
• Operating Voltage: Typically low voltage, such as 5V or 12V DC (depends on the specific switch specifications)
• Current Rating: Varies, often capable of switching currents up to 1A or higher (check specific product datasheet)
• Materials: Commonly made of durable plastic or stainless steel to resist corrosion
• Contact Form: SPST (Single Pole Single Throw) or SPDT (Single Pole Double Throw), depending on the model
• Mounting: Vertical or horizontal, based on the design

Features

1. Simple Operation:

   • Uses a buoyant float to mechanically activate a switch as the water level changes.

2. Reliable and Durable:

   • Constructed from materials resistant to corrosion and suitable for various liquids, including water, oil, and chemicals.

3. Versatile Mounting:

   • Available in designs for vertical or horizontal mounting to accommodate different tank configurations.

4. Electrical Contacts:

   • Provides normally open (NO) or normally closed (NC) contacts for versatile wiring options.

5. Compact Design:

   • Small and easy to install in tanks and containers.

Technical Specifications

• Operating Voltage: Usually low voltage, such as 5V, 12V, or 24V DC
• Max Switching Current: Typically up to 1A (check specific switch for exact rating)
• Contact Form: SPST or SPDT
• Materials: Plastic (polypropylene, ABS) or stainless steel
• Operating Temperature Range: -10°C to 80°C (may vary by model)
• Mounting Style: Vertical or horizontal

Use

1. Liquid Level Control:

   • Automatically turn pumps on or off to maintain desired liquid levels in tanks, sumps, and reservoirs.

2. Overflow Prevention:

   • Prevent overflow in tanks by triggering an alarm or shutting off the inlet valve when the liquid reaches a certain level.

3. Low-Level Warning:

   • Detect low liquid levels to prevent dry running of pumps and other equipment.

4. Industrial Processes:

   • Used in various industrial applications for controlling liquid levels in processing tanks and chemical baths.

Installation and Setup

1. Mounting:

   • Choose a vertical or horizontal mounting position based on the specific model and tank configuration. Ensure the switch is securely mounted to prevent movement.

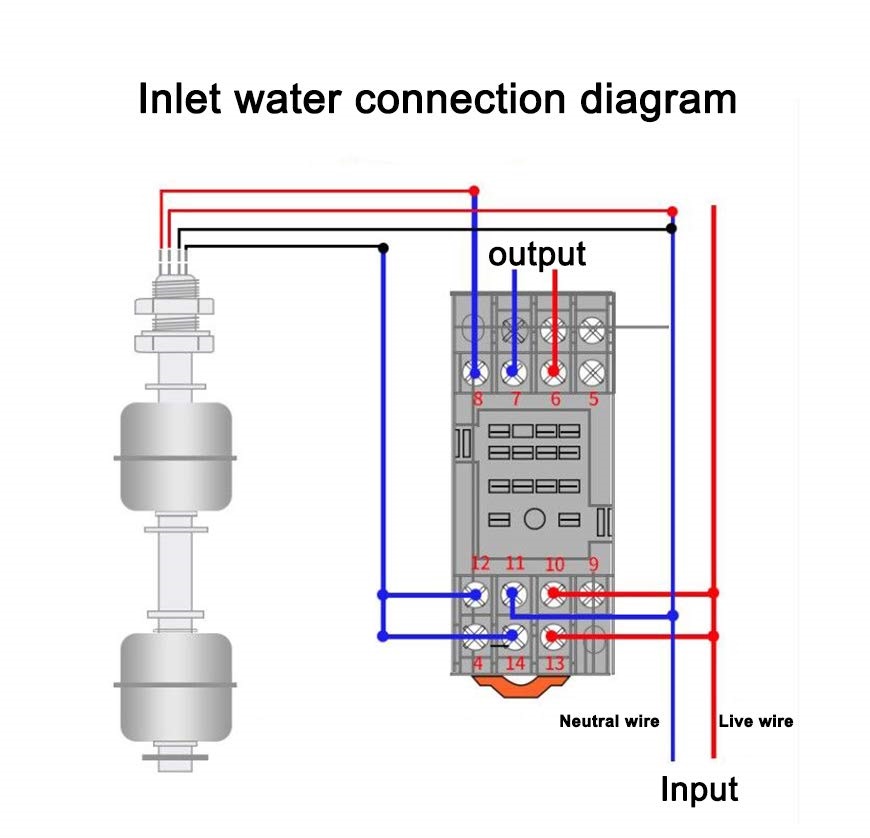

2. Wiring:

   • Connect the switch to the control circuit using appropriate wires. Depending on the contact form (NO or NC), connect the wires to the appropriate terminals for the desired operation (e.g., turning a pump on or off).

3. Testing:

   • Test the switch by manually moving the float to ensure it triggers the switch correctly. Verify that the connected equipment (pump, alarm, etc.) responds appropriately.

Example Application

Suppose you have a water tank and want to maintain the water level automatically using the P43 float switch:

1. Mount the float switch: Vertically near the desired high water level.
2. Wire the switch: Connect the switch to the control input of a pump controller.
3. Set the desired level: Adjust the float position if needed to ensure the switch activates at the correct water level.
4. Test the setup: Fill the tank with water and observe the float switch operation, ensuring the pump turns on/off as needed.

Applications

1. Water Tanks:
   • Maintain water levels in residential and commercial water tanks.
2. Aquariums:
   • Automatically refill aquariums to maintain a stable water level.
3. Sump Pumps:
   • Control sump pumps to prevent basement flooding.
4. Industrial Processes:
   • Manage liquid levels in industrial tanks and chemical processing units.
5. Irrigation Systems:
   • Control water levels in irrigation tanks and reservoirs.

Conclusion

The Water Level Sensor Float Switch - P43 is a reliable and simple solution for monitoring and controlling liquid levels in various applications. Its durable construction, versatile mounting options, and straightforward operation make it suitable for a wide range of uses, from home water tanks to industrial liquid management systems. By providing reliable level detection and control, the P43 helps ensure the efficient and safe operation of liquid handling systems.
