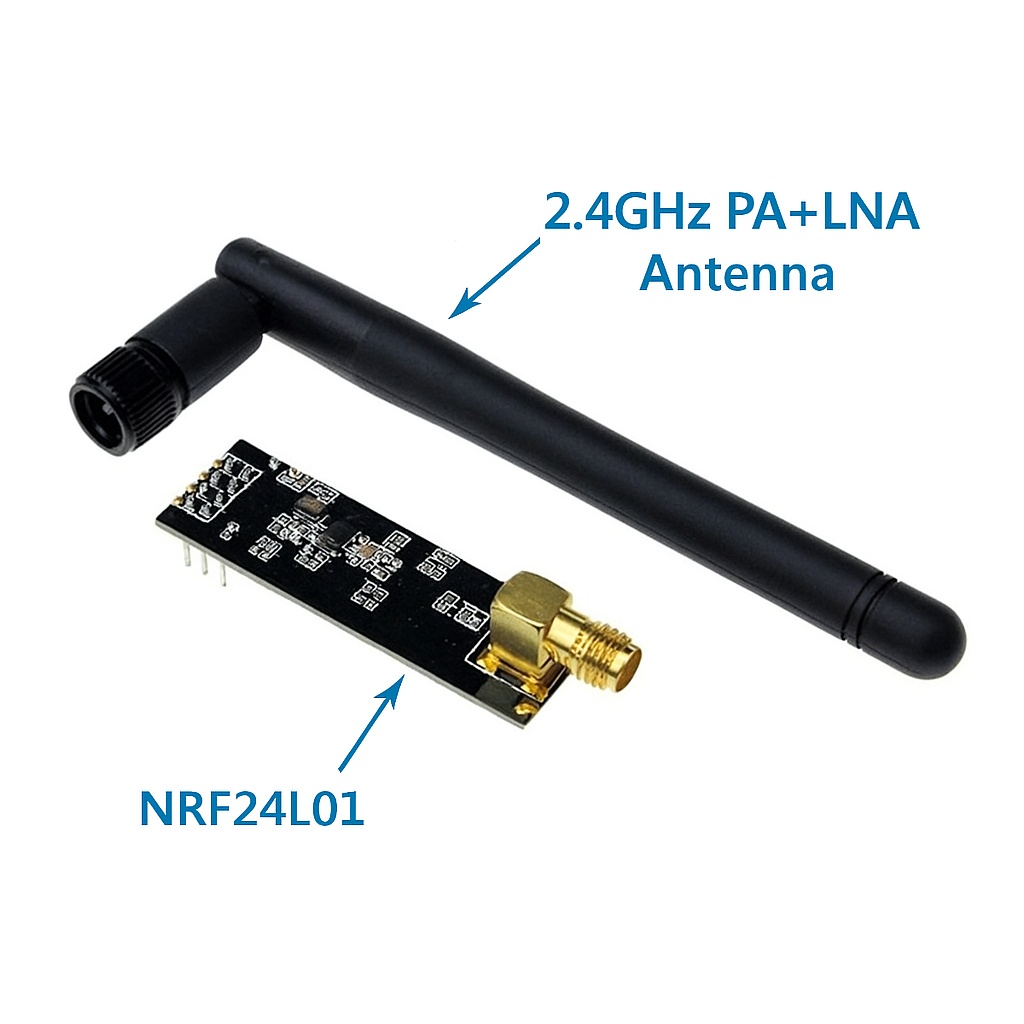

NRF24L01 2.4GHz PA+LNA SMA Wireless Transceiver Module with Antenna
Description:
NRF24L01 2.4GHz Wireless Transceiver Module is a compact and highly versatile wireless communication module that operates in the 2.4GHz ISM (Industrial, Scientific, and Medical) band, making it ideal for short-range wireless communication applications. It is based on the NRF24L01 chipset, developed by Nordic Semiconductor, and is widely used in various wireless projects due to its ease of use, low power consumption, and reliable performance.
This module supports high-speed data transfer (up to 2 Mbps) and is often utilized in wireless sensor networks, IoT applications, remote control systems, wireless data logging, and low-power communication devices. The NRF24L01 module can be interfaced with microcontrollers like Arduino, Raspberry Pi, and other embedded systems to create wireless communication between devices over short to medium-range distances (typically up to 100 meters depending on environmental conditions).
Features:
1. 2.4GHz ISM Band
2. Full-Duplex Communication
3. High Data Transfer Rate
4. Low Power Consumption
5. Multi-Channel Communication
6. Built-in 6-Pin Interface
7. Error Checking and Acknowledgment
8. Supports Point-to-Point and Multi-Point Networks
9. Enhanced Versions
Diagram:
Specifications:
| Operating Voltage | 1.9V to 3.6V |
| Operating Frequency | 2.4GHz ISM band |
| Data Rate | Up to 2 Mbps |
| Antenna Type | PCB antenna |
| Output Power | -18 dBm to +0 dBm |
| Receiver Sensitivity | -92 dBm |
| Interface | SPI (Serial Peripheral Interface) |
| Size | Approx. 26mm x 19mm |
| Operating Temperature | -40°C to +85°C |
| Pins | 8 pins |
