DS18B20 Temperature Sensor Module
Description:
The DS18B20 is a digital temperature sensor that communicates over a one-wire interface. Here's a general guide on how to use it:
-

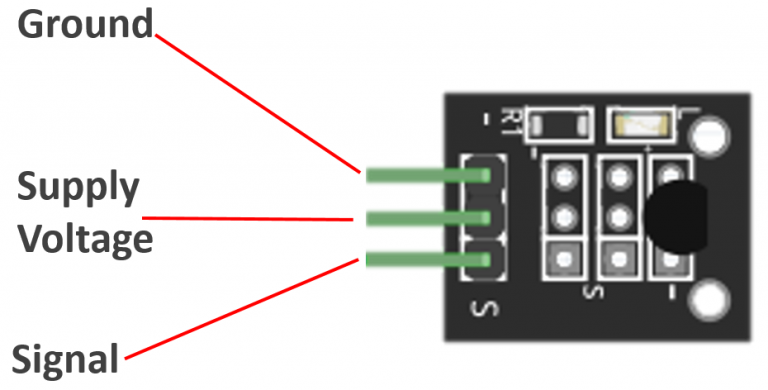

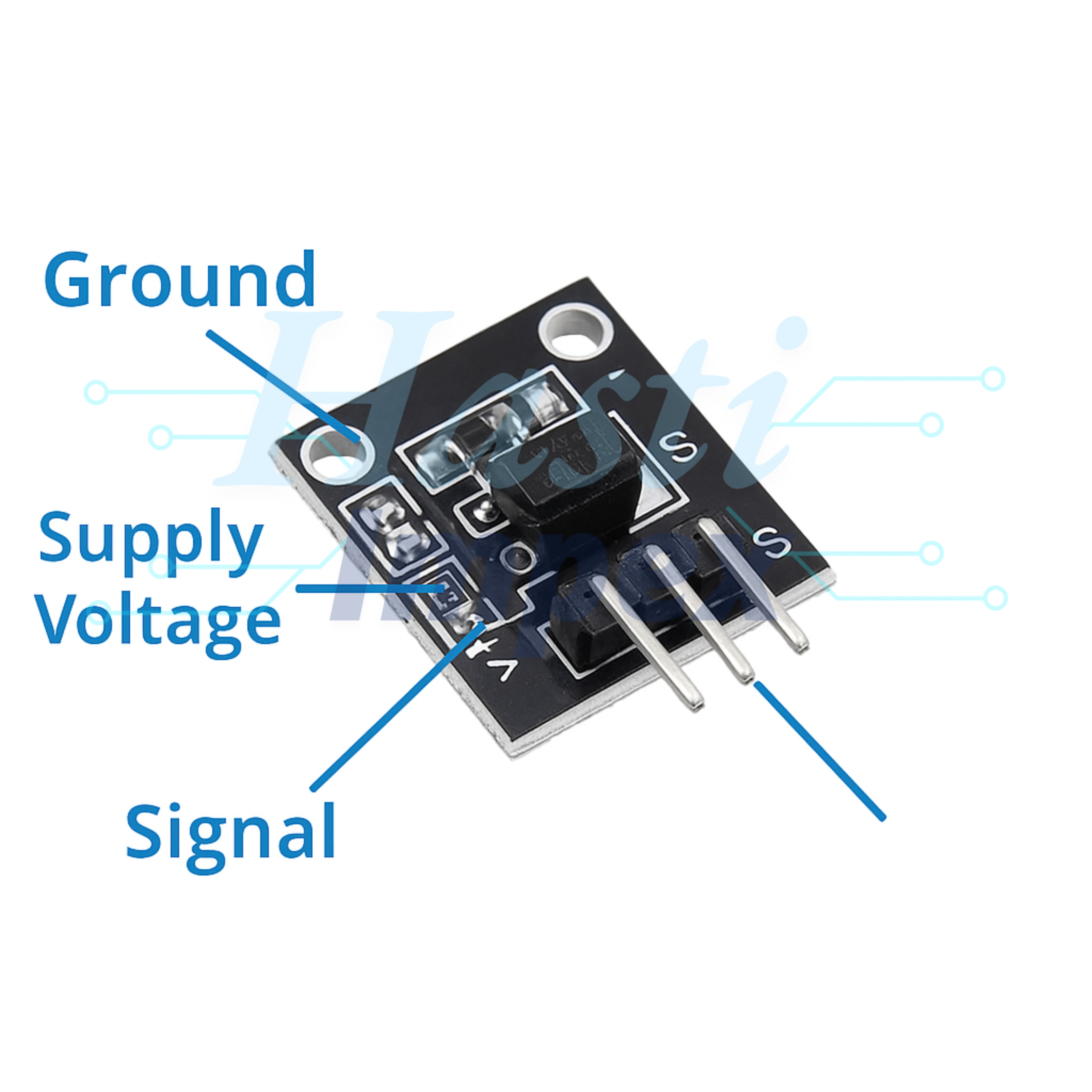

Wiring: Connect the DS18B20 sensor to your microcontroller or development board. It only requires three connections: VCC (power), GND (ground), and DATA (data line). Make sure to add a pull-up resistor (usually around 4.7kΩ) between the DATA line and VCC.
-
Library: Most microcontroller platforms have libraries available for interfacing with the DS18B20. These libraries simplify the process of reading data from the sensor. If there isn't a library available for your platform, you might need to write your own code to communicate with the sensor.
-
Initialization: Initialize the one-wire bus and the DS18B20 sensor. This typically involves sending initialization commands to the sensor to start temperature conversion.
-
Reading Temperature: After initialization, you can start reading temperature data from the sensor. The DS18B20 converts temperature readings to a digital format, which you can then read from the sensor via the one-wire interface.
-
Conversion: Convert the raw temperature data to a human-readable format. The DS18B20 typically provides temperature data in degrees Celsius, but you can convert it to Fahrenheit or Kelvin if needed.
-
Integration: Integrate the temperature data into your project or application. This could involve displaying the temperature on an LCD screen, logging it to a file, or using it to control other parts of your project based on temperature thresholds.
