RS485 to TTL Converter Module Serial Port UART Hardware Automatic Flow Control Module
Description:
RS485 to TTL Converter Module Serial Port UART Hardware Automatic Flow Control Module is a specialized communication module that allows seamless communication between RS485 devices and TTL (Transistor-Transistor Logic) level devices, such as microcontrollers, single-board computers (like Arduino or Raspberry Pi), and other digital systems. It is commonly used for long-distance, robust, and reliable serial communication systems, enabling the connection of RS485 devices with systems that use TTL signals for communication.
This module is equipped with features such as automatic flow control, providing reliable and error-free data transmission, which is essential for applications involving large-scale industrial or automation systems. The converter supports the RS485 protocol, which is known for its ability to communicate over long distances, while also offering TTL logic levels to interface directly with low-voltage logic devices.
Features:
1. RS485 to TTL Conversion
2. Automatic Flow Control
3. High-Quality and Reliable Communication
4. Support for Half-Duplex and Full-Duplex Communication
5. Wide Voltage Range
6. Compact and Easy to Use
7. Easily Interface with Microcontrollers and Single-Board Computers
8. Industrial and Commercial Applications
9. Onboard Protection
10. Easy Integration and Programming

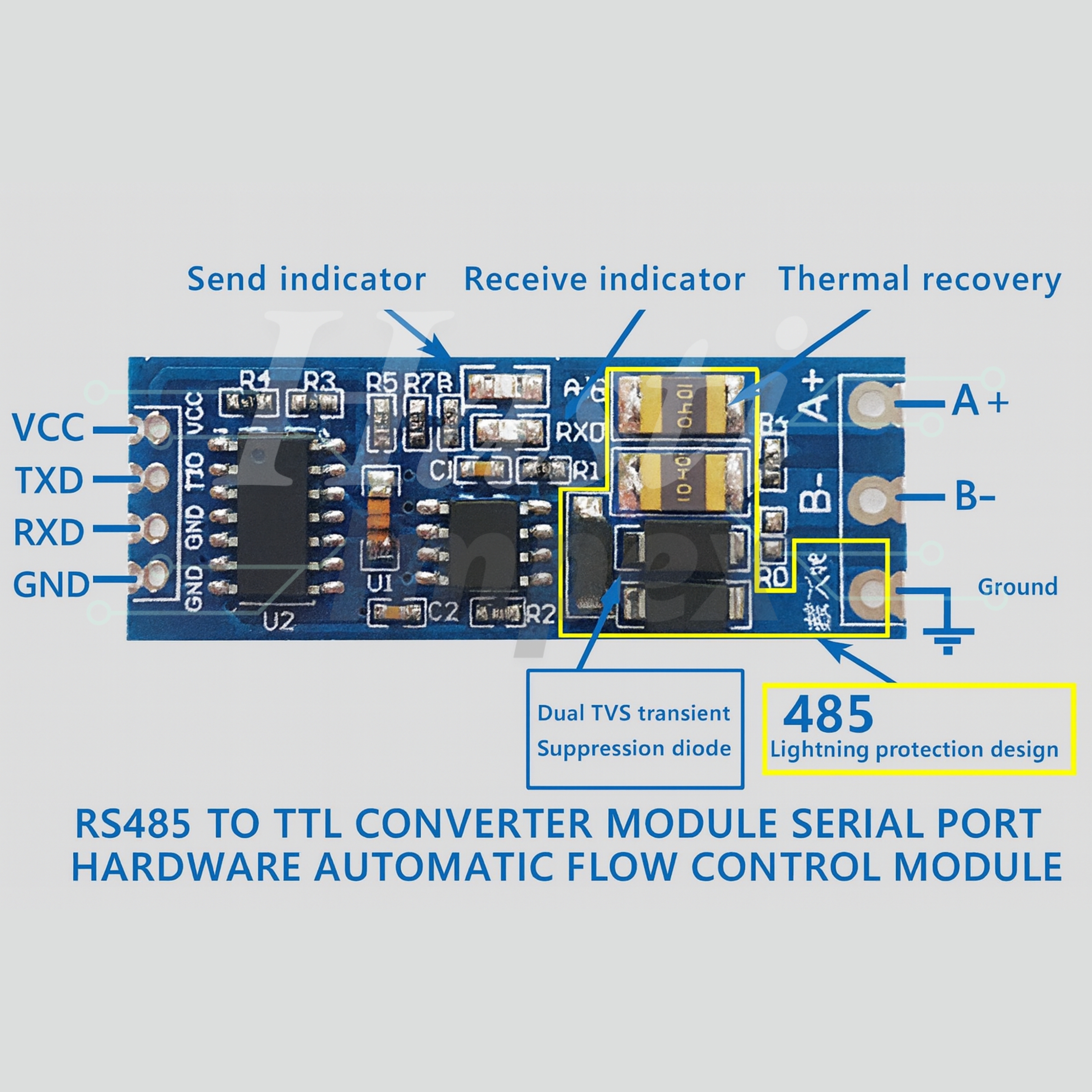

Diagram:
Specifications:
| TTL Logic Levels | 3.3V or 5V |
| Operating Voltage | 5V to 12V |
| Data Rate | 10 Mbps |
| Maximum Transmission Distance | 1200 meters |
| Dimensions | 30mm x 20mm |
| Weight | 10-20 grams |
| Operating Temperature Range | -40°C to +85°C |
