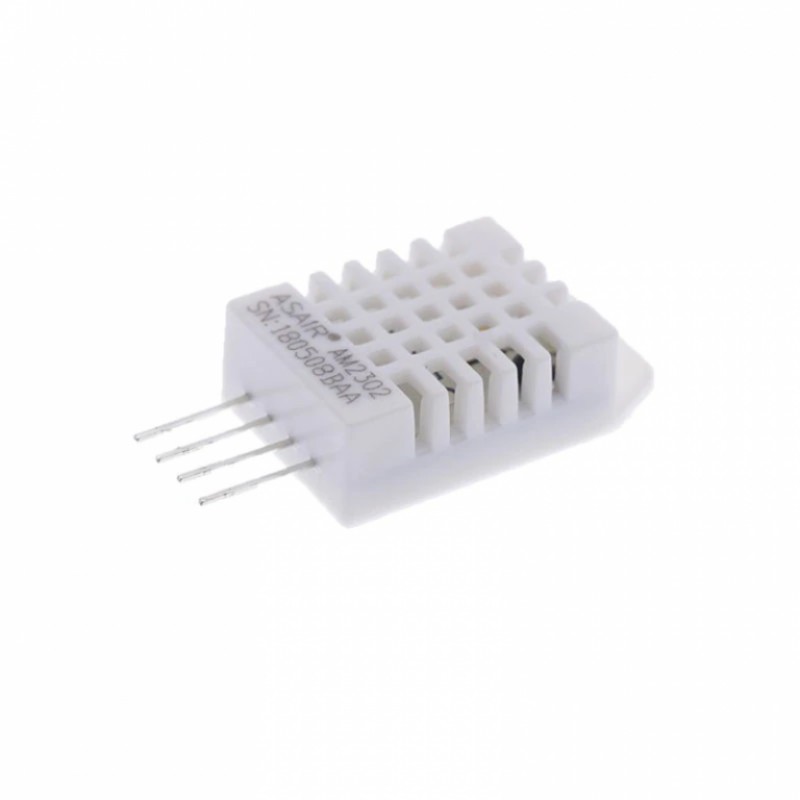

DHT22 AM2302 Digital Temperature and Humidity Sensor
Description:
The DHT22 (also known as the AM2302) is a popular digital temperature and humidity sensor module. It's commonly used in various projects, including weather stations, environmental monitoring systems, and home automation setups. Here's how you can use it:
-

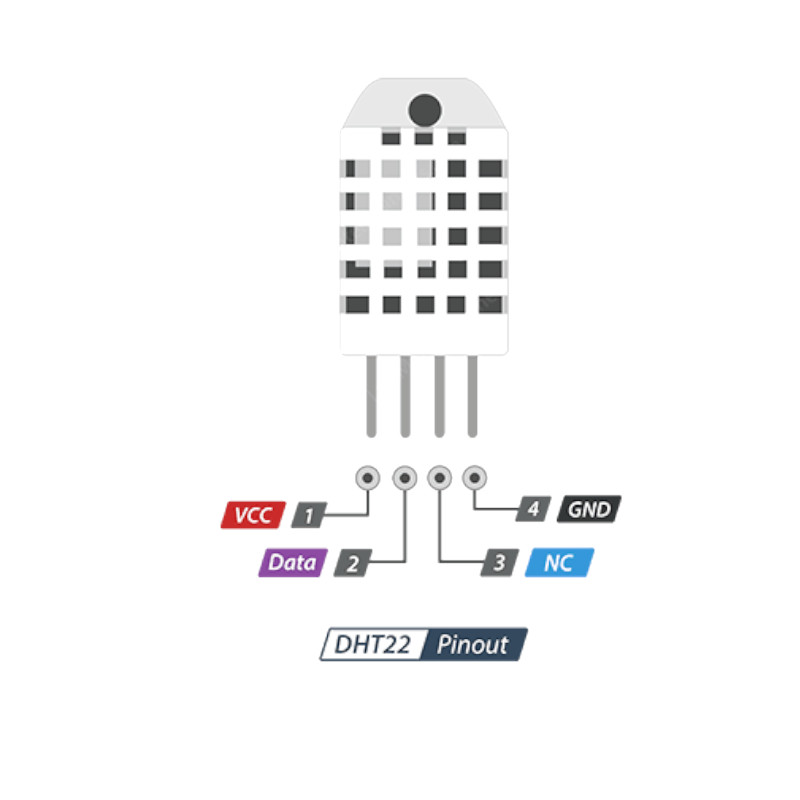

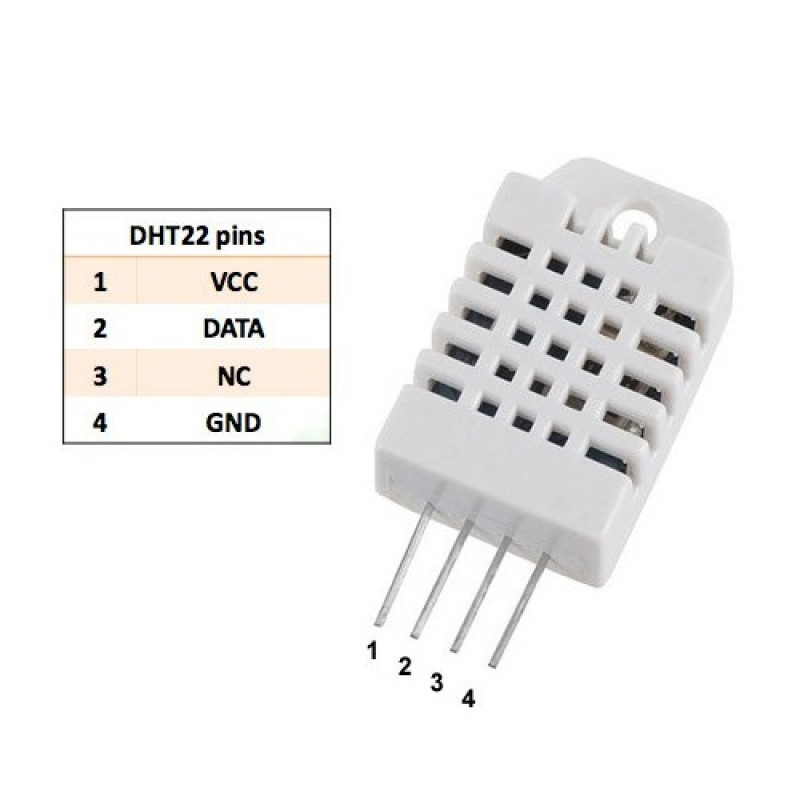

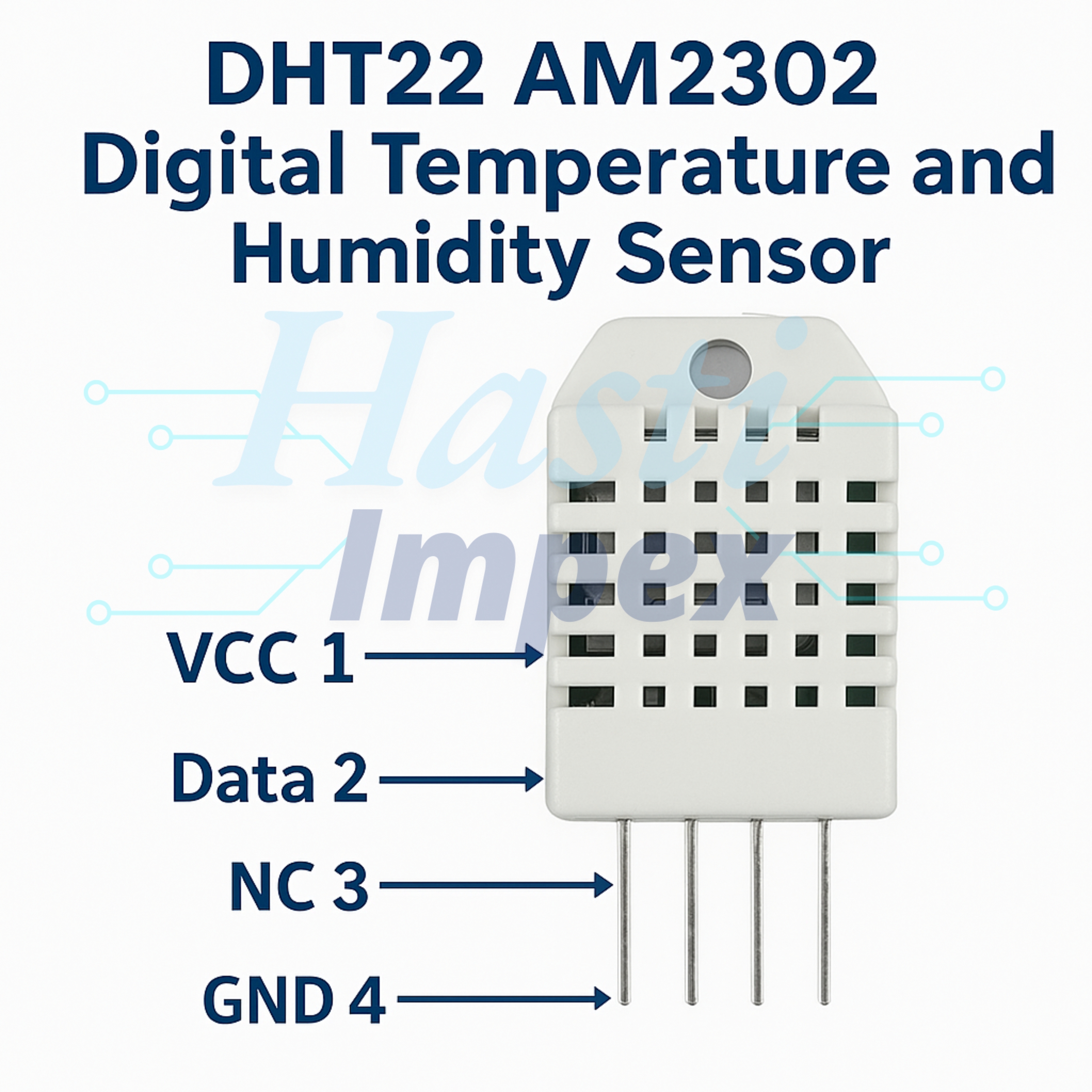

Wiring: The DHT22 sensor typically has four pins: VCC (power supply), GND (ground), DATA (data output), and NC (not connected). You need to connect VCC to a 3.3V or 5V power source, GND to ground, and DATA to a digital input pin on your microcontroller or single-board computer.
-
Code: You'll need software to communicate with the sensor and read its data. Libraries are available for popular microcontroller platforms like Arduino, Raspberry Pi, and ESP8266/ESP32. These libraries handle the communication protocol and data decoding, making it easy to integrate the sensor into your project.
-
Initialization: Before reading data from the sensor, you typically need to initialize it by sending a specific signal. This signal wakes up the sensor and prepares it for data transmission.
-
Reading Data: Once initialized, you can start reading data from the sensor. The sensor provides temperature and humidity readings in digital format. The temperature is usually in Celsius, while humidity is in percentage.
-
Interpretation: Once you've obtained the raw data from the sensor, you can convert it into meaningful temperature and humidity values using the appropriate formulas provided in the sensor datasheet or library documentation.
-
Data Handling: Depending on your application, you may want to store the data, display it on a screen, or take actions based on specific thresholds (e.g., sending alerts if temperature exceeds a certain value).
