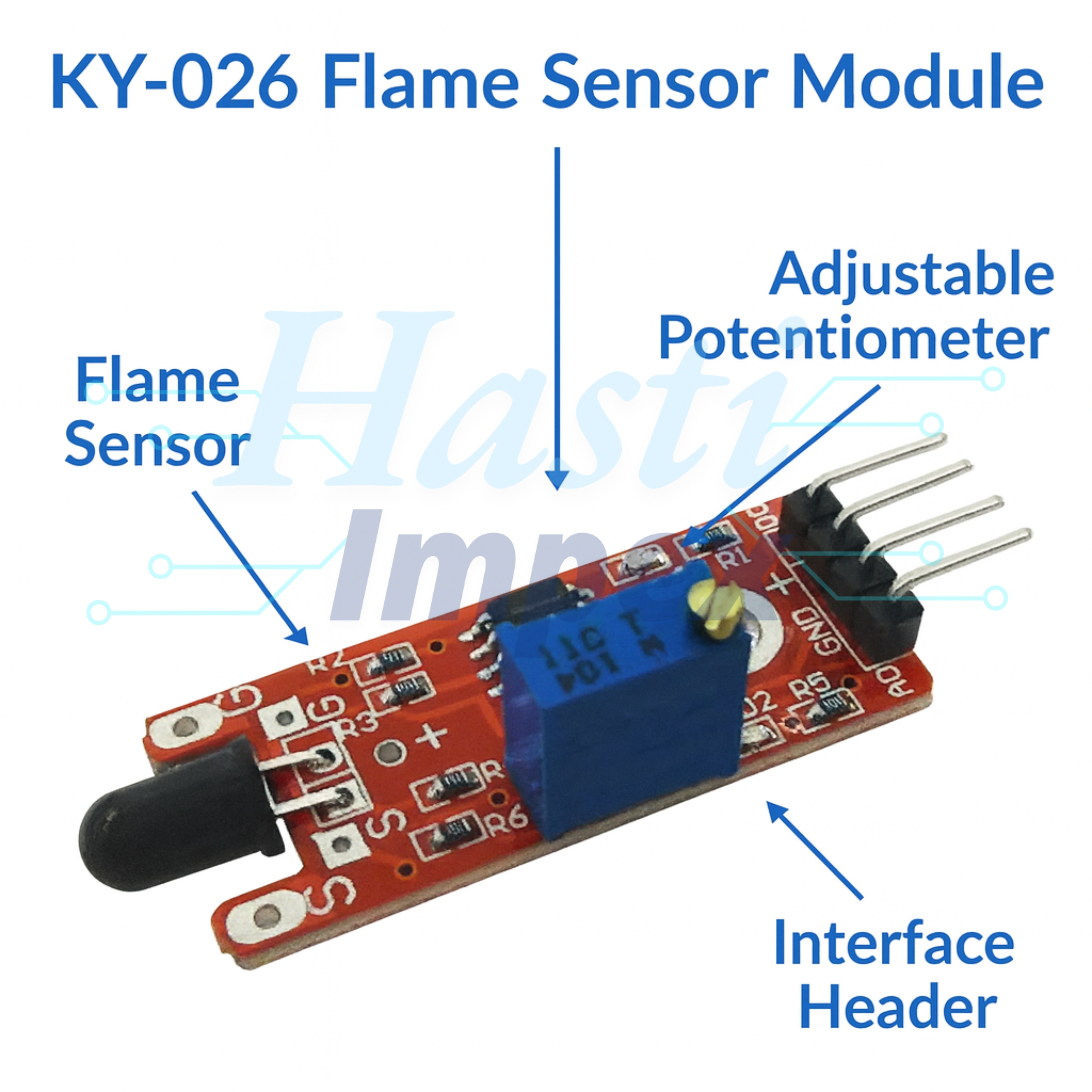

KY-026 Flame Sensor Module
Description:
The KY-026 Flame Sensor Module is a simple device used to detect the presence of fire or flames. It's commonly employed in projects where fire detection is necessary, such as fire alarm systems, fire-fighting robots, or fire monitoring systems.
Here's a basic description of how to use the KY-026 Flame Sensor Module:
-
Hardware Setup:

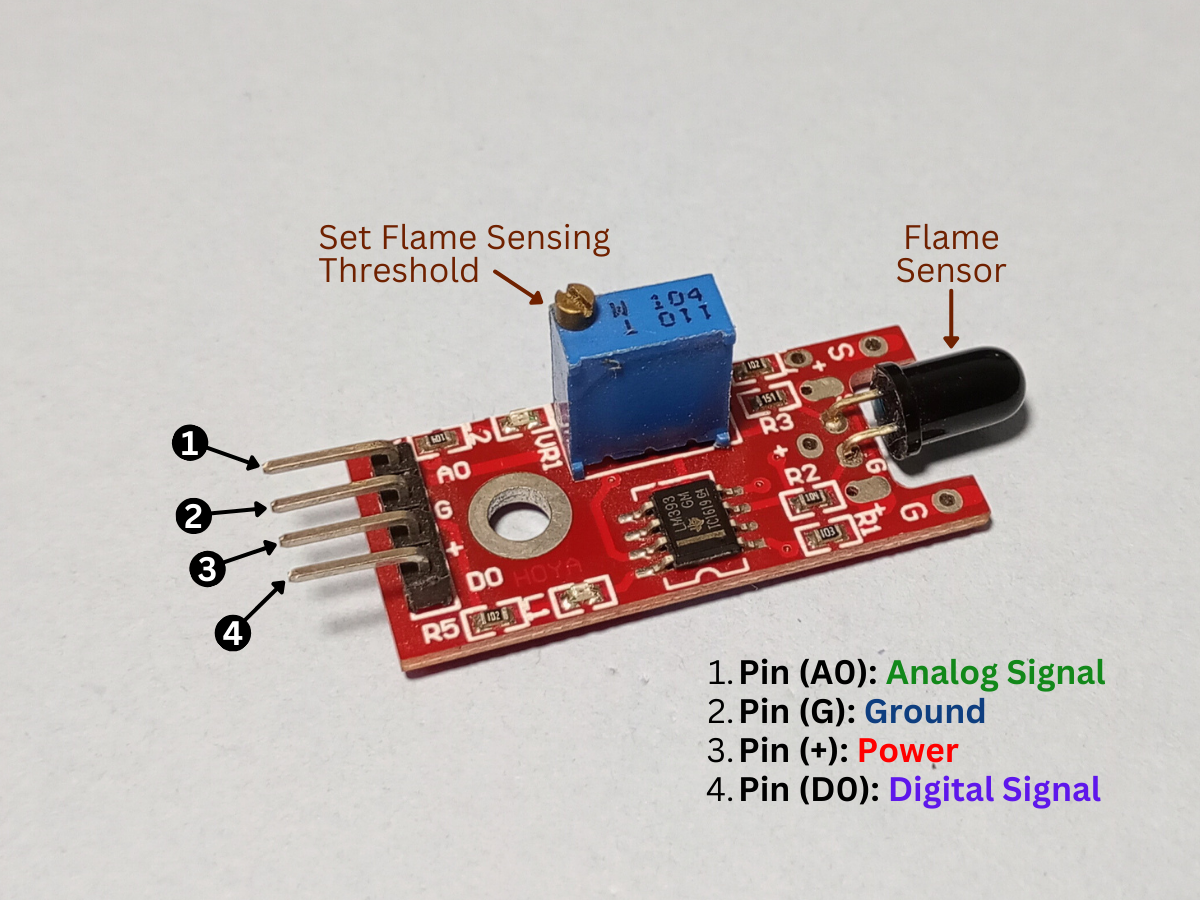

- The module typically consists of a small PCB (Printed Circuit Board) with a flame sensor (usually an IR sensor) mounted on it.
- It often has three pins: VCC (power supply), GND (ground), and OUT (signal output).
- Connect VCC to a suitable power supply (usually 5V), GND to ground, and OUT to a digital or analog input pin on your microcontroller or development board.
-
Code Integration:
- Write code for your microcontroller (Arduino, Raspberry Pi, etc.) to read the output from the sensor pin.
- For example, in Arduino, you would use the
digitalRead()function to read the digital output from the sensor.
-
Interpreting Sensor Output:
- The sensor will output a digital signal: HIGH if it detects a flame, and LOW if it doesn't.
- You can use this output to trigger actions in your project, such as activating an alarm, sending a notification, or controlling a relay to turn off devices in case of fire.
-
Calibration (Optional):
- Some modules may require calibration to adjust the sensitivity according to your needs.
- This can involve adjusting potentiometers or writing code to fine-tune the sensitivity threshold.
-
Testing and Integration:
- Test your setup in various conditions to ensure its reliability.
- Integrate the sensor into your larger project, ensuring it's appropriately placed for effective fire detection.
-
Safety Considerations:
- Remember that while the sensor can detect flames, it's essential to have other safety measures in place, such as fire extinguishers and smoke detectors.
- Ensure that your project complies with safety standards and regulations.
-
Documentation and Maintenance:
- Document your setup, including wiring diagrams, code, and any calibration procedures.
- Regularly inspect and maintain your fire detection system to ensure its continued effectiveness.
Always follow the manufacturer's instructions and guidelines when using the KY-026 Flame Sensor Module, and prioritize safety in all applications.
