TCRT5000 Dual Channel Line Tracking Sensor Module
Description:
The TCRT5000 is a popular dual-channel line tracking sensor module commonly used in robotics and automation projects. Here's how you can use it:
-
Understanding the Sensor: The TCRT5000 consists of an infrared LED and a phototransistor. The infrared LED emits infrared light, and the phototransistor detects the reflection of this light. When the sensor is placed over a surface, the phototransistor measures the amount of infrared light reflected back, which varies depending on the surface's color and reflectivity.
-

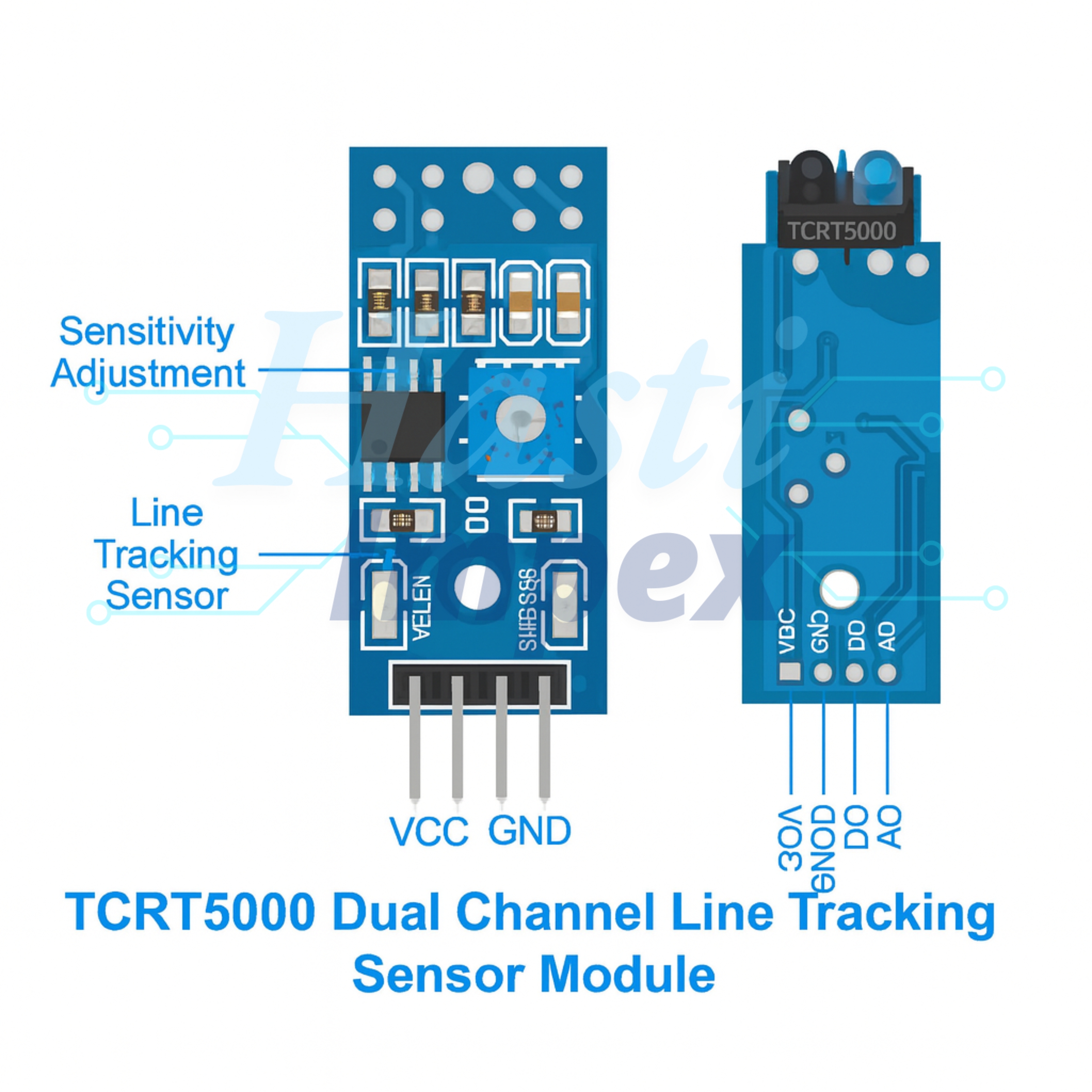

Connection: The module typically has four pins: VCC (power supply), GND (ground), OUT1 (output for channel 1), and OUT2 (output for channel 2). Connect VCC and GND to the appropriate power supply (usually 5V) and ground connections on your microcontroller or power source.
-
Calibration: Before using the sensor, you may need to calibrate it based on the surface you'll be detecting. This involves adjusting the sensitivity of the sensor to detect the contrast between the line and the background. This is usually done by adjusting the potentiometer(s) present on the module.
-
Line Tracking: Place the sensor module over the surface you want to track (like a black line on a white background). The sensor will output digital signals (logic HIGH or LOW) based on whether it detects the line or not. Typically, a logic HIGH indicates detection of the line, while a logic LOW indicates no detection.
-
Interfacing with Microcontroller: Connect the OUT1 and OUT2 pins to digital input pins of your microcontroller (e.g., Arduino). Read the digital signals from these pins to determine the position of the line relative to the sensor. You can then program your microcontroller to perform specific actions based on these readings, such as controlling the movement of a robot to follow the line.
-
Testing and Fine-Tuning: Test your setup on different surfaces and lighting conditions to ensure reliable performance. You may need to fine-tune the calibration and adjust your code to optimize the sensor's performance in various environments.
-
Integration: Integrate the sensor module into your robot or automation project as needed, considering factors such as mounting, wiring, and overall system design.
By following these steps, you should be able to effectively use the TCRT5000 dual-channel line tracking sensor module in your projects.
