1203B PWM 6V 12V 24V 28V 3A DC Motor Speed Regulator
Description:
1203B PWM Motor Speed Regulator is a high-quality and versatile device designed to control the speed of DC motors with a range of input voltages from 6V to 28V. This regulator utilizes Pulse Width Modulation (PWM) technology, which allows for precise control of the motor's speed by adjusting the duty cycle of the signal. With its ability to handle up to 3A of current, it is ideal for applications where smooth and efficient motor speed regulation is required.
The 1203B PWM Speed Controller is typically used in various projects, including robotics, DIY projects, automation systems, and other motor-driven applications. Whether you're working with small or medium-sized motors, this regulator offers reliable performance and easy-to-use features for controlling motor speed in both forward and reverse directions
Features:
1. Wide Voltage Input Range (6V to 28V)
2. PWM Speed Control
3. Current Capacity (Up to 3A)
4. Direction Control:
5. Adjustable Speed
6. Compact and Lightweight Design
7. Overcurrent and Overvoltage Protection
8. Easy to Use
9. Heat Dissipation
10. Applications

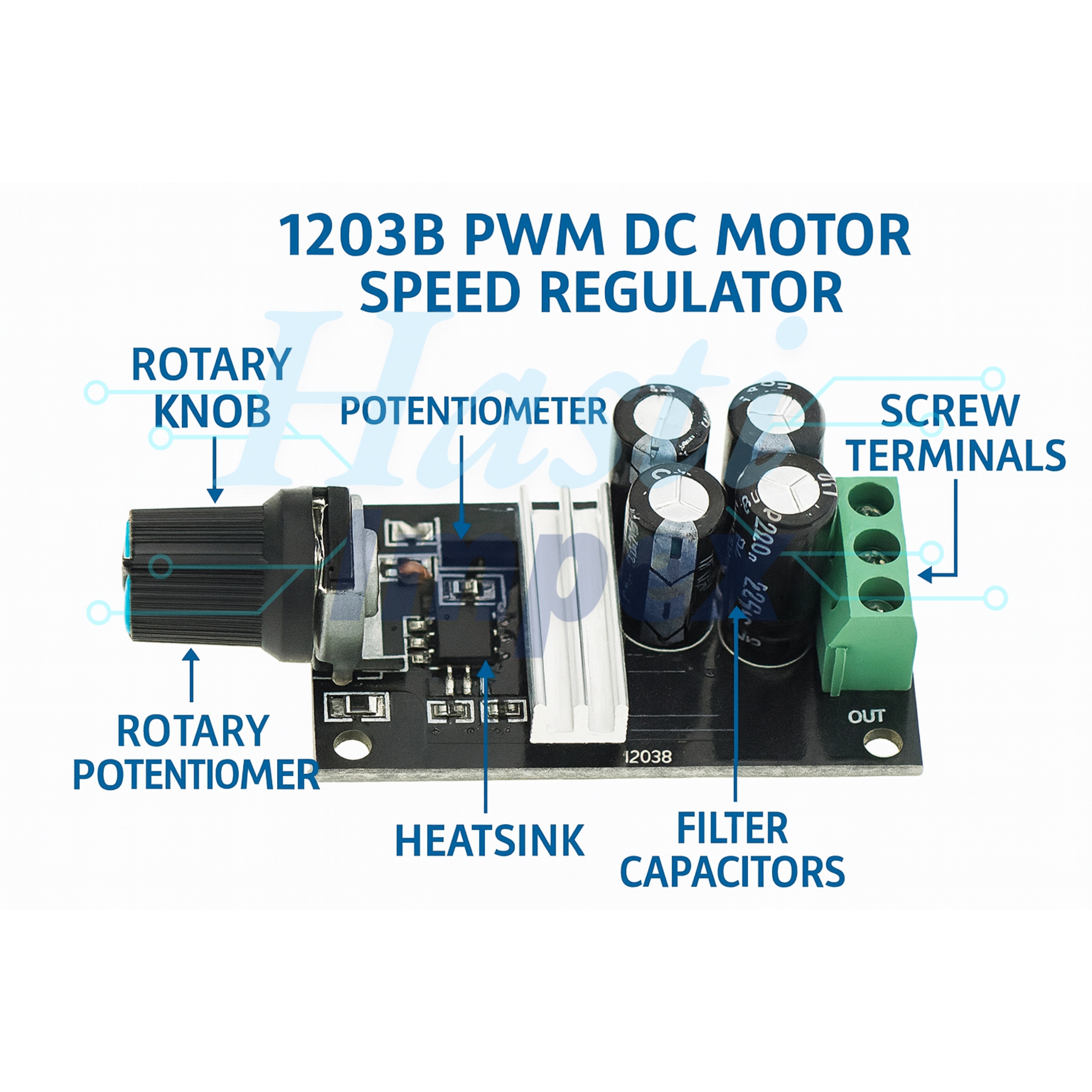

Diagram:
Specifications:
| Input Voltage | 6V to 28V DC |
| Output Voltage | DC motor voltage |
| Maximum Output Current | 3A |
| Speed Control | PWM (Pulse Width Modulation) |
| Motor Direction | Forward and Reverse |
| Temperature Range | -20°C to 50°C |
| Size | 60mm x 45mm x 30mm |
| Weight | 30-40g |
