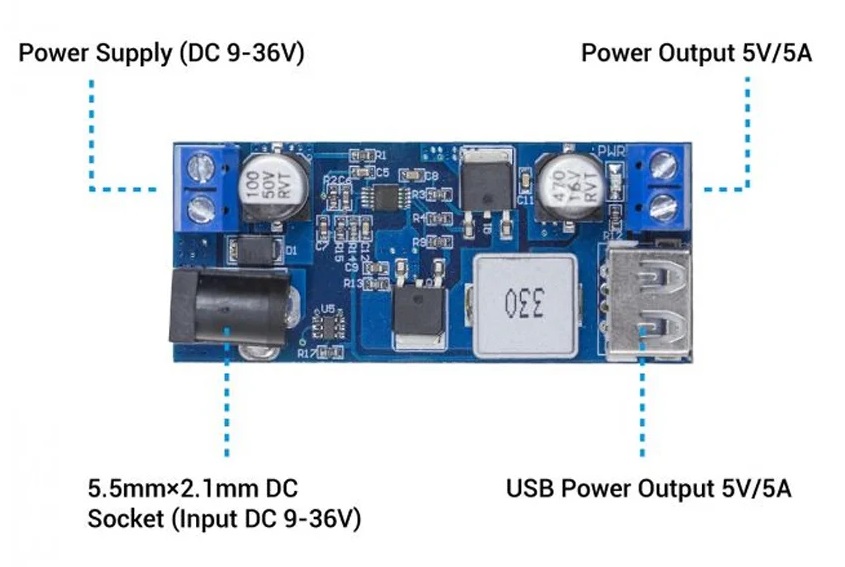

24V/12V to 5V 5A Power Module DC-DC XY-3606 Power Converter
Description:
The 24V/12V to 5V 5A Power Module DC-DC XY-3606 Power Converter is a step-down voltage regulator module commonly used to convert higher voltage levels (24V or 12V) to a lower stable output voltage of 5V. Here's how you can use it:
-
Input Power Connection: Connect the input power source to the module. This can be either a 24V or 12V DC power source, depending on your application. Ensure correct polarity and voltage levels to prevent damage to the module.
-
Output Voltage Setting: Some modules may have a potentiometer or trimmer resistor for adjusting the output voltage. Set the output voltage to 5V using this adjustment mechanism. Be cautious not to exceed the maximum rated output voltage of 5V.
-
Output Load Connection: Connect your load (device or circuit requiring 5V power) to the output terminals of the module. Ensure correct polarity and wiring to avoid damaging your load.
-
Current Limit: The module may have a maximum output current rating of 5A. Make sure your load does not draw more current than the rated output current of the module to prevent overheating or damage.
-
Heat Dissipation: If your load draws significant current or if the ambient temperature is high, consider providing adequate heat sinking or cooling for the module to ensure stable operation.
-
Input and Output Capacitors: Some modules may require input and output capacitors for stability and filtering. Refer to the module's datasheet or manufacturer's instructions for recommended capacitor values and configurations.
-
Protection Features: Check if the module includes protection features such as over-current protection, over-voltage protection, or thermal shutdown. Understanding these features can help prevent damage to your module and connected devices.
-
Testing: Once everything is connected, power up the module and test the output voltage using a multimeter to ensure it is stable at 5V. Verify that your load operates correctly with the regulated 5V supply.
-
Mounting: Securely mount the module in your application, ensuring proper airflow and protection from environmental factors if necessary.
-
Monitoring: Periodically monitor the module's temperature, output voltage, and current draw to ensure proper operation and reliability over time.
The XY-3606 Power Converter is commonly used in various electronic projects, including powering microcontrollers, sensors, motors, and other low-voltage electronic components. Always refer to the module's datasheet and manufacturer's instructions for specific guidance on using the module effectively and safely in your application.
