RCWL-0516 Microwave Radar Sensor
Description:
RCWL-0516 is a highly efficient and compact microwave radar sensor used primarily for motion detection, offering a robust and inexpensive alternative to traditional infrared (PIR) sensors. This sensor is particularly favored for projects where the detection of motion or the presence of objects in an area is required, such as automatic lighting systems, security systems, and various IoT (Internet of Things) applications. The RCWL-0516 operates using Doppler radar technology, making it sensitive to movement in its environment.
Features:
1. Microwave Radar Technology
2. Wide Detection Range
3. Non-Infrared Detection
4. Low Power Consumption
5. Simple Interface
6. Adjustable Sensitivity
7. Stable Operation
8. Small Form Factor
9. Versatile Applications
10. Built-in Signal Processing

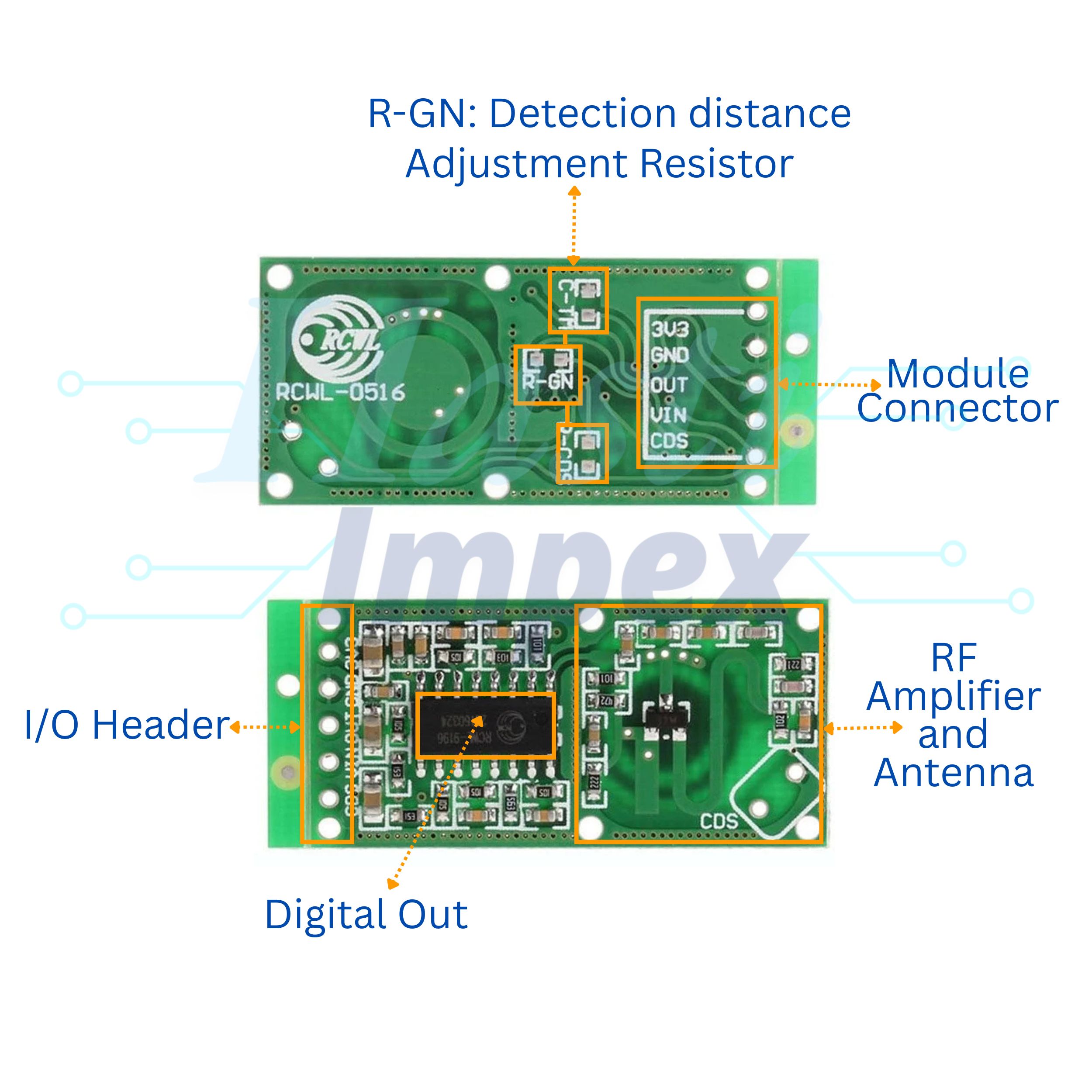

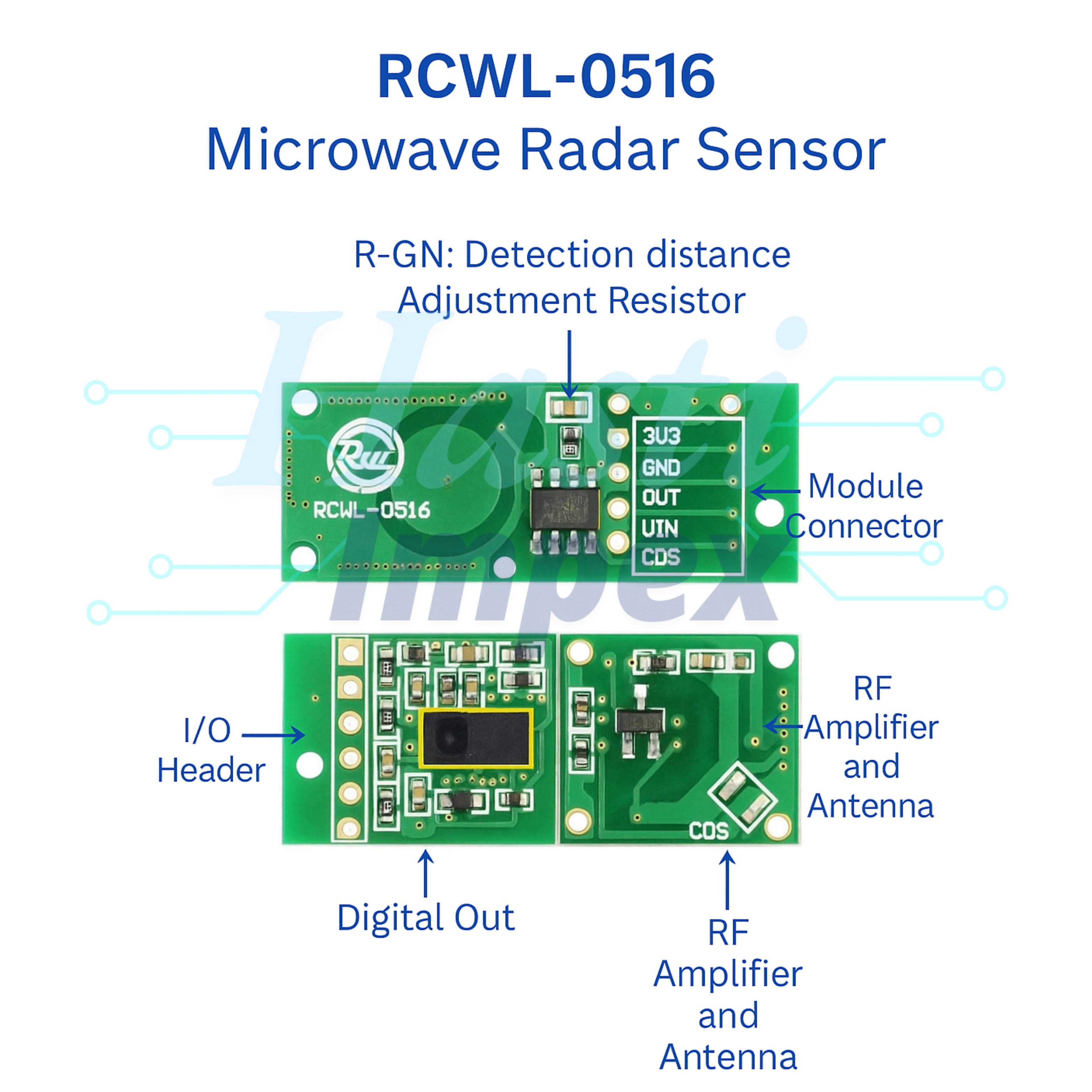

Diagram:
Specifications:
| Operating Voltage | 4 ~ 28VDC |
| Max. Operating Current | 3mA |
| Transmitting Power | 20mW (typical); 30mW (max) |
| Output Voltage | 3.2 ~ 3.4 |
| Output Voltage Driving Capacity | Capacity 100mA |
| Trigger Way | Repeat Trigger |
| Output Control Low Level | 0V |
| Output Control High Level | 3.3V |
| Operating Temperature | -20 to 80°C |
| Dimensions | 3 x 2 x 1cms |
| Weight | 5 grams |
