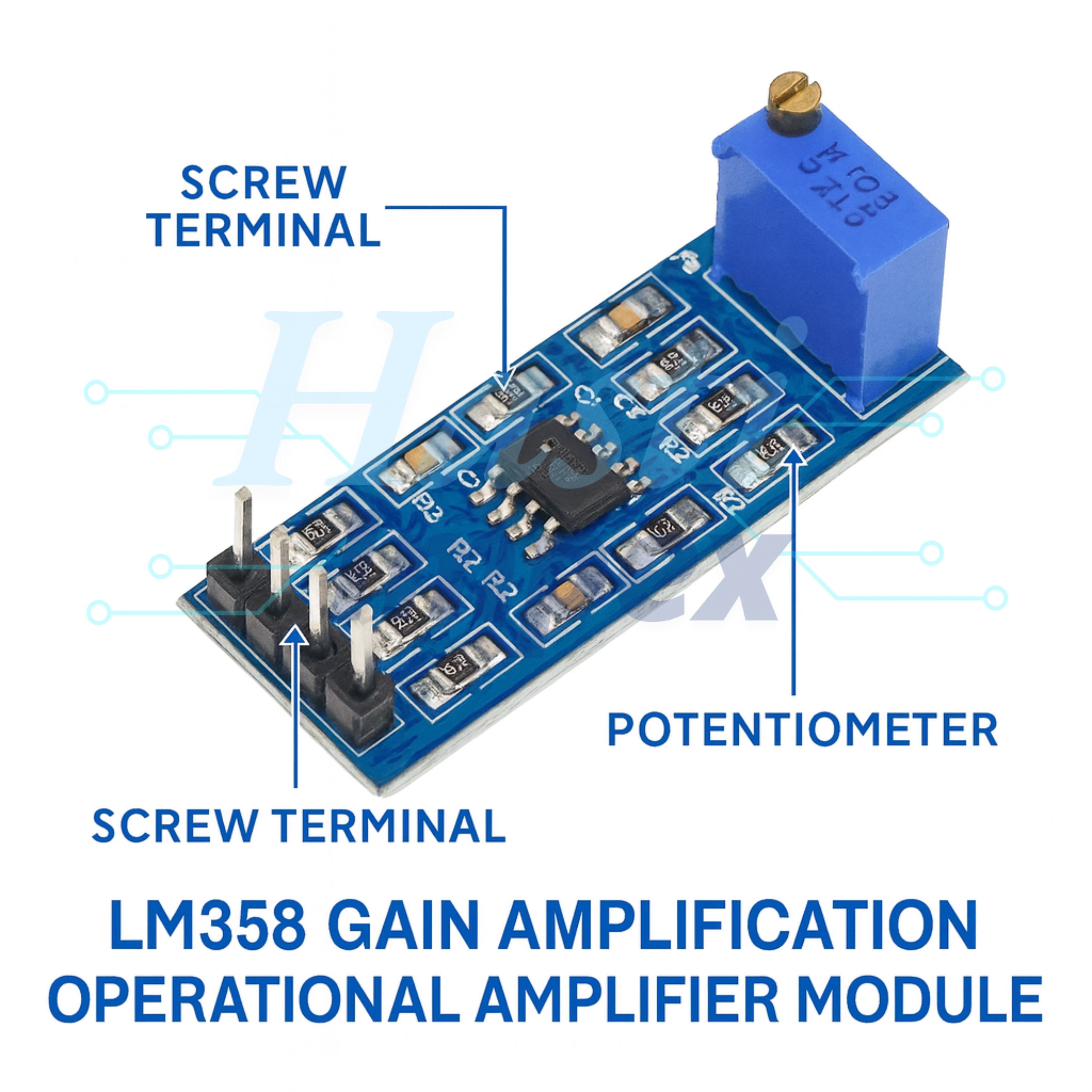

LM358 Gain Amplification Operational Amplifier Module
Description:
LM358 Gain Amplification Operational Amplifier Module is a versatile, low-power operational amplifier (Op-Amp) module based on the LM358 dual operational amplifier IC. This module is designed for use in a wide range of signal amplification and processing applications, including audio amplification, filtering circuits, sensor signal conditioning, and more.
The LM358 is a dual op-amp designed to amplify analog signals and is particularly well-suited for low-power and low-voltage operations, making it ideal for battery-powered applications or devices that require minimal energy consumption. The gain amplification feature allows the module to scale weak analog signals, enhancing them for further processing or triggering.
With its dual-channel design, the LM358 can handle two distinct signal paths simultaneously, making it highly efficient in scenarios where multiple signals need to be processed at once. The module is easy to use, with simple connections for input and output, making it a popular choice for audio systems, sensors, control systems, and signal processing in electronics projects.
Features:
1. Dual Operational Amplifiers
2. Low Power Consumption
3. Variable Gain Control
4. Wide Voltage Range
5. Low Offset Voltage
6. Wide Frequency Response
7. High Input Impedance
8. Easy Integration with Microcontrollers
9. Compact Design

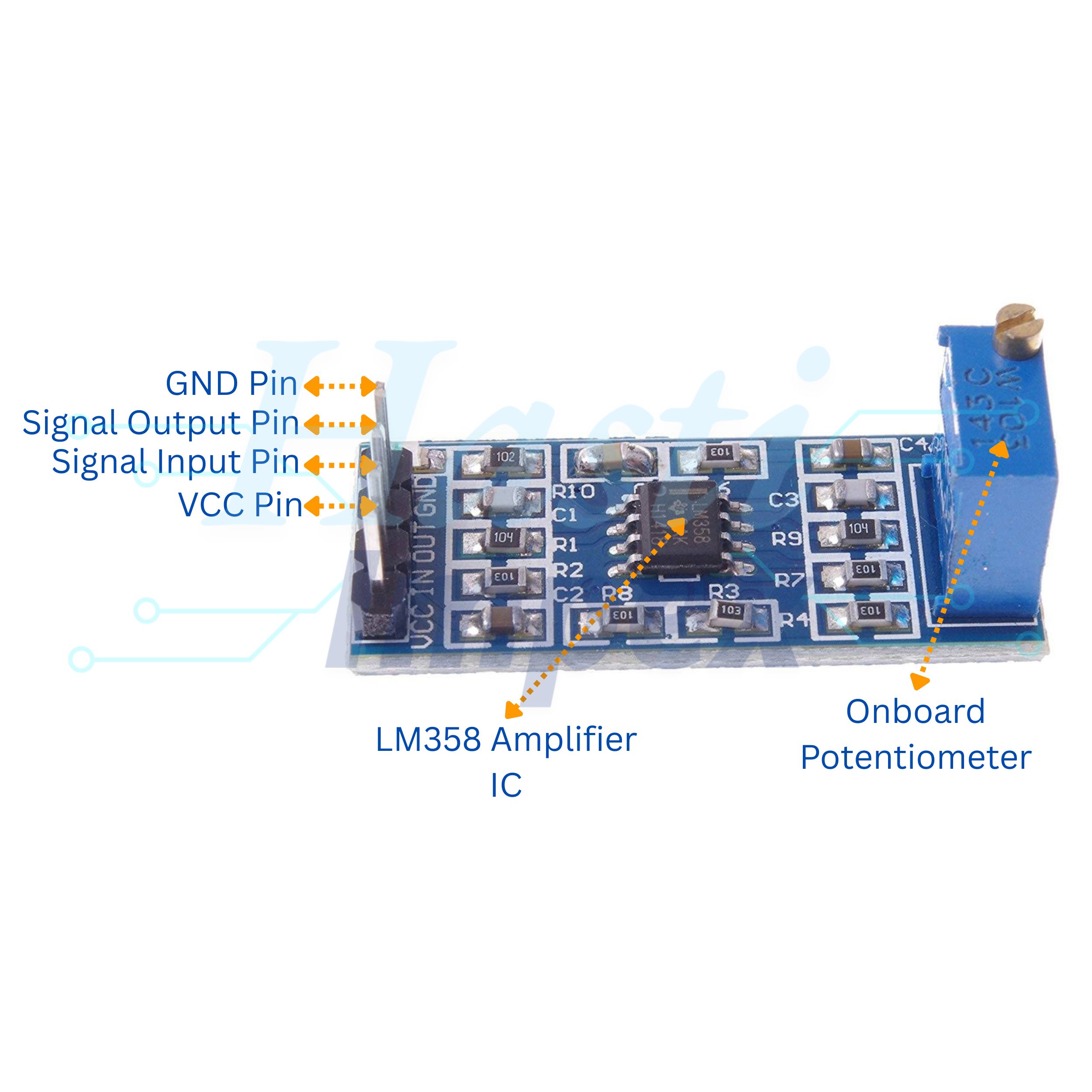

Diagram:
Specifications:
| Op-Amp Model | LM358 |
| Operating Voltage | 3V to 32V DC |
| Power Consumption | Low Power Consumption |
| Frequency Response | 1 MHz typical |
| Input Impedance | 1 MΩ |
| Input Offset Voltage | Max 3mV |
| Output Drive | standard logic levels |
| PCB Size ( L x W ) mm | 34 x 14 |
