KY-002 Vibration Switch Module
Description:
The KY-002 Vibration Switch Module, also known as a shake switch module, is a sensor module used to detect vibration or movement. Here's how you can use it:
-

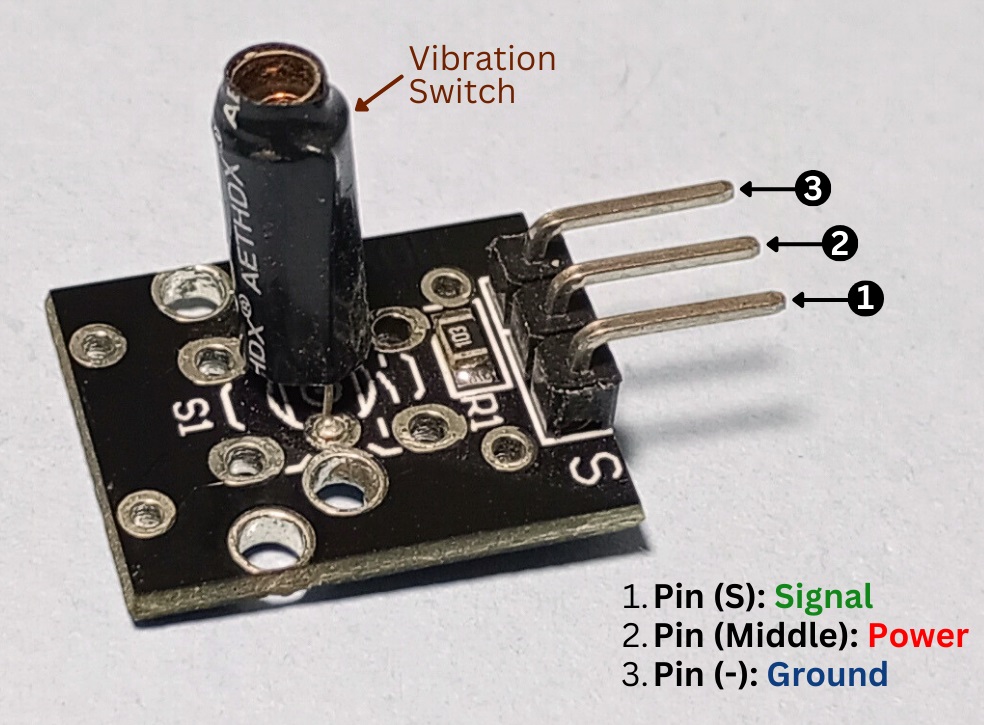

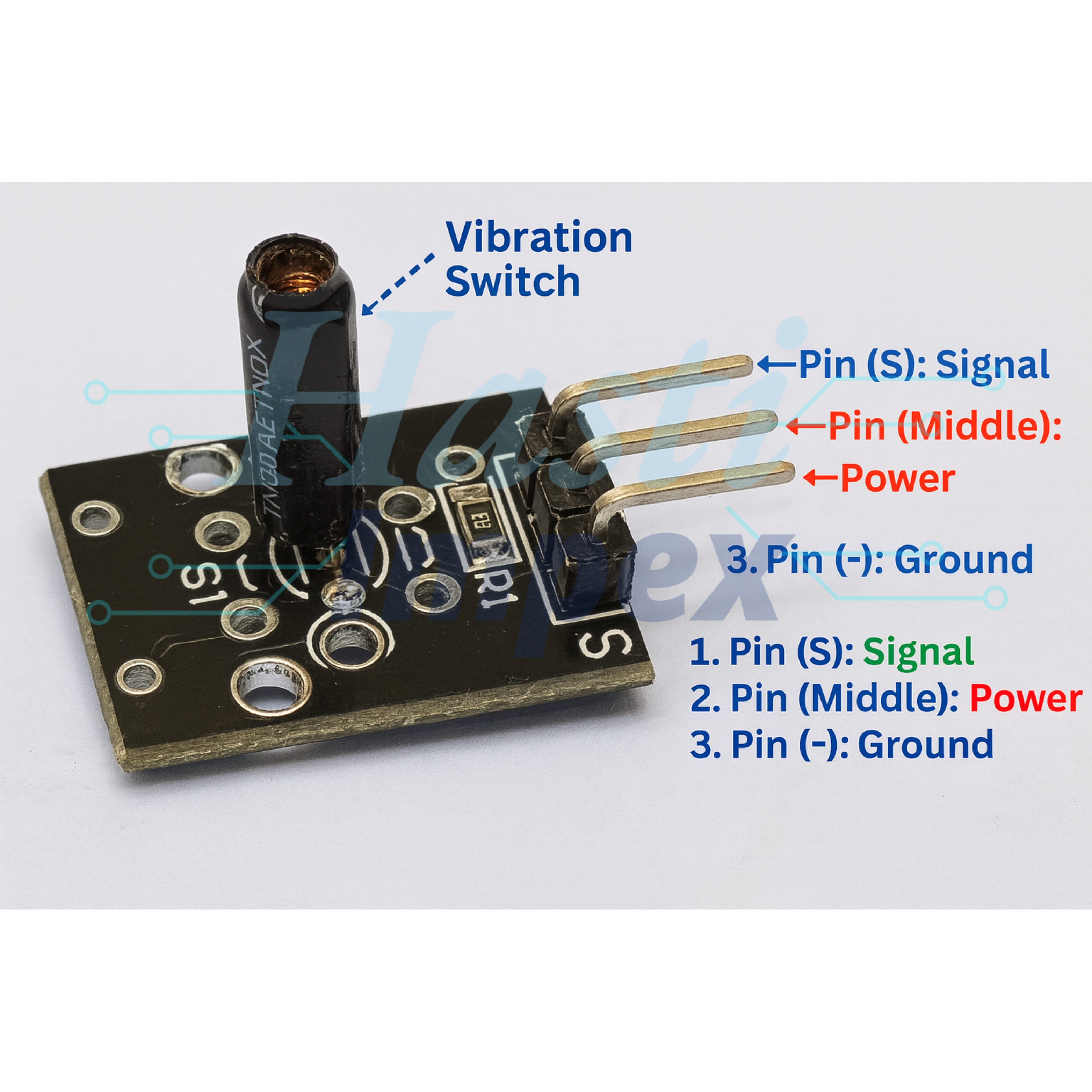

Connections: Connect the KY-002 module to your microcontroller or development board. It typically has three pins: VCC (power supply), GND (ground), and OUT (output signal). Connect VCC to a 5V power source, GND to ground, and OUT to a digital input pin on your microcontroller.
-
Power Supply: Provide a stable 5V power supply to the VCC pin of the module. Most microcontrollers operate at 5V logic levels, so ensure compatibility with your system.
-
Ground Connection: Connect the GND pin of the module to the ground (GND) of your microcontroller or power supply.
-
Output Connection: Connect the OUT pin of the module to a digital input pin on your microcontroller. This pin will read the output signal from the vibration switch module.
-
Detection Threshold: The module has a sensitivity threshold for detecting vibration. When the vibration exceeds this threshold, the module outputs a digital HIGH signal (typically 5V) on the OUT pin. Adjust the sensitivity threshold if necessary, based on your application requirements.
-
Monitoring: Continuously monitor the digital input pin connected to the OUT pin of the module on your microcontroller. When the vibration switch detects vibration or movement above the set threshold, the digital input pin will read HIGH.
-
Interrupts: You can configure your microcontroller to trigger an interrupt when the vibration switch module detects vibration. This allows your microcontroller to respond to vibration events immediately, without continuously polling the digital input pin.
-
Debouncing: If necessary, implement debouncing algorithms in your microcontroller code to filter out false triggers caused by mechanical vibrations or noise.
-
Applications: The KY-002 Vibration Switch Module is commonly used in applications such as burglar alarms, vibration-triggered switches, earthquake detectors, and impact sensors.
-
Testing: Test the module by subjecting it to different levels of vibration or movement to ensure that it triggers reliably at the desired threshold.
The KY-002 Vibration Switch Module is a simple and cost-effective sensor module for detecting vibration or movement in various electronic projects. Experiment with different threshold settings and integration methods to suit your specific application requirements.
