Description:

The SX1308 DC-DC Step Up Adjustable Power Supply is a versatile and efficient power booster module that can step up an input voltage to a higher output voltage. It is capable of providing up to 28V output at a maximum current of 2A. This module is useful in a variety of applications where a higher voltage is needed from a lower voltage source, such as battery-powered projects, DIY electronics, and more.

Description

Key Features:

1. Input Voltage Range: 2V to 24V DC.
2. Output Voltage Range: Adjustable from the input voltage up to 28V DC.
3. Output Current: Up to 2A (maximum).
4. Switching Frequency: 1.2MHz, which allows for a compact design and high efficiency.
5. Efficiency: Typically over 93%, depending on the input/output voltage and load conditions.
6. Compact Size: Small form factor makes it easy to integrate into various projects.
7. Protection: Includes over-temperature and over-current protection for reliable operation.

Specifications:

• Input Voltage: 2V to 24V DC
• Output Voltage: Adjustable from 2V to 28V DC
• Output Current: Maximum 2A
• Switching Frequency: 1.2MHz
• Efficiency: Up to 93%
• Size: Approximately 22mm x 17mm x 4mm

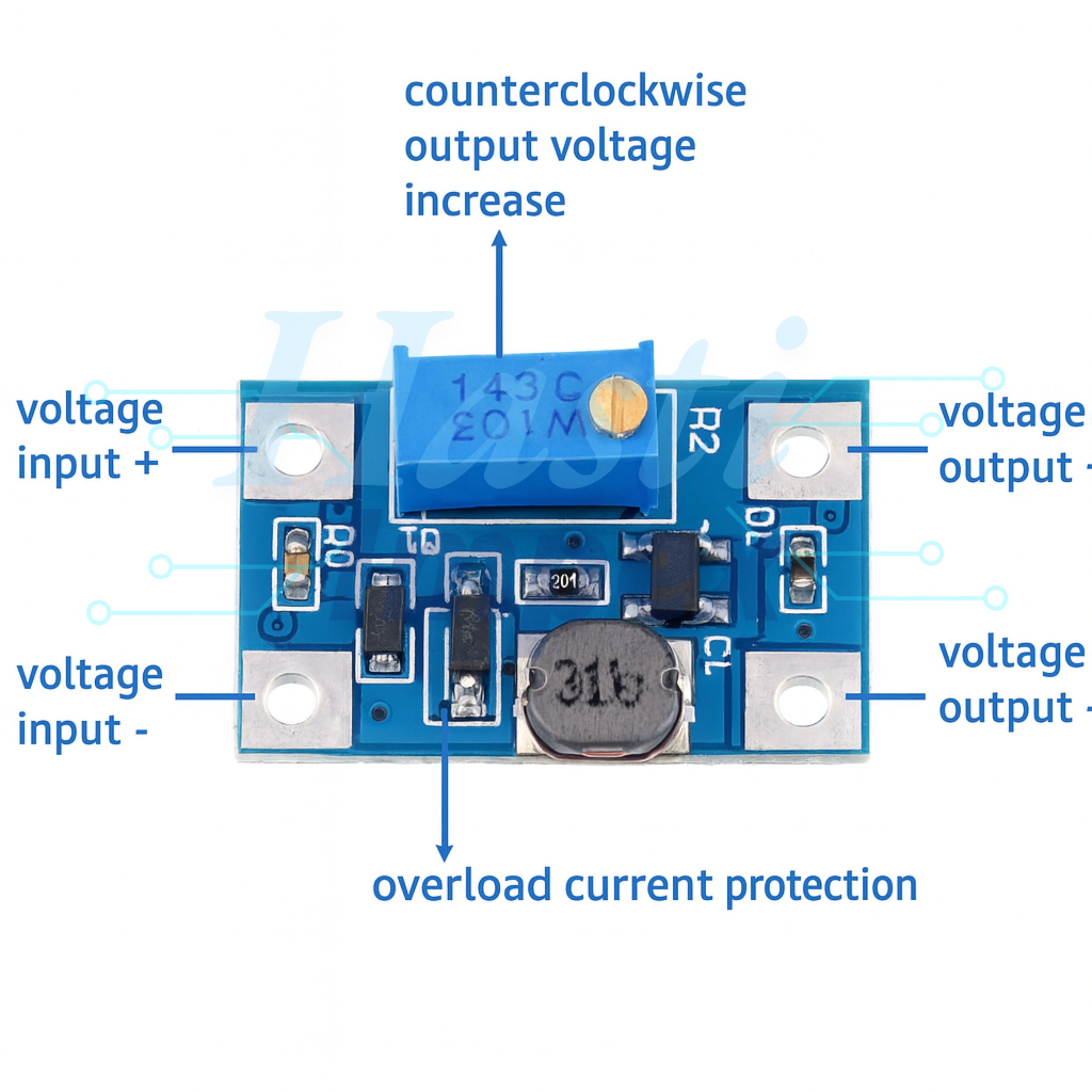

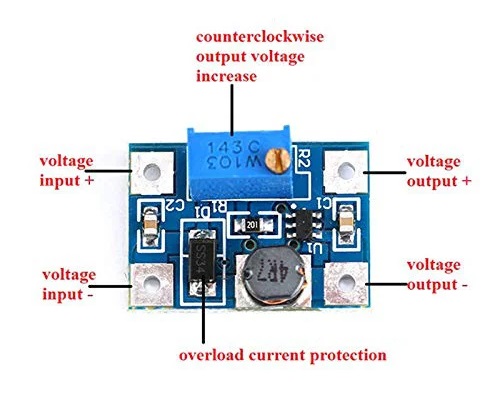

Usage Instructions

1. Input Connection:

• Connect the DC power source to the input terminals (IN+ and IN-). Ensure correct polarity: the positive terminal goes to IN+ and the negative terminal to IN-.

2. Output Connection:

• Connect the load to the output terminals (OUT+ and OUT-). Ensure correct polarity: the positive terminal goes to OUT+ and the negative terminal to OUT-.

3. Adjusting Output Voltage:

• Use a multimeter to measure the output voltage.
• Adjust the output voltage by turning the small potentiometer on the module. Turn clockwise to increase the voltage and counterclockwise to decrease it.
• Ensure that the output voltage does not exceed the voltage rating of your load to prevent damage.

4. Powering On:

• Once all connections are secure and adjustments are made, power on the input power supply.
• Check the output voltage and current to ensure they are within the desired range.

5. Load Connection:

• Connect your load to the output terminals. The module should provide a stable, regulated voltage as per your adjustments.

6. Thermal Management:

• Ensure adequate ventilation around the module, especially when operating near the maximum power output.
• If the module gets too hot, consider adding a heat sink or improving airflow around the module.

Applications

• Battery-Powered Projects: Step up voltage from batteries to power higher voltage devices.
• DIY Electronics: Ideal for hobbyists and DIY electronics projects requiring adjustable voltage levels.
• Portable Devices: Power portable devices requiring different voltage levels.
• Solar Power Systems: Boost voltage from solar panels to charge batteries or power devices.
• LED Drivers: Drive high-power LEDs that require higher voltage.
• Embedded Systems: Provide a stable voltage source for various embedded systems.

Example Application: Powering a 12V Device from a 5V USB Power Source

Components Needed:

• SX1308 DC-DC Step Up Adjustable Power Supply Module
• 5V USB power source (such as a USB power bank)
• 12V device (e.g., LED strip)

Steps:

1. Connect the USB power source to the input terminals of the SX1308 module.
2. Connect the 12V device to the output terminals of the SX1308 module.
3. Adjust the potentiometer on the SX1308 module to set the output voltage to 12V.
4. Power on the USB power source. The module will step up the 5V input to a stable 12V output, powering the 12V device.

By following these instructions and utilizing the features of the SX1308 DC-DC Step Up Adjustable Power Supply Module, you can effectively boost and regulate voltage for a wide range of applications, ensuring stable and reliable power delivery.
