GY-271 HMC5883L 3-axis Electronic Compass Module Magnetic Field Sensor
Description:

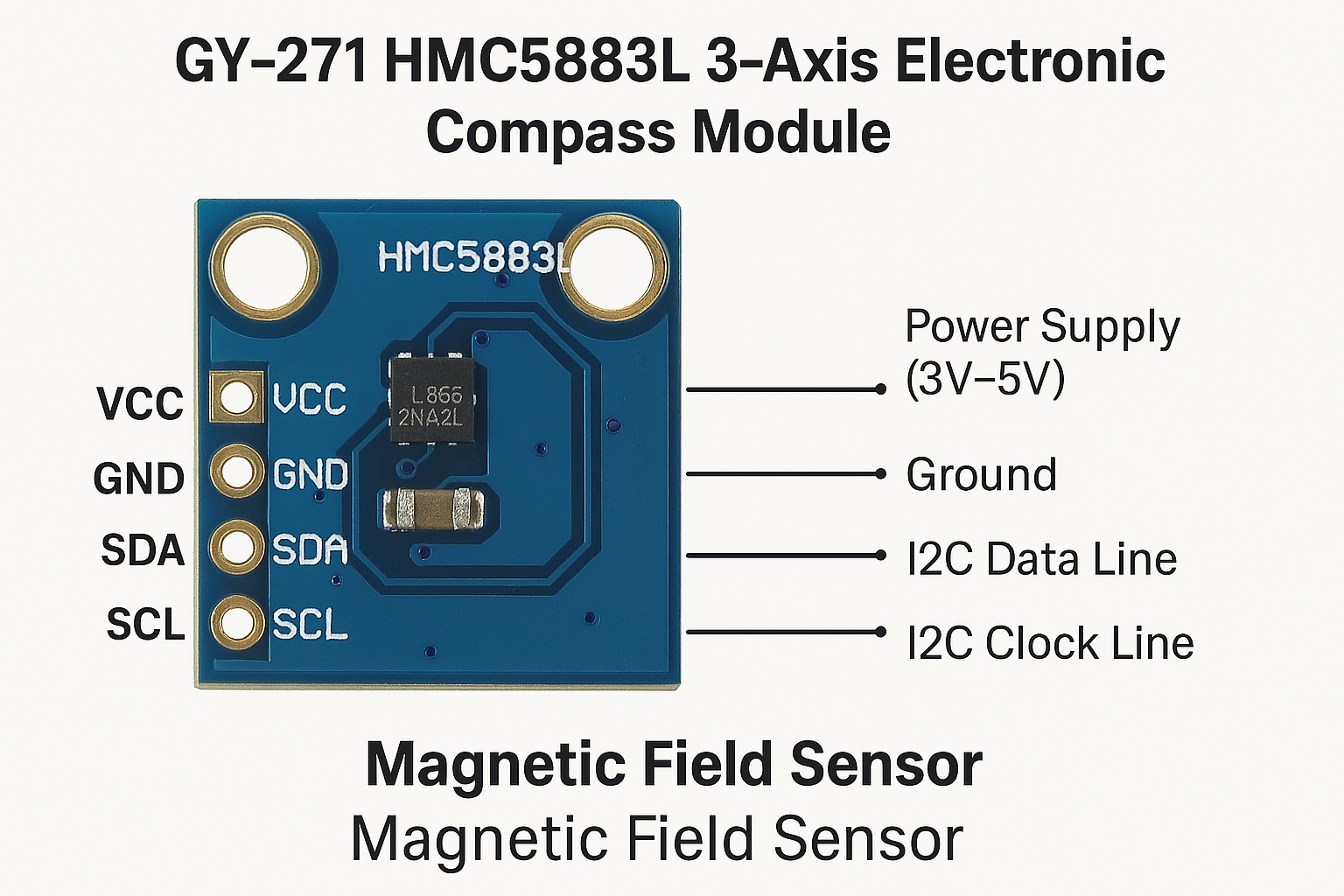

The GY-271 HMC5883L is a 3-axis electronic compass module equipped with a magnetic field sensor, specifically the Honeywell HMC5883L. It's commonly used in various applications where measuring magnetic fields and determining orientation are essential.
Here's a basic rundown of how you can use it:
-
Wiring: Connect the module to your microcontroller or development board. Typically, it communicates via I2C (Inter-Integrated Circuit) protocol, so make sure to connect the SDA (data) and SCL (clock) pins to your microcontroller's corresponding pins.
-
Library: Find or create a suitable library for your microcontroller platform that interfaces with the HMC5883L sensor. Many popular platforms like Arduino have libraries readily available.
-
Initialization: Initialize the sensor by configuring its settings such as measurement range, output rate, etc. This is usually done through writing specific values to its registers via I2C.
-
Reading Data: Once initialized, you can start reading data from the sensor. The HMC5883L provides magnetic field data for each of its three axes (X, Y, Z) in raw form.
-
Calibration: Magnetic sensors often require calibration to compensate for local magnetic interference and to ensure accurate readings. This involves taking readings in various orientations and applying calibration algorithms to correct for offsets and scale factors.
-
Interpretation: Once you have the raw magnetic field data, you can interpret it to determine the orientation or heading. This might involve converting the raw data to units like microteslas or gauss and then applying trigonometric functions to calculate angles.
-
Integration: Integrate the compass data into your project or application. This could involve displaying the orientation on a screen, using it for navigation, or incorporating it into a robotics project for orientation control.
Remember to consult the datasheet of the HMC5883L for detailed information about its registers, configurations, and specifications. Additionally, consider the specific requirements and constraints of your project when configuring and using the sensor.
