HTU21D Temperature and Humidity Sensor Module
Description:
The HTU21D is a digital temperature and humidity sensor module capable of providing accurate readings for both parameters. Here's how you can use it:
-

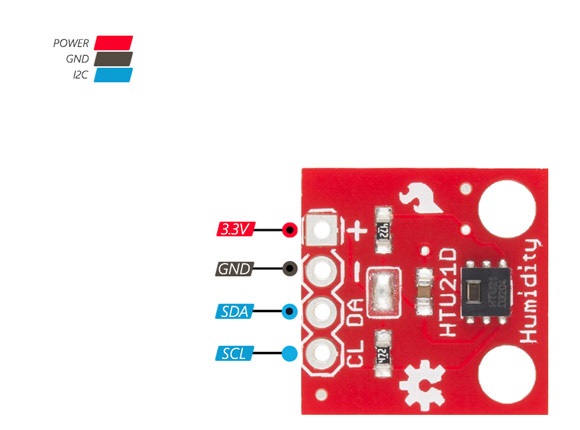

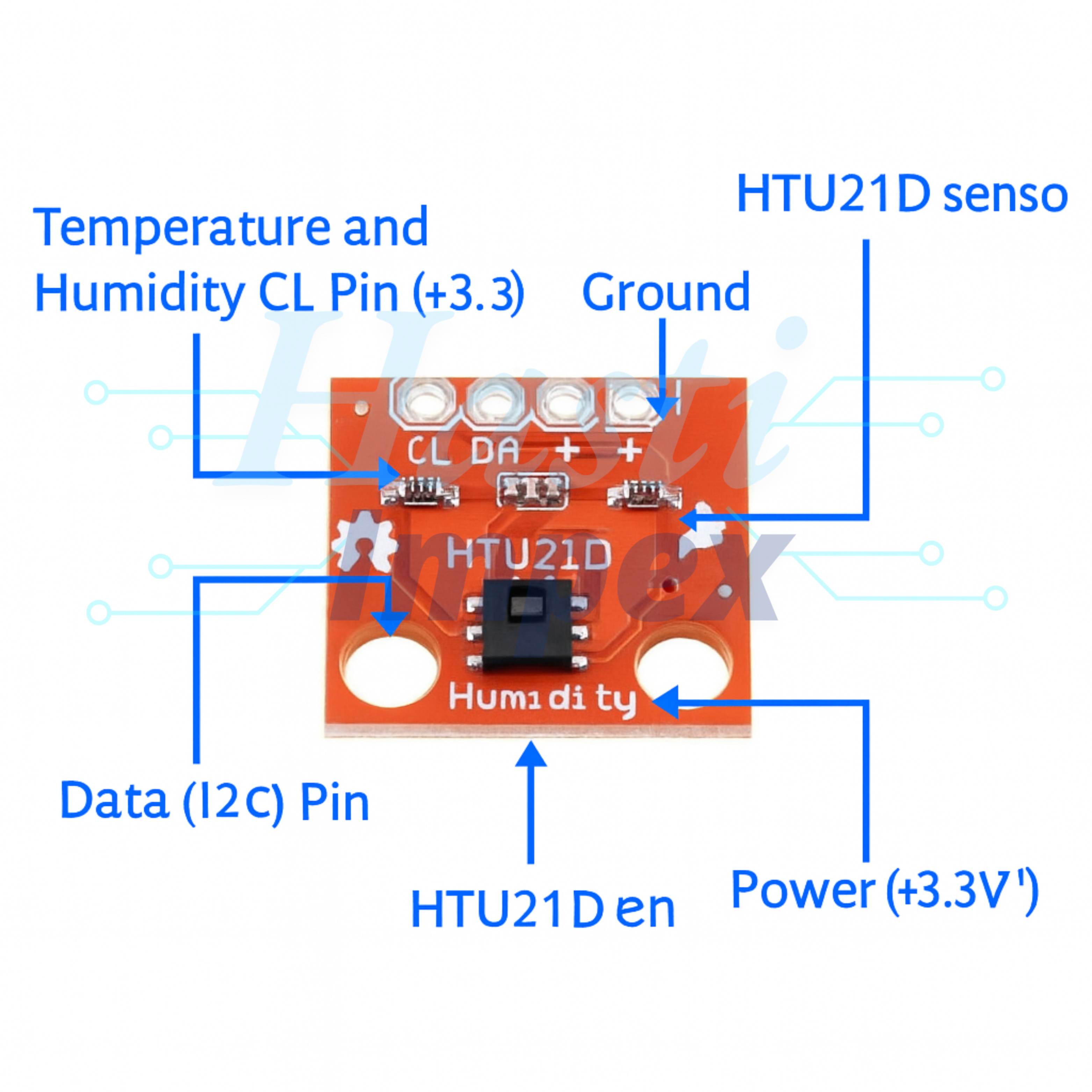

Connection: The module typically has four pins: VCC (power supply), GND (ground), SDA (data line), and SCL (clock line). Connect VCC and GND to the appropriate power supply (usually 3.3V or 5V) and ground connections on your microcontroller or power source. Connect the SDA and SCL pins to the corresponding data (SDA) and clock (SCL) pins on your microcontroller (e.g., Arduino).
-
Library: To interface with the HTU21D sensor module, you'll need a compatible library for your microcontroller platform. For example, if you're using an Arduino, you can use the "Adafruit_HTU21DF" library.
-
Initialization: Initialize the sensor and configure it for temperature and humidity measurements. This typically involves sending commands to the sensor through the I2C communication protocol.
-
Reading Data: Use the library functions to read temperature and humidity data from the sensor. The sensor will provide digital readings that you can then convert to meaningful temperature and humidity values using the appropriate formulas provided in the sensor's datasheet or library documentation.
-
Data Processing: Process the temperature and humidity readings as needed for your application. This may involve displaying the values on an LCD screen, transmitting them wirelessly over a communication protocol like Bluetooth or Wi-Fi, logging them to an SD card, or triggering actions based on predefined thresholds.
-
Calibration: Some sensors may require calibration to ensure accurate readings. Follow the calibration procedures outlined in the sensor's datasheet or library documentation if necessary.
-
Testing: Test your setup under different environmental conditions to ensure that the sensor provides accurate and reliable readings across a range of temperatures and humidity levels.
-
Integration: Integrate the HTU21D sensor module into your project as needed, considering factors such as mounting, wiring, and overall system design.
-
Power Management: Consider power management strategies to minimize power consumption, especially if the sensor will be used in battery-powered applications. This may involve putting the sensor into a low-power sleep mode between measurements.
By following these steps, you should be able to effectively use the HTU21D temperature and humidity sensor module in your projects to monitor environmental conditions and trigger actions based on temperature and humidity readings.
