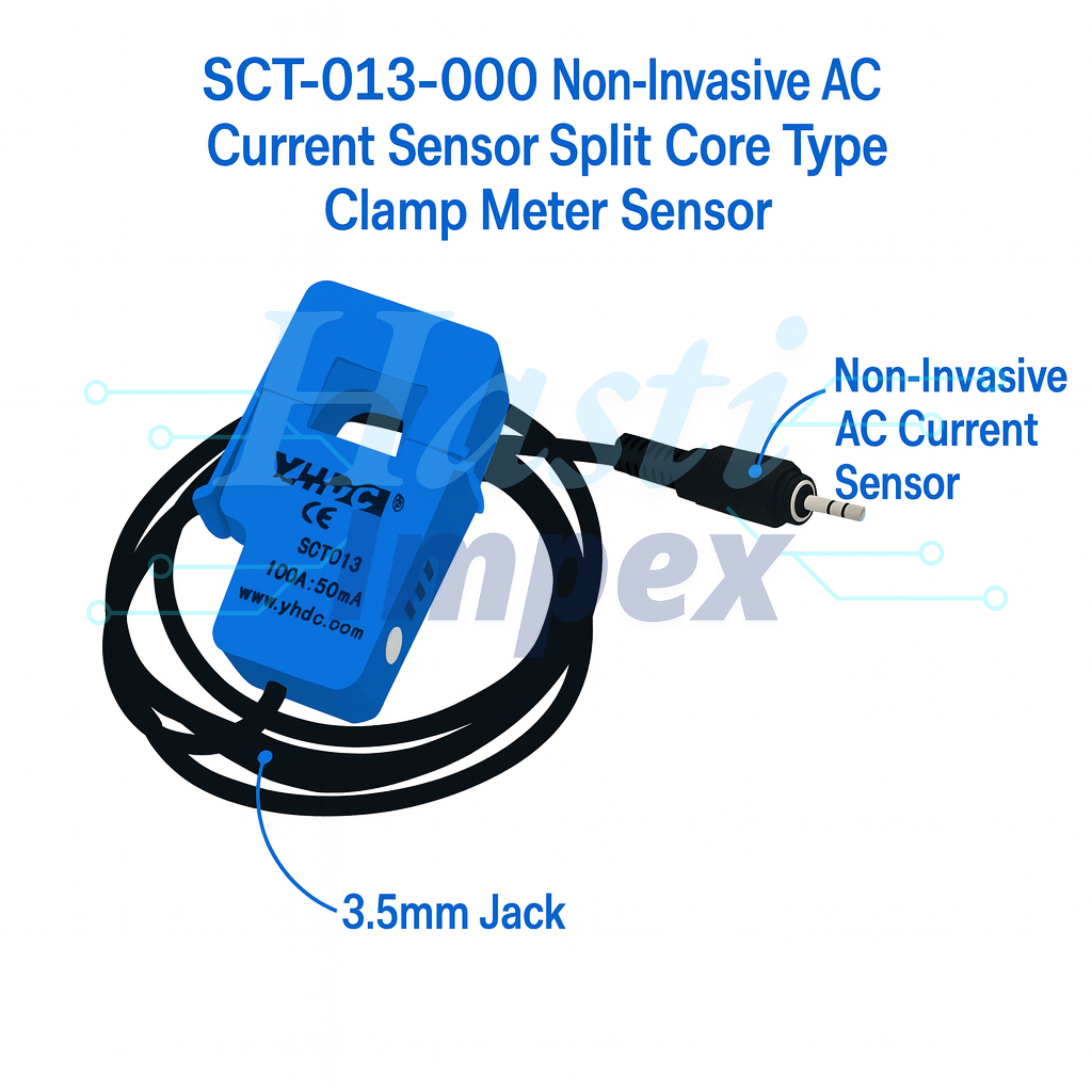

The SCT-013-000 is a split-core current transformer (CT) sensor designed for measuring alternating current (AC) in a non-invasive manner. It is often used in energy monitoring applications, such as in smart homes, industrial monitoring systems, and for educational purposes. Here's a detailed overview of its use and description:

Description

• Type: Split-Core Current Transformer
• Model: SCT-013-000
• Maximum Current: 100A
• Output: Typically provides a current or voltage signal proportional to the measured current
• Core Type: Split-core, allowing it to be clamped around a live conductor without interrupting the circuit
• Output Termination: Generally terminated with a 3.5mm jack or screw terminals

Features

1. Non-Invasive Measurement:

   • The split-core design allows the sensor to be clamped around the live wire of the circuit to be measured without disconnecting it.

2. High Accuracy:

   • Provides accurate current measurements, suitable for various applications from low to high current monitoring.

3. Ease of Installation:

   • Quick and easy to install due to its split-core design, making it convenient for both temporary and permanent setups.

4. Safety:

   • As it does not require direct electrical contact with the conductor, it ensures safer operation especially for high-current circuits.

5. Versatility:

   • Can be used with different types of loads, including residential, commercial, and industrial electrical circuits.

Use

1. Energy Monitoring:

   • Ideal for monitoring household energy consumption, tracking the usage of individual appliances, or monitoring industrial equipment.

2. Smart Home Systems:

   • Integrated into home automation systems to provide real-time data on power consumption and help in optimizing energy usage.

3. Educational Purposes:

   • Used in educational setups for teaching students about electrical currents, transformers, and energy monitoring systems.

Technical Specifications

• Primary Current Range: 0-100A AC
• Output Signal: Typically provides an analog signal proportional to the current. For SCT-013-000, it is often a current output.
• Accuracy: Class 1.0 (typically ±1%)
• Operating Temperature: -25°C to +70°C
• Dielectric Strength: 6000V AC/1min
• Dimensions: Varies, but generally compact and easy to handle

Installation

1. Preparation:

   • Identify the live wire or the wire you wish to measure.
   • Ensure the sensor is suitable for the current range expected.

2. Clamping:

   • Open the split-core clamp and place it around the conductor.
   • Ensure it is securely closed and locked in place.

3. Connection:

   • Connect the output leads to the monitoring device or data acquisition system.
   • Typically, the output can be connected to a microcontroller, data logger, or an energy meter with the appropriate input interface.

4. Calibration:

   • Calibrate the system as required, ensuring that the readings match the actual current flow.

5. Monitoring:

   • Start monitoring the current. The sensor will provide a proportional output signal which can be read and interpreted by the connected device.

Applications

• Residential:
  • Monitoring household appliances, air conditioning units, and overall energy consumption.
• Commercial:
  • Used in commercial buildings for monitoring HVAC systems, lighting circuits, and other electrical systems.
• Industrial:
  • Monitoring heavy machinery, motor loads, and industrial process equipment for performance and energy consumption.

Example Use Case

Suppose you want to monitor the current usage of an air conditioning unit in your home. You would:

1. Locate the live wire supplying power to the air conditioning unit.
2. Open the SCT-013-000 split-core sensor and clamp it around this wire.
3. Connect the output of the sensor to a data logging device or a microcontroller with an analog input.
4. Start monitoring the current usage in real-time to determine the energy consumption and identify any inefficiencies or abnormal usage patterns.

Overall, the SCT-013-000 current sensor provides a reliable and convenient way to monitor AC currents in a variety of settings without the need for invasive installation techniques.
