Capacitor Touch Dimmer Constant Voltage LED Stepless Dimming PWM Control Board
Description:
Capacitor Touch Dimmer Constant Voltage LED Stepless Dimming PWM Control Board is a versatile and highly efficient dimming control solution designed for LED lighting applications. This dimmer board allows for precise and smooth brightness adjustment in constant voltage LED systems, making it ideal for a wide range of lighting setups in both residential and commercial environments. The board uses capacitive touch technology for easy and convenient control, allowing users to adjust the brightness of connected LEDs by simply touching the sensor area, without the need for traditional mechanical switches.
Features:
1. Capacitive Touch Control
2. Stepless Dimming (PWM Control)
3. Constant Voltage Support
4. Efficient and Smooth Operation
5. Wide Compatibility
6. Minimalistic and Elegant Design
7. Easy Installation
8. Safe and Reliable
9. Durability

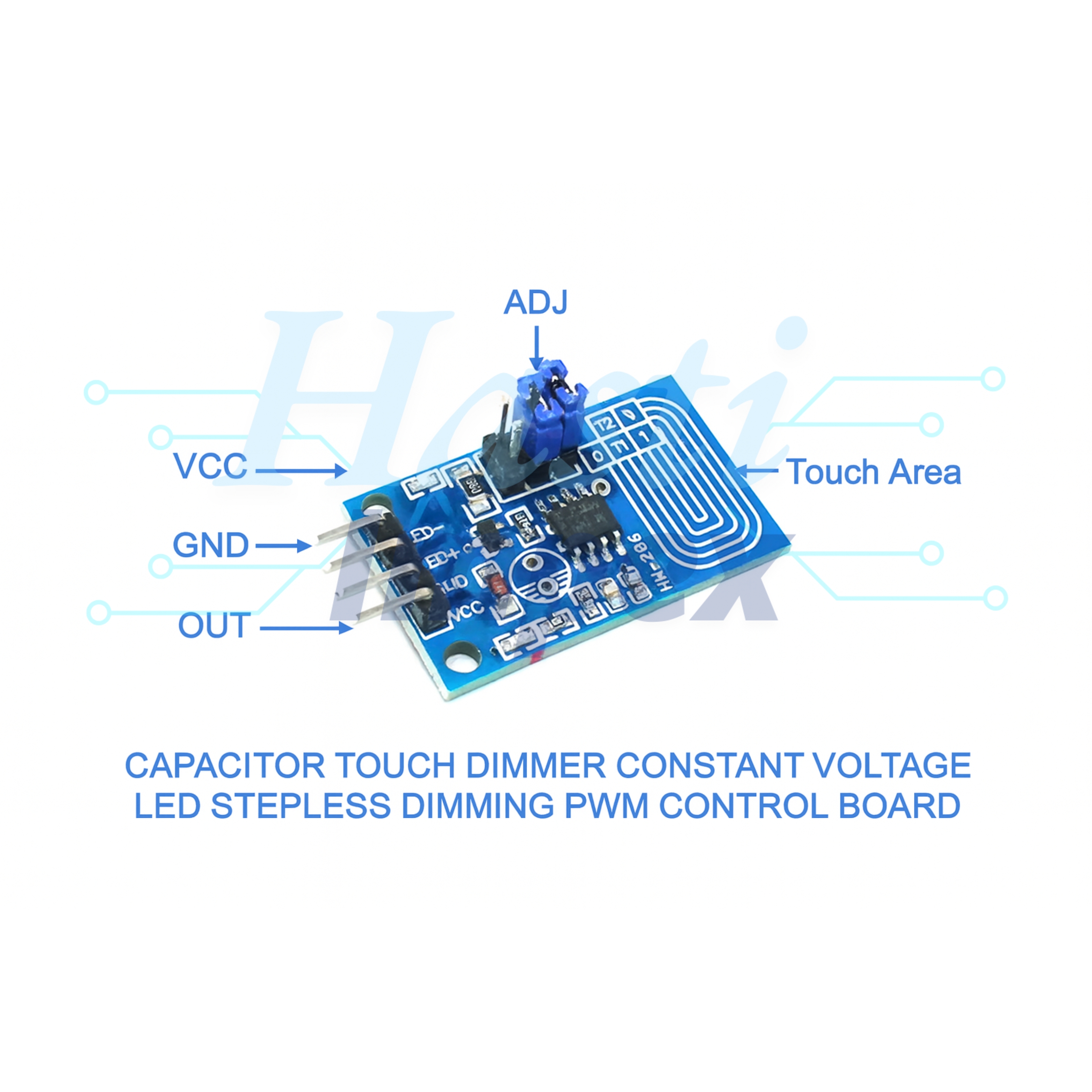

Diagram:
Specifications:
| Operating Voltage | 12V to 24V DC |
| PWM Frequency | 1kHz to 5kHz |
| Output Current | Up to 10A ( |
| Dimming Method | PWM |
| Touch Sensor Type | Capacitive Touch |
| Max LED Power | 120W to 240W |
| Dimming Range | 0% to 100% |
| Output Type | Constant Voltage |
| Protection Features | Overcurrent, Overvoltage, Thermal Protection |
| Material | PCB + Electronic Components |
| Operating Temperature | -20°C to +60°C |
| Size | Approx. 50mm x 50mm x 20mm |
