ZMCT103C 5A Range Single-Phase AC Current Transformer Sensor Module
Description:

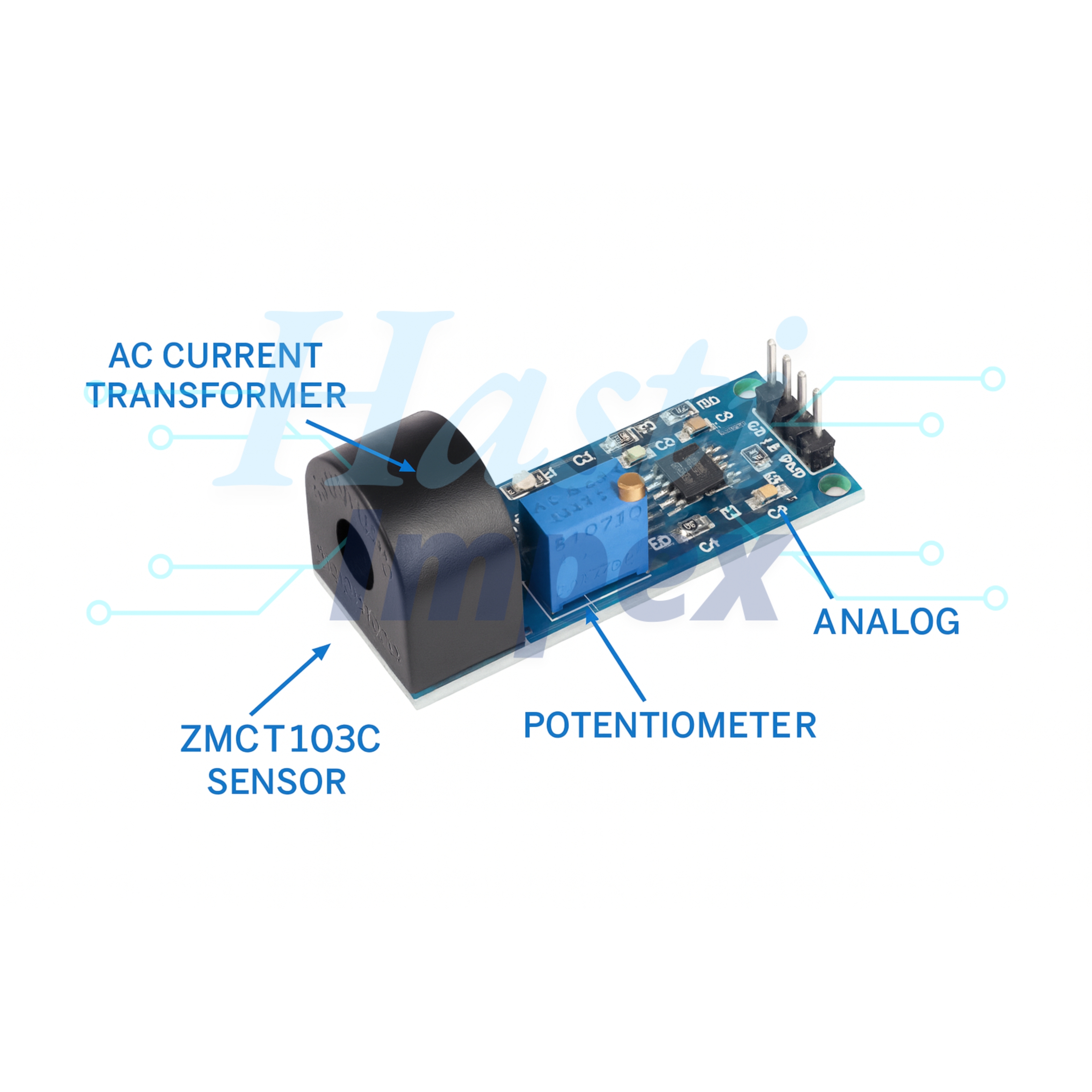

The ZMCT103C 5A Range Single-Phase AC Current Transformer Sensor Module is a component used for measuring alternating current (AC) in electrical circuits. Here's a description of its components and functionality:
-

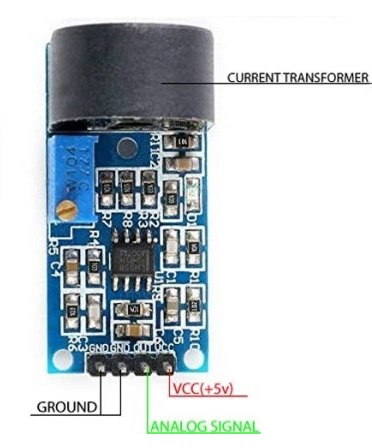

Current Transformer (CT): The module contains a current transformer, which is a type of electrical transformer designed to produce an output current proportional to the AC current flowing through a primary conductor. The ZMCT103C has a 5A nominal current range, meaning it is designed to measure currents up to 5 amps.
-
Sensing Coil: The current transformer includes a sensing coil that is wound around the primary conductor carrying the AC current to be measured. The alternating magnetic field generated by the primary current induces a current in the sensing coil, which is proportional to the primary current.
-
Output Signal: The module provides an output signal that is proportional to the AC current being measured. This output signal can be connected to an analog input of a microcontroller or other measurement device for further processing and analysis.
-
Voltage Output: The ZMCT103C module typically provides a voltage output proportional to the measured current. The voltage output is usually scaled to provide a convenient range for measurement, such as 0-5 volts or 0-3.3 volts, depending on the application.
-
Zero-Flux Detection: The module may include zero-flux detection circuitry to ensure accurate current measurement by compensating for variations in the magnetic field when the primary current is zero. This helps eliminate offset errors and improves the accuracy of the measurement.
-
Isolation: Some versions of the module may include isolation circuitry to provide electrical isolation between the primary current-carrying conductor and the measurement circuit. This isolation helps improve safety and reduces the risk of electrical shock or damage to sensitive equipment.
-
Applications: The ZMCT103C module is commonly used in energy monitoring systems, power quality analyzers, smart meters, and other applications where measurement of AC current is required. It enables real-time monitoring of electrical consumption, load profiling, and power management in single-phase AC circuits.
In summary, the ZMCT103C 5A Range Single-Phase AC Current Transformer Sensor Module is a versatile component that provides a convenient and accurate solution for measuring AC current in electrical circuits. Its compact size, wide dynamic range, and voltage output make it suitable for various monitoring and measurement applications in industrial, commercial, and residential settings.
