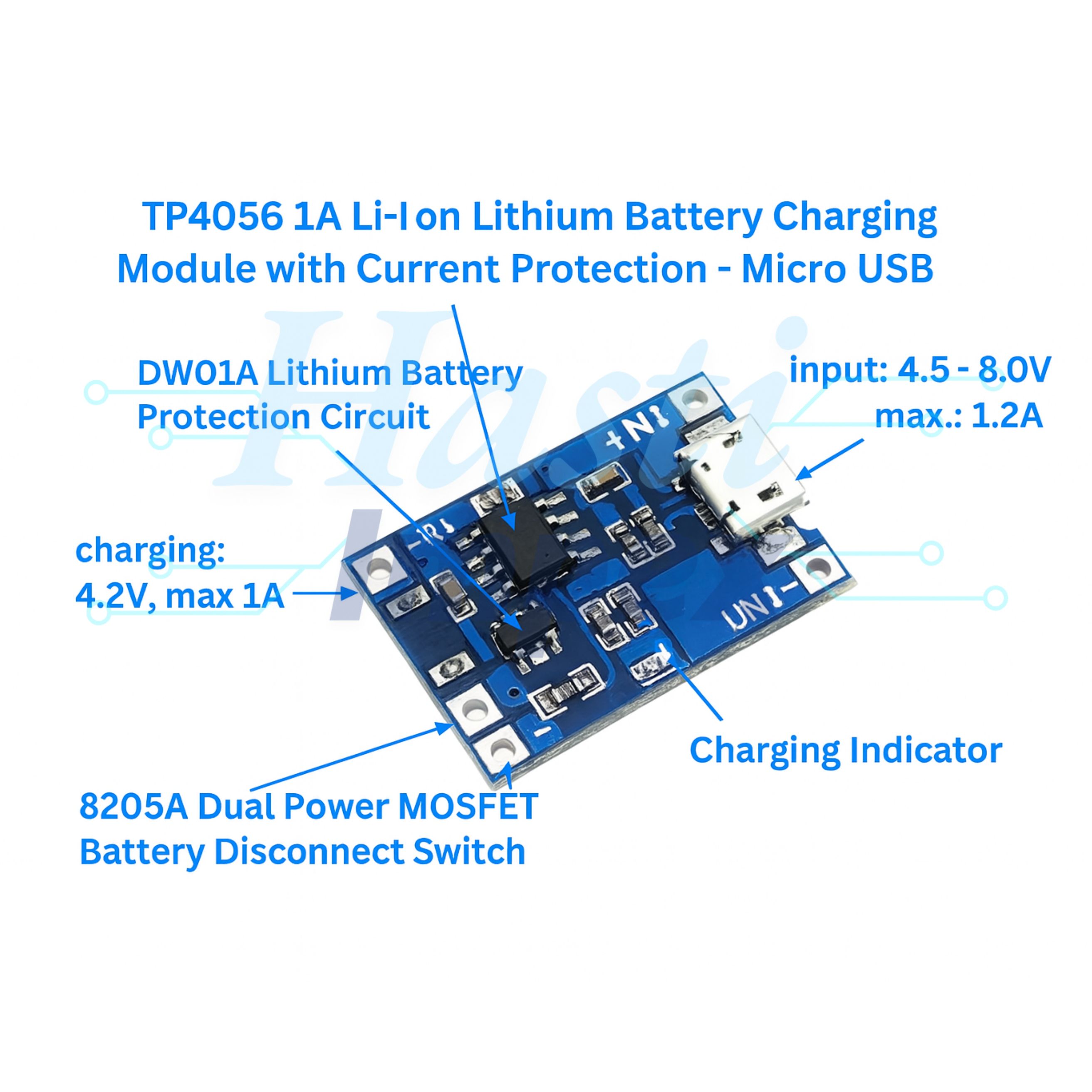

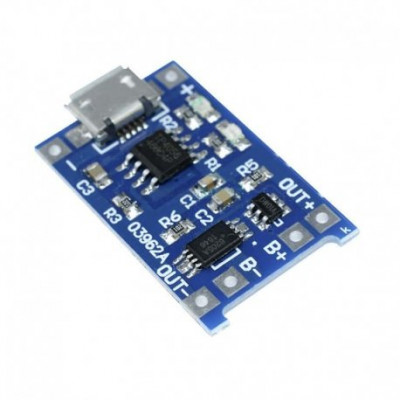

TP4056 1A Li-Ion Lithium Battery charging Module with Current Protection - Micro USB
Description:
ChatGPT

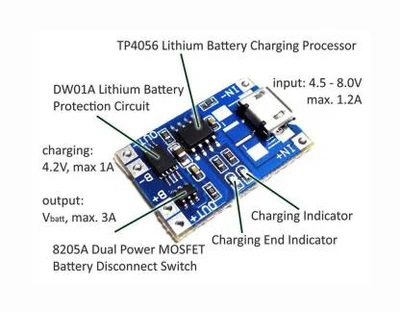

The TP4056 is a popular lithium-ion battery charging module designed for charging single-cell lithium-ion or lithium polymer batteries. Here's a brief description of its features:
-
Charging Capability: The TP4056 module is capable of charging lithium-ion batteries with a maximum charging current of 1A. This means it can charge batteries with capacities up to 1000mAh at a 1C rate (where C is the capacity of the battery in amp-hours).
-
Micro USB Input: The module features a Micro USB port for power input. This allows you to power the module using a standard Micro USB cable, making it convenient to connect to various power sources such as USB chargers, power banks, or computer USB ports.
-
Charging Indicator: Typically, the TP4056 module includes one or more LEDs to indicate the charging status. These LEDs usually illuminate during charging and may change color or blink to indicate different states such as charging, full charge, or fault conditions.
-
Current Protection: The TP4056 module incorporates current protection features to prevent overcharging and over-discharging of the battery. It monitors the charging current and voltage to ensure safe charging and to protect the battery from damage.
-
Compact Size: The module is often compact and easy to integrate into various projects or battery-powered devices. Its small size makes it suitable for applications where space is limited.
-
Protection Circuitry: Besides current protection, the TP4056 module may include additional protection circuitry such as over-temperature protection and reverse polarity protection to safeguard both the battery and the charging module itself.
Overall, the TP4056 module is widely used in DIY electronics projects, portable devices, and small battery-powered applications due to its simplicity, affordability, and reliability in charging lithium-ion batteries safely and efficiently.
