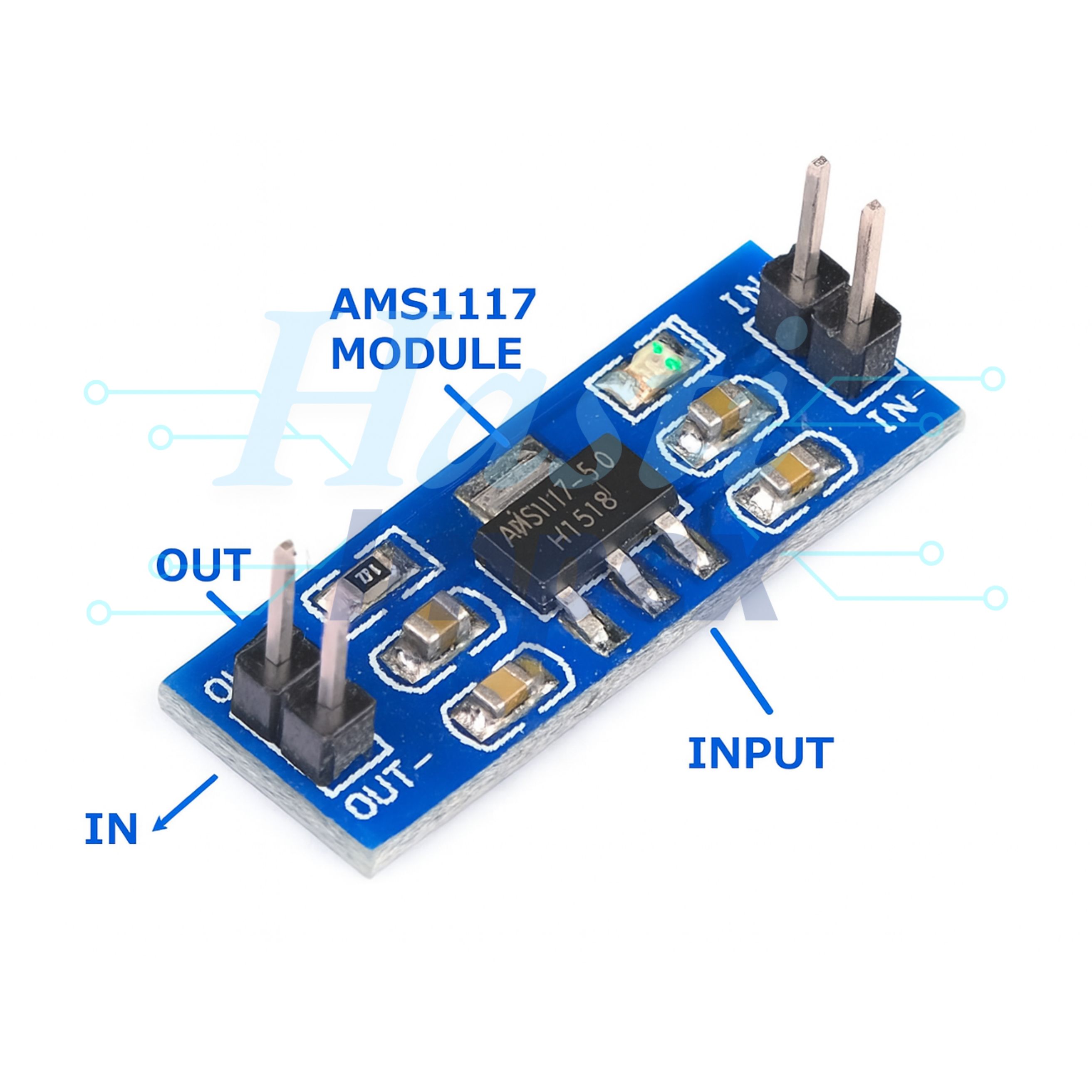

AMS1117 5V Step Down Power Supply Module
Description:
The AMS1117 is a commonly used voltage regulator IC that provides a fixed voltage output. The "5V Step Down Power Supply Module" likely refers to a pre-built module utilizing the AMS1117 IC to generate a stable 5V output voltage from a higher input voltage. Here's a description of its use and features:
-
Voltage Regulation: The primary function of the AMS1117 IC is to regulate the input voltage to a fixed output voltage of 5V. This is particularly useful when you have a power source with a voltage higher than 5V and need to power devices that require a stable 5V supply.
-
Step-Down Operation: The term "step-down" indicates that this module is designed to lower the input voltage to the desired output voltage. It's also known as a buck converter or voltage regulator.
-
Input Voltage Range: The AMS1117 can typically accept input voltages higher than 5V, but it's important to check the specific module's datasheet or documentation for the recommended input voltage range. Exceeding the maximum input voltage could damage the module.
-
Output Current: The module's capability to supply current at 5V will depend on the specific design and the heat dissipation capabilities of the module. It's essential to ensure that the module can provide sufficient current for your application.
-
Stability and Regulation: The AMS1117 provides good stability and regulation, meaning that even with fluctuations in the input voltage or changes in load, the output voltage remains close to 5V.
-
Protection Features: Some modules may include protection features such as overcurrent protection, over-temperature protection, and reverse polarity protection to safeguard the circuit and connected devices from damage.
-
Input and Output Connectors: The module typically has input and output connectors or solder pads where you can connect the input power source and the devices requiring a 5V supply.
-
Heat Dissipation: Depending on the input voltage, output current, and ambient temperature, the module may generate heat. Adequate heat sinking or ventilation might be necessary to ensure reliable operation, especially for high current applications.
-
Applications: The AMS1117 5V Step Down Power Supply Module finds applications in various electronic projects where a stable 5V power source is required, such as powering microcontrollers, sensors, displays, and other digital and analog circuits.
When using the module, it's essential to adhere to the manufacturer's guidelines and specifications to ensure proper operation and reliability. Additionally, understanding basic concepts of voltage regulation and power supply design can be beneficial for effectively utilizing the module in your projects.
