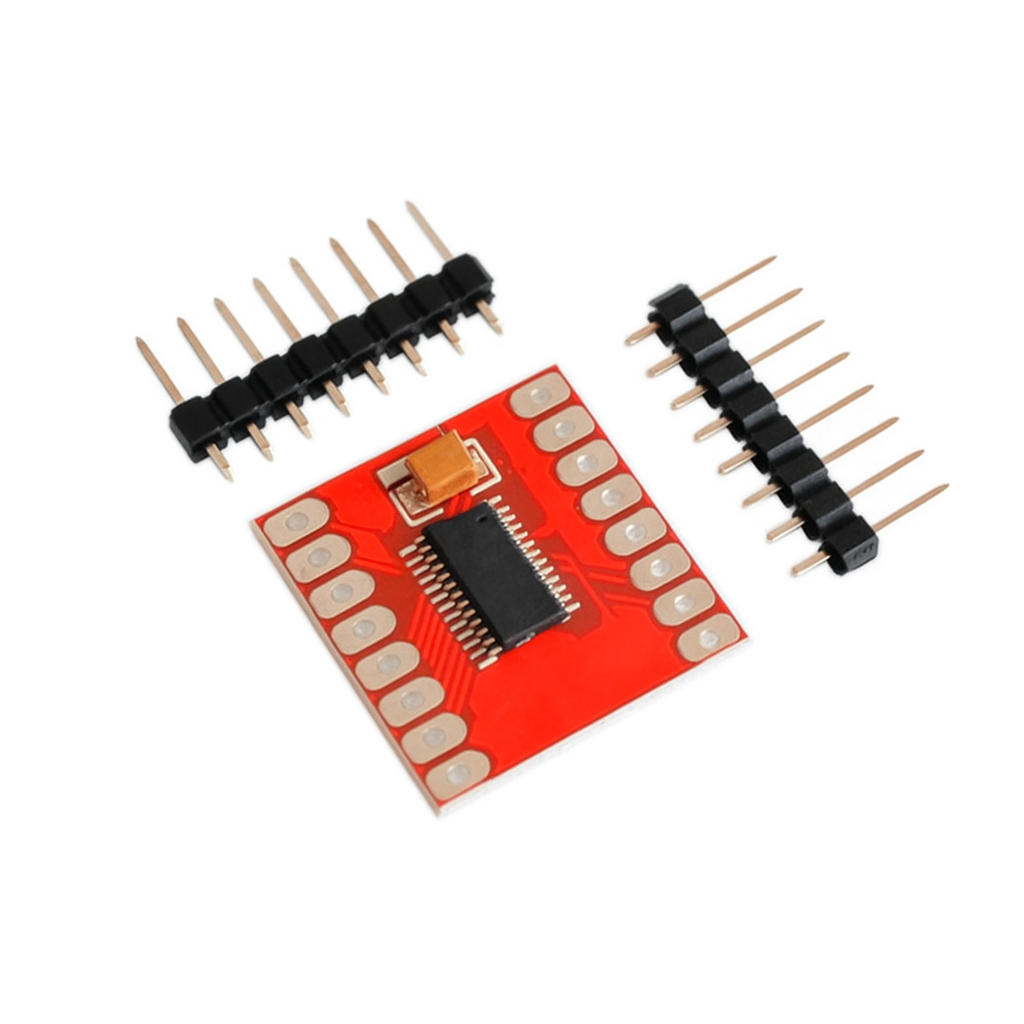

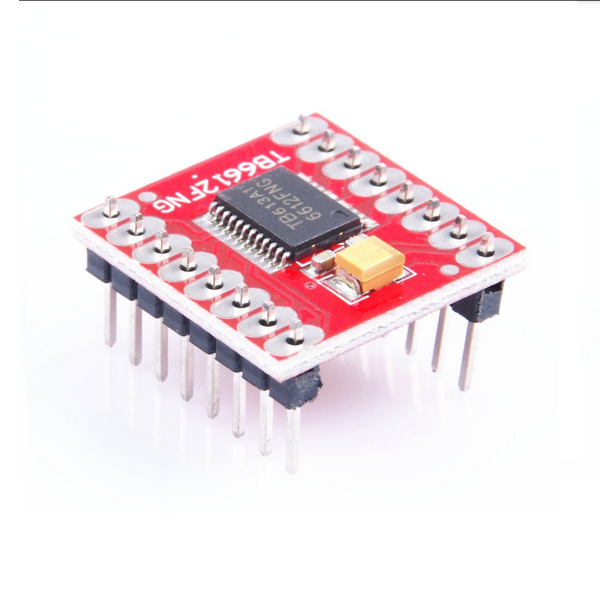

TB6612FNG Dual Motor Driver Module 1A for Arduino
Description:
TB6612FNG Dual Motor Driver Module is a compact and efficient motor driver module designed to control two DC motors or one bipolar stepper motor. It is commonly used in Arduino-based robotics projects and other embedded applications where precise control of motors is necessary. This module is capable of driving motors with a voltage range from 4.5V to 13.5V and can supply up to 1A of continuous current per channel, making it suitable for low to medium power motor control tasks.
Features:
1. Dual Motor Control
2. Voltage Range
3. Current Capacity
4. Low Power Consumption
5. Built-in Protection
6. PWM Speed Control
7. Direction Control
8. Logic Voltage
9. Compact Design
10. Heat Sink for Thermal Management

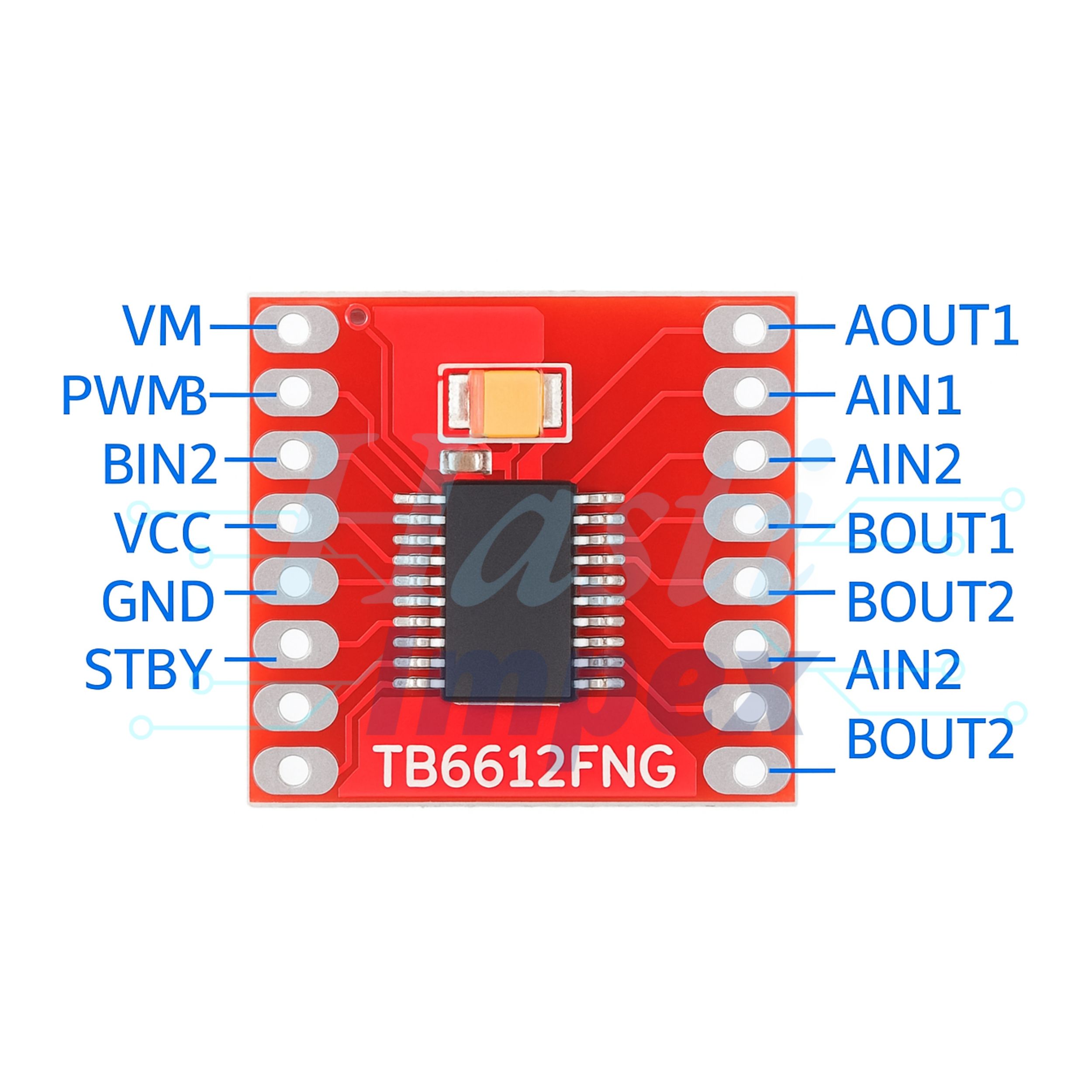

Diagram:
Specifications:
| Motor Channels | 2 Channels |
| Motor Power Supply (VM) | 4.5V to 13.5V |
| Current per Channel | 1A |
| Logic Power Supply (VCC) | 3.3V to 5V |
| Frequency Range | 25kHz |
| Dimensions | 43mm x 43mm |
| Direction Pins | 2 pins |
| Operating Temperature | -40°C to +85°C, |
| Motor Power (VM) | 4.5V to 13.5V |
