Hall Effect Sensor Module
Description:
Hall Effect Sensor Module is an essential component used in various applications such as magnetic field detection, current sensing, speed measurement, and position detection in electronic circuits. The Hall Effect refers to the phenomenon where a magnetic field causes a voltage difference (the Hall voltage) to develop across an electrical conductor or semiconductor that is perpendicular to both the current and the magnetic field. Hall Effect sensors capitalize on this principle to detect magnetic fields and convert them into electrical signals.
Features:
1. Magnetic Field Detection
2. Digital or Analog Output
3. Integrated Circuit (IC):
4. Wide Voltage Range:
5. Low Power Consumption:
6. Polarity Detection:
7. Sensitivity Adjustment:
8. Simple Interface:

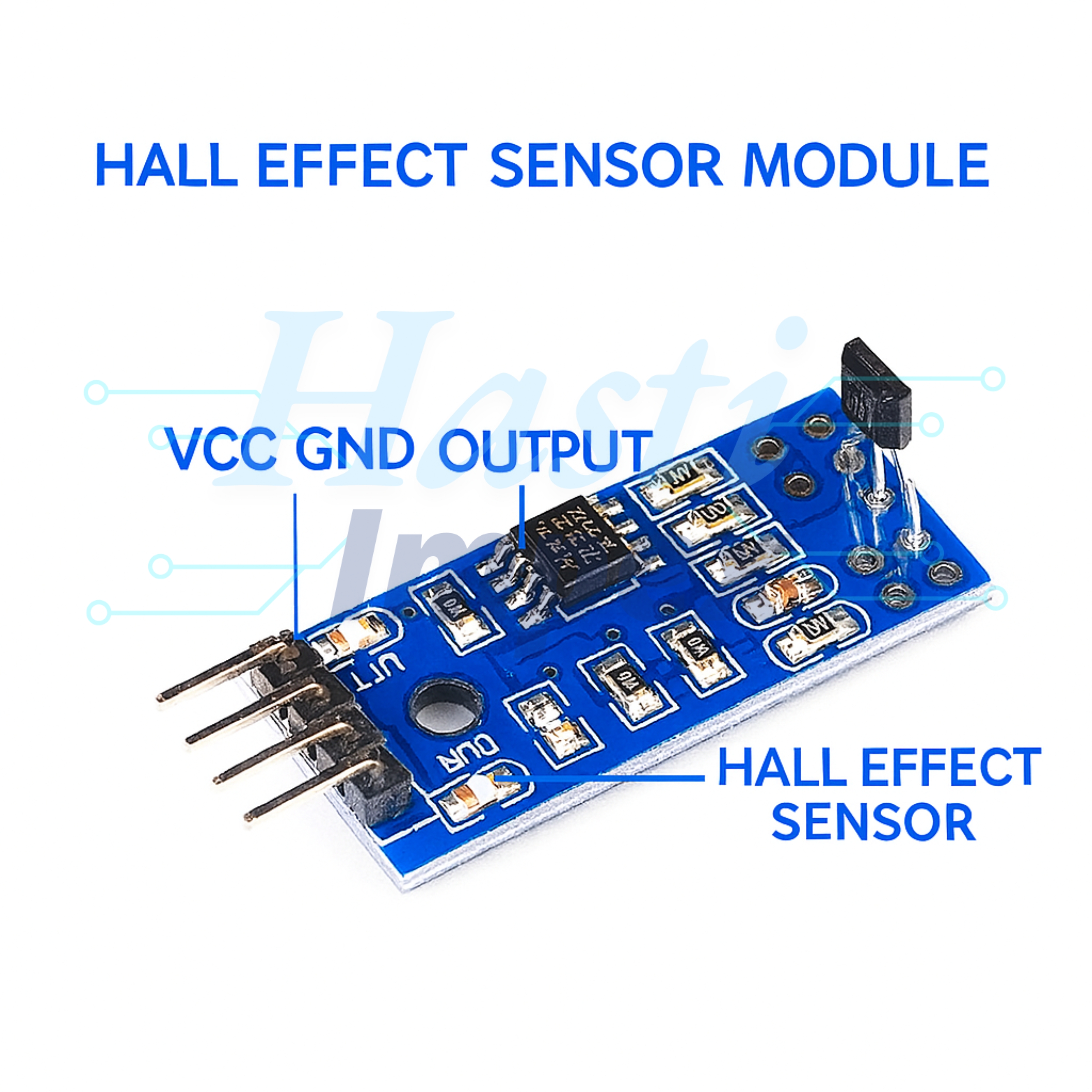

Diagram:
Specifications:
| Supply Voltage | 3.3V to 5V |
| Current Consumption | <10 mA |
| Detection Range | ±30 Gauss |
| Output Logic Level | 5V/0V or 3.3V/0V |
| Operating Temperature: | -40°C to +85°C |
| Response Time | <1ms |
| Size | 25mm x 10mm |
