12V-40V 10A DC Motor PWM Speed Control Switch Governor
Description:
12V-40V 10A DC Motor PWM Speed Control Switch Governor is a device used to control the speed of a DC motor by regulating the power supplied to the motor. PWM stands for Pulse Width Modulation, which is a technique used to vary the average voltage that is supplied to the motor by rapidly turning the power on and off at a fixed frequency. By adjusting the duration of the "on" state (known as the pulse width), the device controls how much power the motor receives, effectively controlling its speed.
Features:
1. Voltage Range
2. Current Capacity
3. PWM Control
4. Speed Control
5. Reversing Capability (Optional)
6. Heat Dissipation
7. Applications

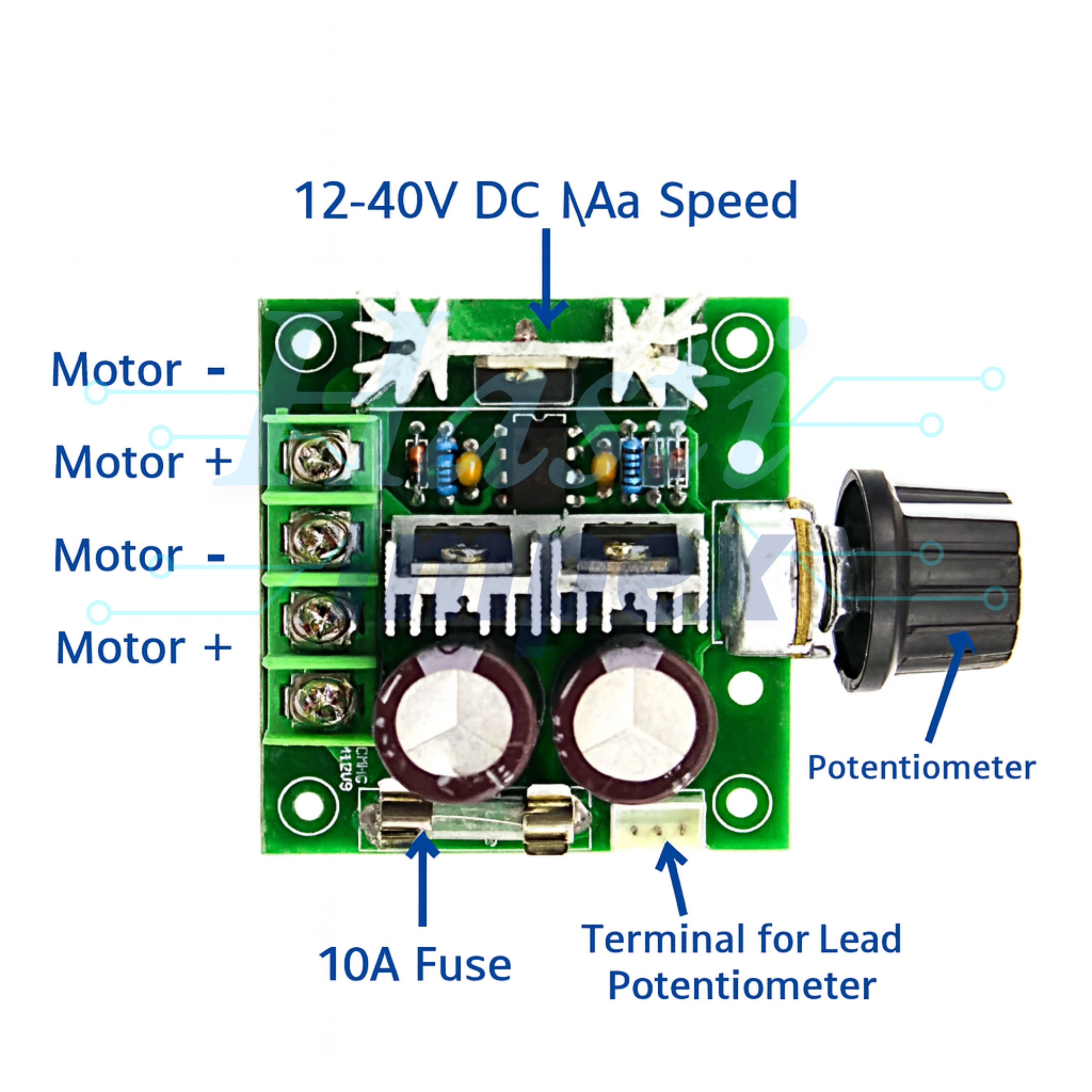

Diagram:
Specifications:
| Input Voltage | 12V to 40V DC |
| Current Rating | 10A Maximum Current |
| PWM Frequency | 25 kHz to 30 kHz |
| Duty Cycle Range | 0% to 100% |
| Input Power | DC input terminals |
| Operating Temperature Range | -20°C to 50°C |
| Potentiometer (Analog) | PWM input |
| Dimensions | 10 cm x 7 cm x 5 cm |
