XY-016 2A DC-DC Step Up 5V 9V 12V 28V Power Module with Micro USB
Description:
XY-016 2A DC-DC Step Up Power Module is a versatile and efficient solution for powering devices that require a higher output voltage than what is provided by the input power source. Designed with a Micro USB input, this module can take low-voltage DC power (such as from a 3.7V Li-ion battery, 5V USB, or other low-voltage sources) and step it up to a higher voltage. It supports multiple output voltages of 5V, 9V, 12V, and 28V, providing flexibility to power a wide range of electronic devices, from Arduino and Raspberry Pi boards to LED strips, motors, and more.
Features:
1. Multiple Output Voltages
2. DC-DC Step Up Conversion
3. Output Current Up to 2A
4. Micro USB Input
5. Compact and Lightweight Design
6. Efficient Power Conversion
7. Adjustable Output Voltage
8. Overload and Short Circuit Protection
9. Wide Application Range

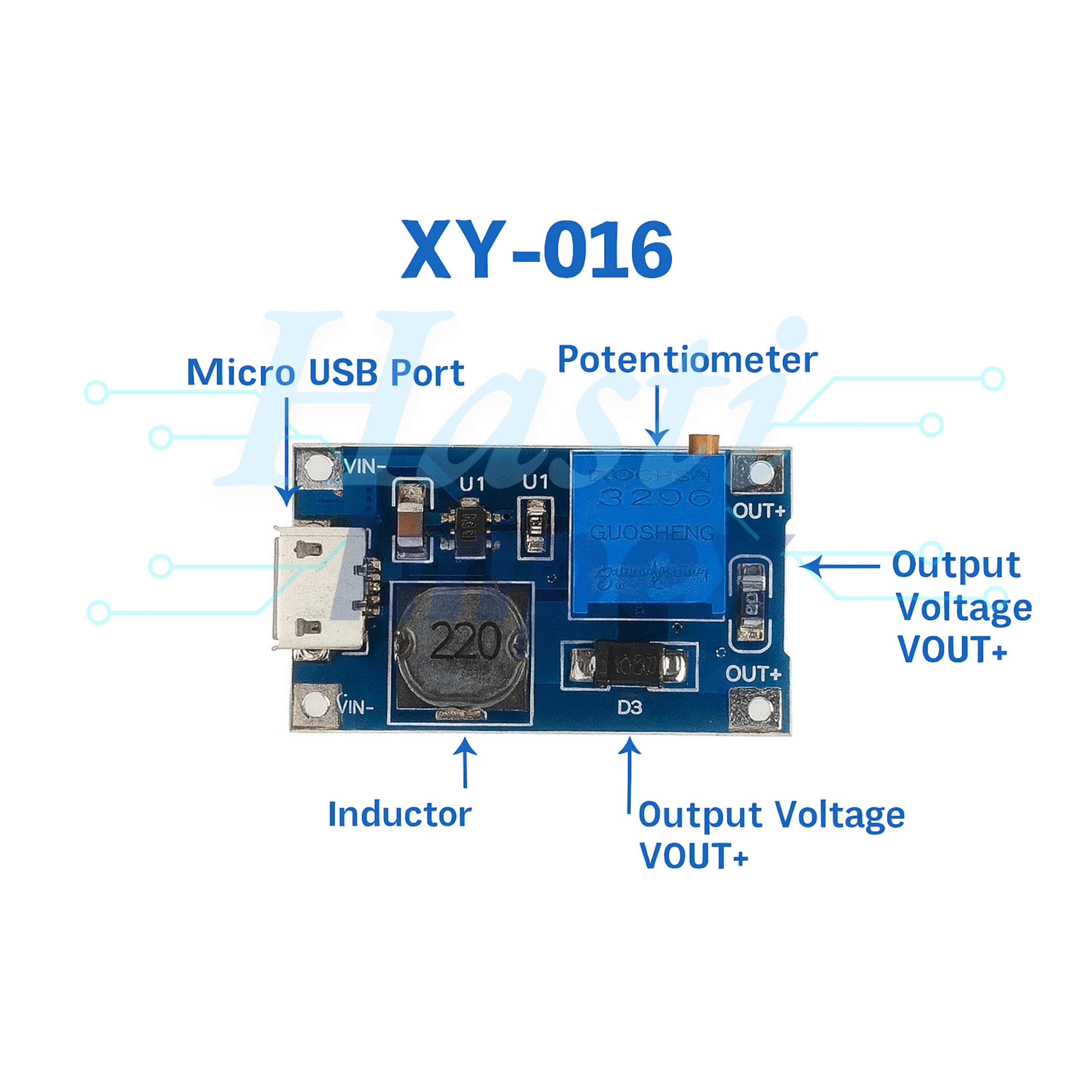

Diagram:
Specifications:
| Micro USB | 5V DC |
| Output Voltages | 5V, 9V, 12V, 28V |
| Maximum Output Current | 2A |
| Power Efficiency | Up to 85% |
| Conversion Type | DC-DC Boost Converter |
| Input Interface | Micro USB |
| Operating Temperature | 0°C to 40°C |
| Dimensions | 50mm x 30mm x 15mm |
