XY-DJ DC 6-40V LED Battery Charger Discharger Board Under Over Voltage Protection Module
Description:
The XY-DJ DC 6-40V LED Battery Charger Discharger Board with Under Over Voltage Protection Module is a device designed to charge and discharge batteries while providing protection against both overvoltage and undervoltage conditions. Here's how to use and understand this module:
-
Input Voltage Range:
- The module typically accepts DC input voltages in the range of 6V to 40V. Ensure that your power source falls within this range.
-
Charging and Discharging Functionality:
- The module is equipped with both charging and discharging circuits, allowing you to charge batteries when the input voltage is higher than the battery voltage and discharge them when the input voltage is lower than the battery voltage.
- Connect the positive and negative terminals of your battery to the corresponding terminals on the module. Make sure to observe correct polarity.
-
LED Display:
- The module often features an LED display that shows important information such as the input voltage, output voltage, charging or discharging status, and any error conditions.
- Monitor the LED display to ensure that the module is functioning correctly and to keep track of the charging or discharging process.
-
Under Over Voltage Protection:
- The module includes protection mechanisms to safeguard batteries against both undervoltage (when the battery voltage drops too low) and overvoltage (when the battery voltage rises too high) conditions.
- These protections help prevent damage to the battery and ensure safe operation. If an overvoltage or undervoltage condition is detected, the module may stop charging or discharging and trigger an alarm or indication on the LED display.
-
Adjustment and Configuration:
- Some modules may offer adjustments or configuration options, such as setting the desired charging or discharging voltage levels.
- Refer to the module's documentation or markings to understand how to adjust these settings properly.
-

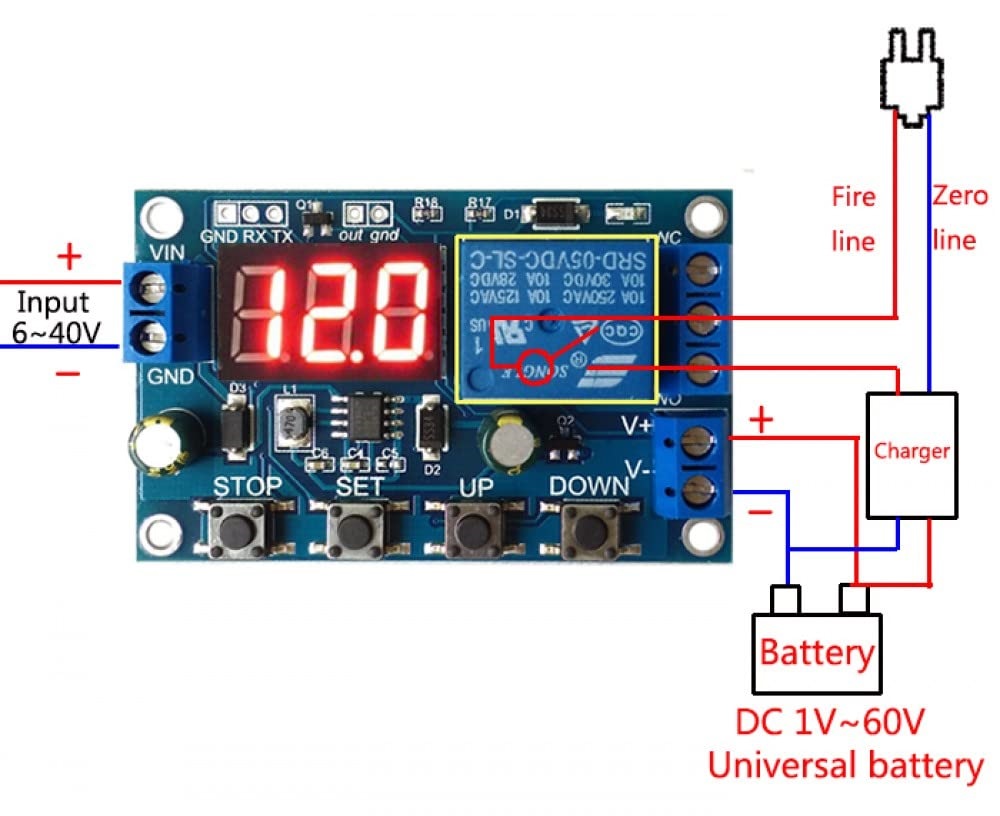

Wiring and Connections:
- Connect your power source to the input terminals of the module and your battery to the output terminals.
- Ensure correct polarity during connections to prevent damage to the module or connected components.
-
Safety Considerations:
- Always follow safety guidelines when working with batteries and electrical circuits.
- Avoid short circuits and ensure proper insulation and connection integrity.
-
Testing and Monitoring:
- Test the module under different conditions to ensure proper operation.
- Monitor the charging or discharging process regularly to detect any abnormalities.
By understanding and following these usage instructions, you can effectively utilize the XY-DJ DC 6-40V LED Battery Charger Discharger Board with Under Over Voltage Protection Module to charge and discharge batteries safely and efficiently.
