Description:

The 1800W 40A DC to DC Adjustable Constant Voltage and Current Power Supply Module is a versatile and powerful device designed to provide a stable DC output with adjustable voltage and current settings. This type of power supply is commonly used in various applications, including battery charging, LED drivers, test equipment, and other electronic projects requiring precise voltage and current control.

Key Features

1. High Power Output:
   • Provides up to 1800W of power.
2. High Current Capacity:
   • Capable of delivering up to 40A of current.
3. Adjustable Voltage and Current:
   • Output voltage and current are adjustable, allowing for precise control over the output.
4. Wide Input Voltage Range:
   • Typically operates with an input voltage range of 10V to 60V DC.
5. Constant Voltage (CV) and Constant Current (CC) Modes:
   • Supports both constant voltage and constant current operation modes.
6. Efficiency:
   • Designed for high efficiency, often exceeding 90%, to reduce energy loss.
7. Protection Mechanisms:
   • Includes protections such as overcurrent, overvoltage, overtemperature, and short-circuit protection to ensure safe operation.

Usage

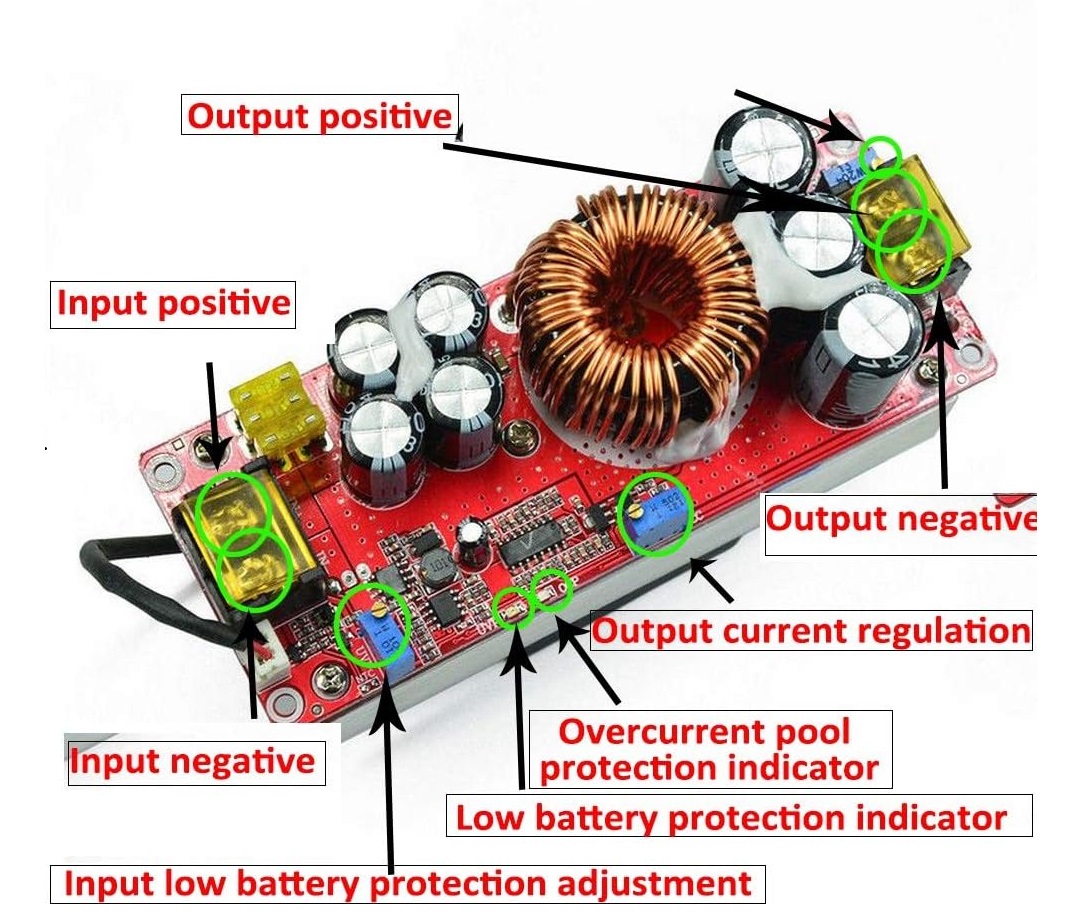

1. Wiring:

   • Input Connections: Connect the power source (such as a battery or power supply) to the input terminals of the module. Ensure the input voltage is within the specified range (10-60V DC).
   • Output Connections: Connect the load (device or circuit) to the output terminals of the module. Ensure the load's voltage and current requirements are compatible with the module's output specifications.

2. Power On:

   • Once the connections are secure, power on the system. The module should initialize and be ready to provide the set voltage and current.

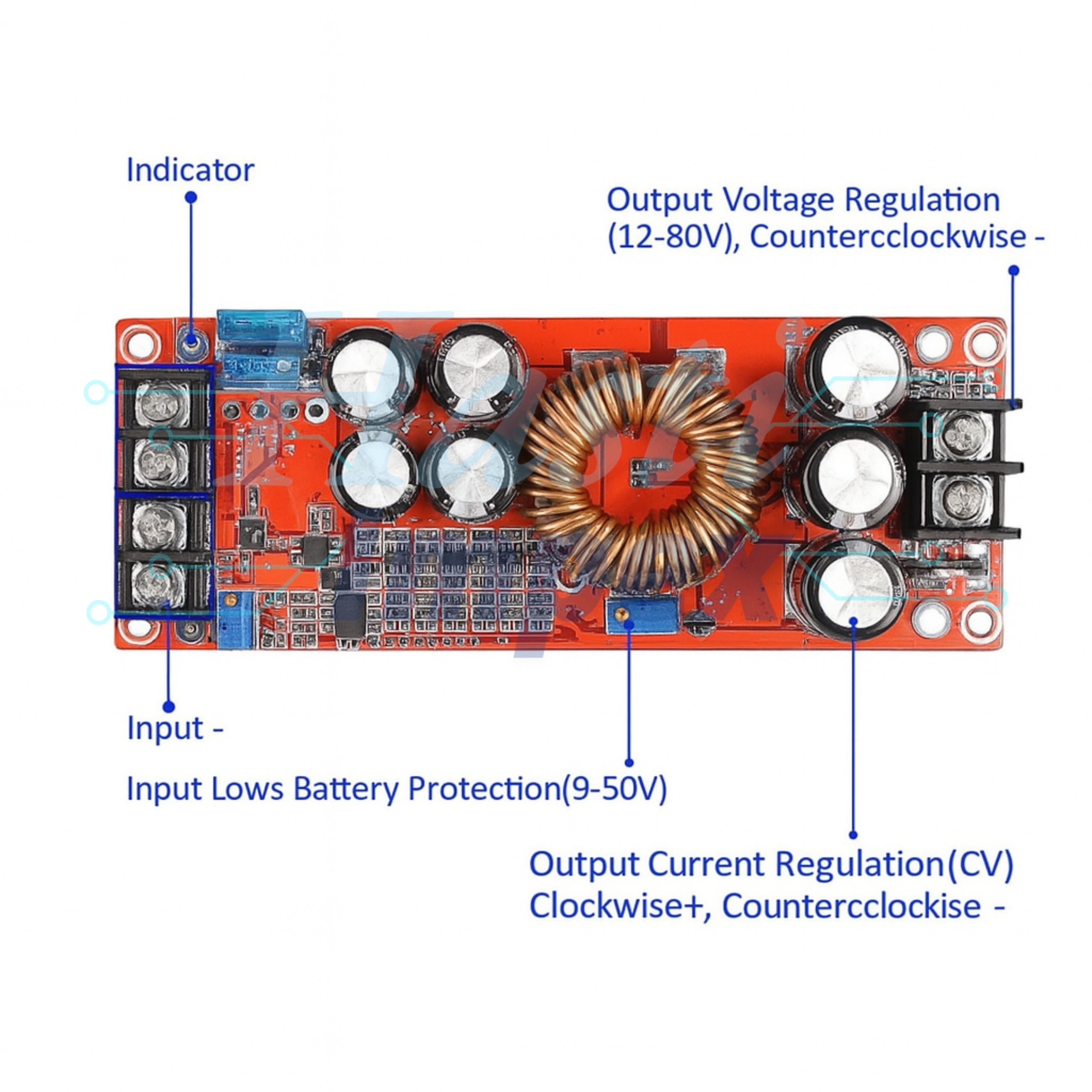

3. Adjusting Voltage and Current:

   • Use the provided potentiometers or control interface to adjust the output voltage and current to the desired levels. Typically, there are separate adjustments for voltage and current.
   • Setting Voltage: Adjust the voltage potentiometer to set the desired output voltage.
   • Setting Current: Adjust the current potentiometer to set the maximum output current. In constant current mode, the output will regulate to maintain this current limit.

4. Monitoring:

   • Monitor the module during operation to ensure it operates within safe limits. Check for stability in the output voltage and current, and ensure the module does not overheat.

Description

The 1800W 40A DC to DC Adjustable Constant Voltage and Current Power Supply Module is a high-performance device designed for applications requiring precise control over DC voltage and current. This module is particularly useful in scenarios where both the voltage and current need to be tightly regulated, such as in battery charging systems, laboratory power supplies, and industrial automation.

Safety Considerations

• Overcurrent Protection: Ensure the module has built-in overcurrent protection to prevent damage from excessive currents.
• Overvoltage Protection: Verify that the module includes overvoltage protection to safeguard the connected load.
• Overtemperature Protection: Make sure the module has adequate cooling and includes overtemperature protection to prevent overheating.
• Proper Ventilation: Install the module in a well-ventilated area to avoid heat buildup.
• Secure Connections: Ensure all electrical connections are secure and properly insulated to prevent short circuits and electrical hazards.

By following these guidelines, users can effectively utilize the 1800W 40A DC to DC Adjustable Constant Voltage and Current Power Supply Module for a wide range of applications, achieving reliable and efficient power delivery.
