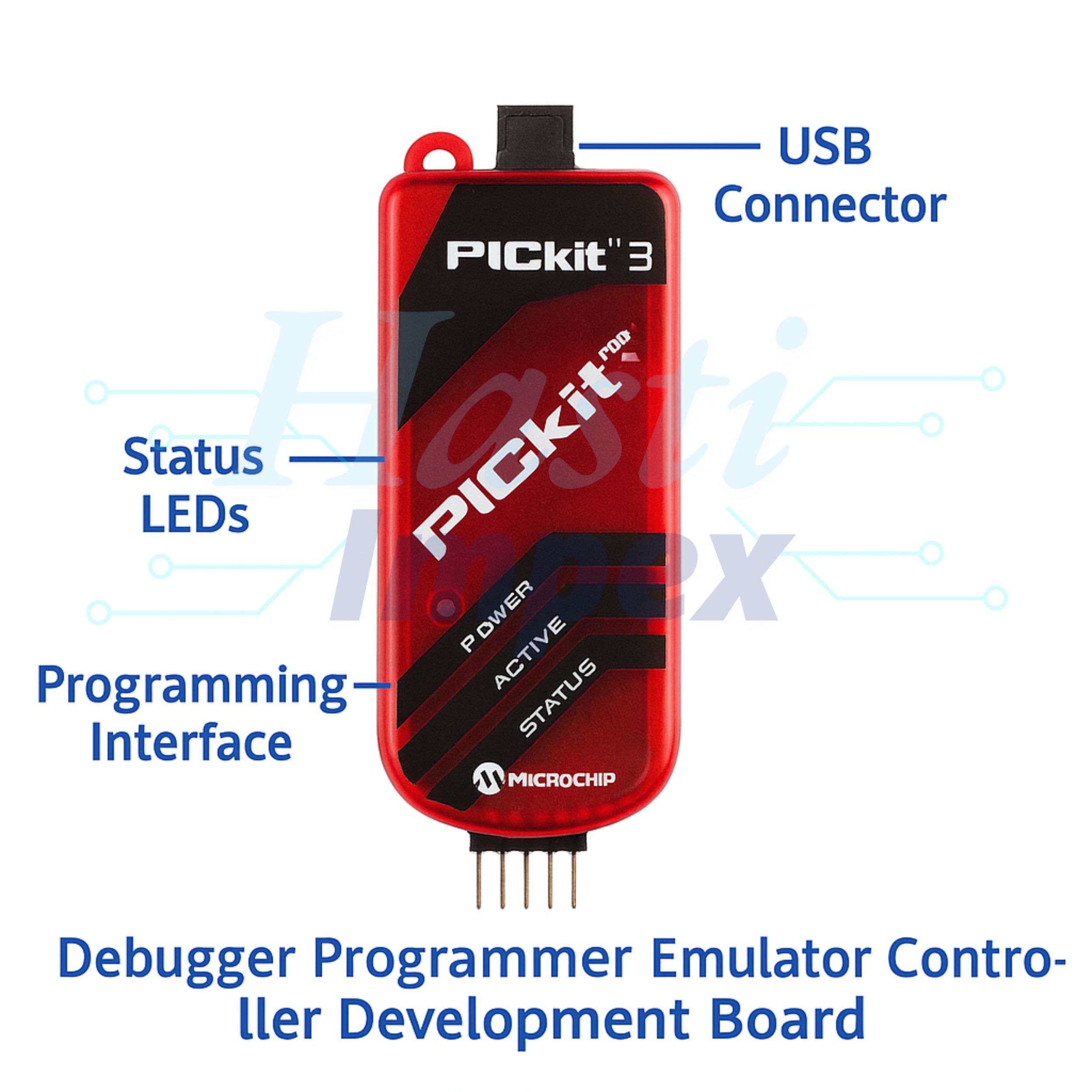

PICkit3 Debugger Programmer Emulator Controller Development Board
Description:
PICkit 3 Debugger, Programmer, Emulator Controller Development Board is a comprehensive, versatile tool designed for embedded systems development. Manufactured by Microchip Technology, it allows users to program, debug, and emulate microcontroller applications, particularly for the PIC, dsPIC, and PIC32 families. The PICkit 3 is essential for engineers, hobbyists, and developers who work with embedded systems and are seeking a cost-effective, high-performance solution for real-time debugging and programming.
PICkit 3 Debugger, Programmer, Emulator Controller Development Board is an indispensable tool for anyone working with Microchip PIC microcontrollers. Whether you're a beginner learning about embedded systems, a hobbyist building a project, or an experienced engineer developing complex embedded applications, the PICkit 3 offers a seamless, reliable, and cost-effective solution for programming, debugging, and emulation. With its wide compatibility, real-time debugging capabilities, and ease of use, the PICkit 3 significantly enhances the embedded development process, helping developers create robust and reliable products more efficiently.
Features:
1. In-Circuit Debugging (ICD) and In-Circuit Programming (ICP)
2. Wide Microcontroller Compatibility
3. Real-Time Debugging Features
4. High-Speed Programming
5. USB Connectivity
6. MPLAB X IDE and MPLAB IPE Integration
7. Flexible Power Options
8. Compact and Portable Design
9. Firmware Upgradeable
10. Overcurrent and Overvoltage Protection
11. Advanced Debugging Capabilities
12. Low Power Consumption
13. Support for Multiple Operating Systems
14. Device Programming Voltage Range
15. User-Friendly Interface

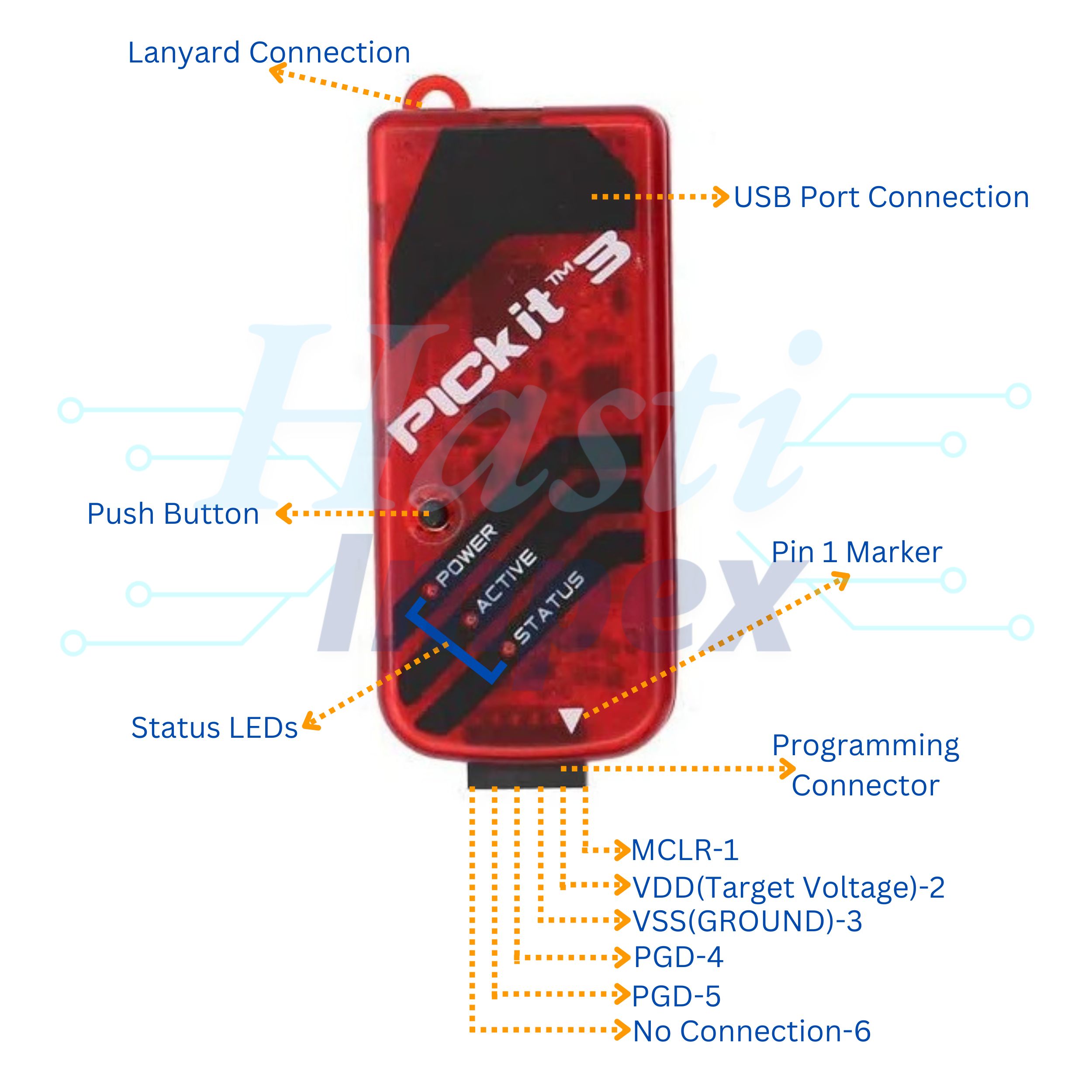

Diagram:
Specifications:
| Item Type | Debugger, Programmer |
| Voltage Rating (V) | 1.8 to 5 |
| Flash Memory | 512KB |
| Input Supply Voltage (V) | 1.8 ~ 5 |
| Flash Memory (Kbytes) | 512 |
| Length (mm) | 95 |
| Width (mm) | 40 |
| Height (mm) | 11.5 |
| Weight (g) | 30 |
