Description:

The MQ-3 alcohol gas sensor module is commonly used to detect the presence of alcohol vapor in the air. It's widely used in breathalyzers, alcohol detection devices, and various DIY projects. Here's a basic guide on how to use it:

1. Understanding the Sensor: The MQ-3 sensor works on the principle of a chemical reaction between the alcohol molecules and the sensor's electrodes, leading to a change in electrical conductivity. This change is then measured and interpreted as the presence of alcohol.

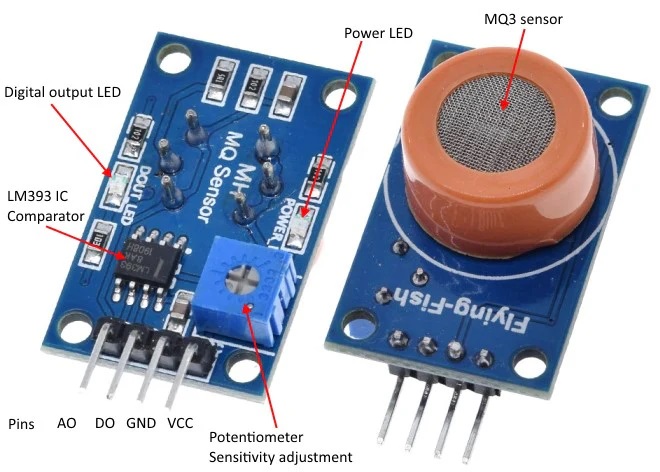

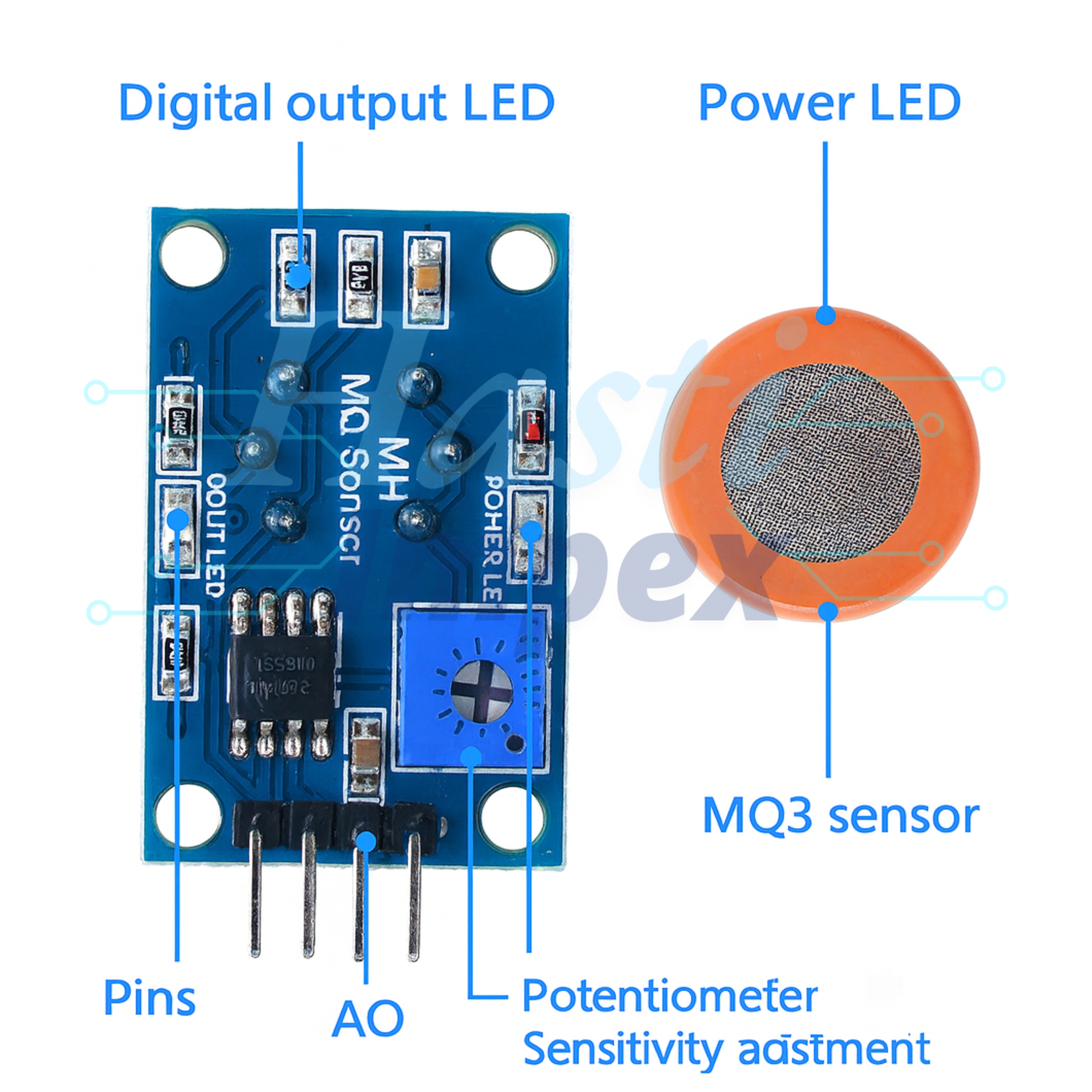

2. Connections: The MQ-3 sensor typically has four pins: VCC (power supply), GND (ground), AOUT (analog output), and DOUT (digital output). Connect VCC to a suitable power supply (usually 5V), GND to ground, and then either AOUT or DOUT depending on your preferred output type.

3. Calibration: Before use, the sensor often requires calibration. This involves exposing it to clean air for a certain period to establish a baseline reading. Calibration procedures may vary depending on the specific sensor and application, so refer to the manufacturer's instructions.

4. Powering Up: Once calibrated, apply power to the sensor module. It usually requires a warm-up time (usually a few minutes) for the sensor to stabilize and provide accurate readings.

5. Reading Output: If you've connected to the AOUT pin, you'll get an analog voltage output proportional to the alcohol concentration in the air. If you've connected to the DOUT pin, you'll get a digital signal that switches from low to high when the alcohol concentration exceeds a certain threshold.

6. Interpretation: Interpret the sensor output based on your project requirements. You may need to convert the analog voltage to a concentration value using a suitable calibration curve or simply monitor the digital output for threshold crossing.

7. Safety Considerations: Keep in mind that the MQ-3 sensor is sensitive to various gases, not just alcohol. Ensure proper ventilation and avoid exposure to potentially harmful substances during testing.

8. Integration: Depending on your project, you may need to integrate the sensor with a microcontroller (e.g., Arduino, Raspberry Pi) for data processing, display, or further action based on the detected alcohol concentration.
